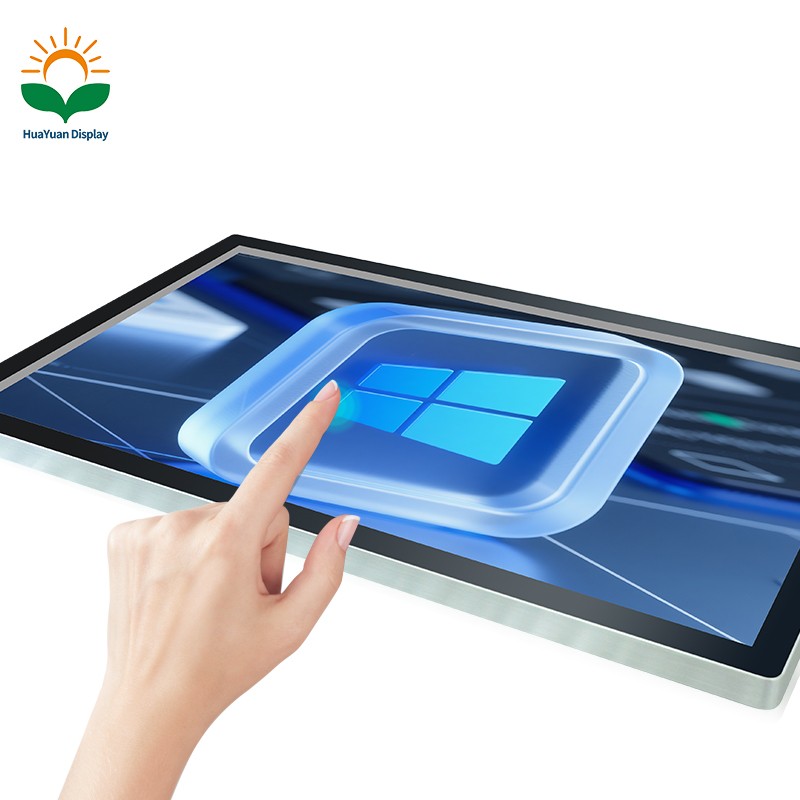

  • 32'' Windows Touch-screen Monitor CPU Intel I3/I5 RAM 4GB ROM 128GB Industrial Win 10 Touch Display
  • 32'' Windows Touch-screen Monitor CPU Intel I3/I5 RAM 4GB ROM 128GB Industrial Win 10 Touch Display
  • 32'' Windows Touch-screen Monitor CPU Intel I3/I5 RAM 4GB ROM 128GB Industrial Win 10 Touch Display
32'' Windows Touch-screen Monitor CPU Intel I3/I5 RAM 4GB ROM 128GB Industrial Win 10 Touch Display32'' Windows Touch-screen Monitor CPU Intel I3/I5 RAM 4GB ROM 128GB Industrial Win 10 Touch Display32'' Windows Touch-screen Monitor CPU Intel I3/I5 RAM 4GB ROM 128GB Industrial Win 10 Touch Display

32'' Windows Touch-screen Monitor CPU Intel I3/I5 RAM 4GB ROM 128GB Industrial Win 10 Touch Display

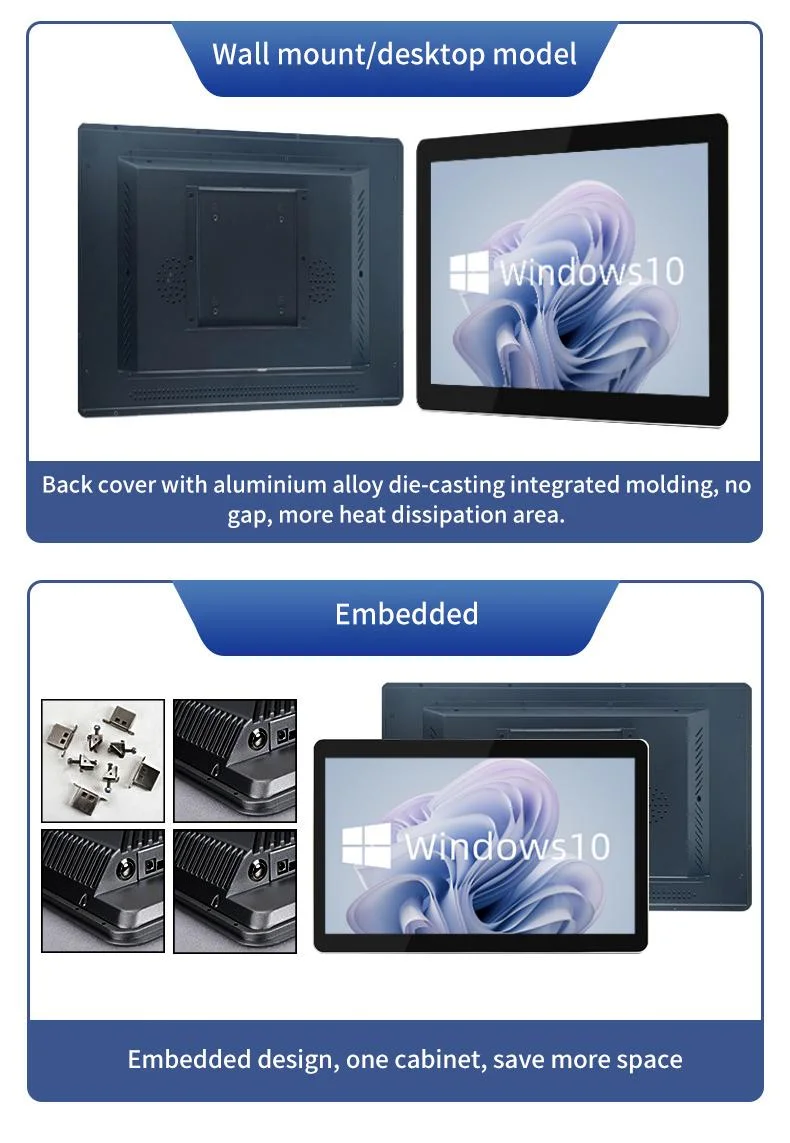

WINDOWS system industrial touch all-in-one computers are mostly suitable for automated high-end human-machine interface operating platforms. The casing is designed with an aluminum alloy/sheet metal structure. The front panel of the aluminum alloy industrial tablet computer uses a high-standard LCD screen and touch screen to fit seamlessly. It complies with IP65 dustproof and waterproof standards and has the advantages of low power consumption, high integration, good stability, complete communication I/O, easy installation, beautiful appearance, thin and light, and takes up little space. This product adopts panel embedded installation, making installation and maintenance very convenient.



Product feature

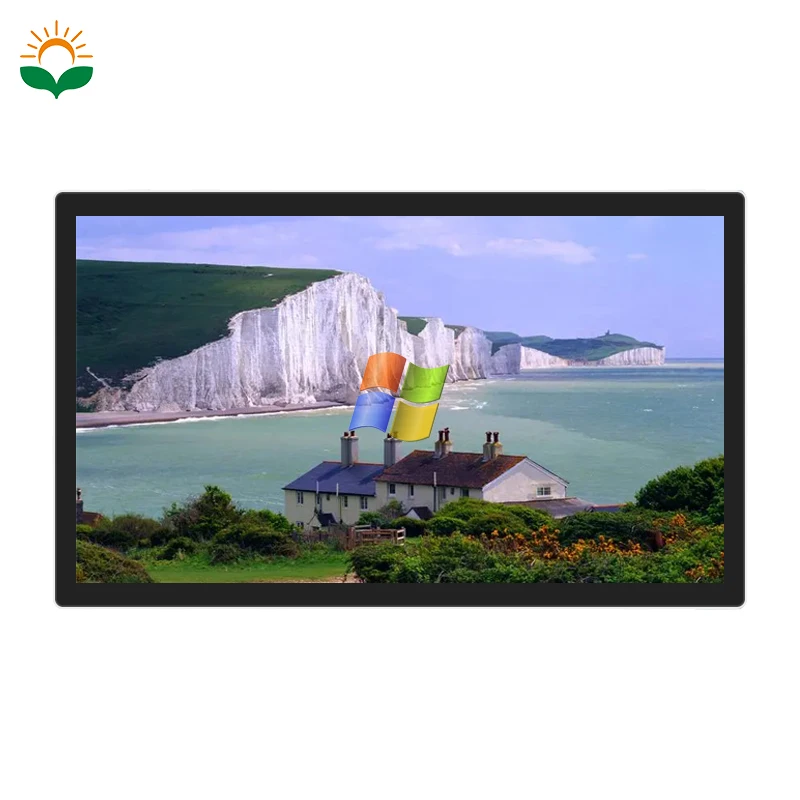

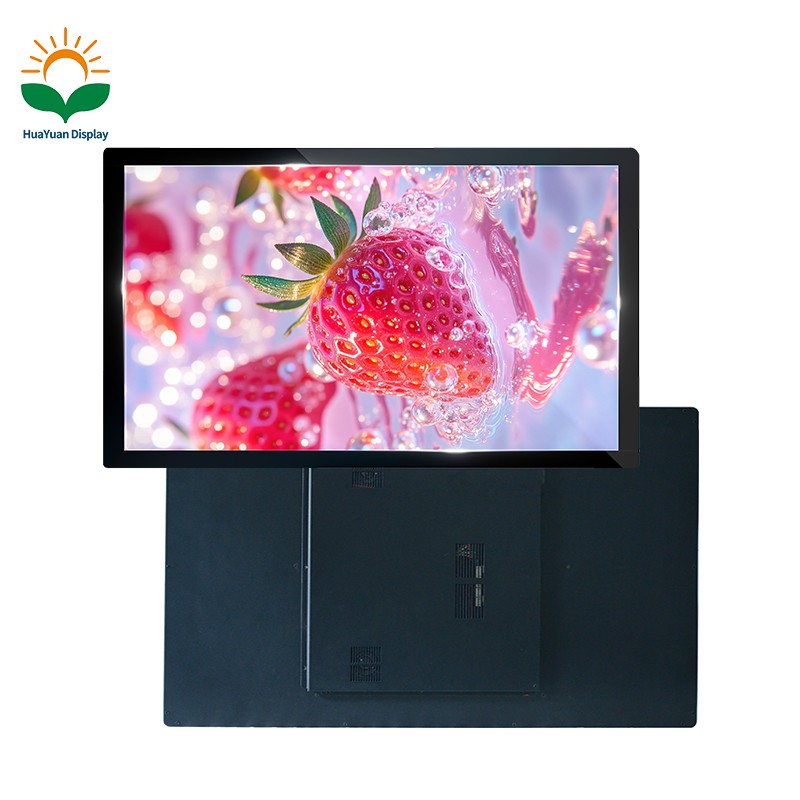

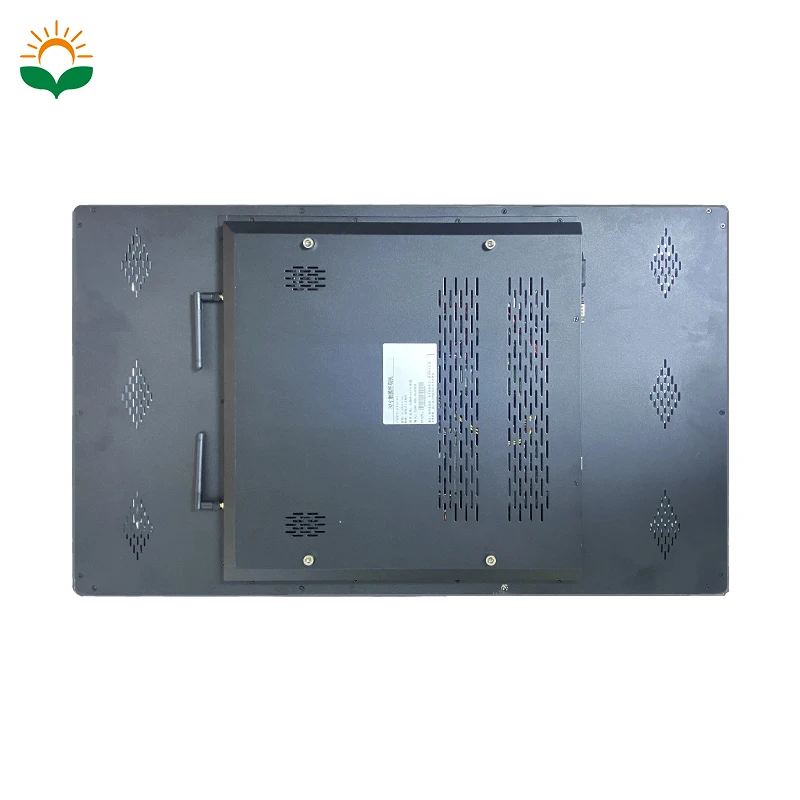

1, Overall product photos

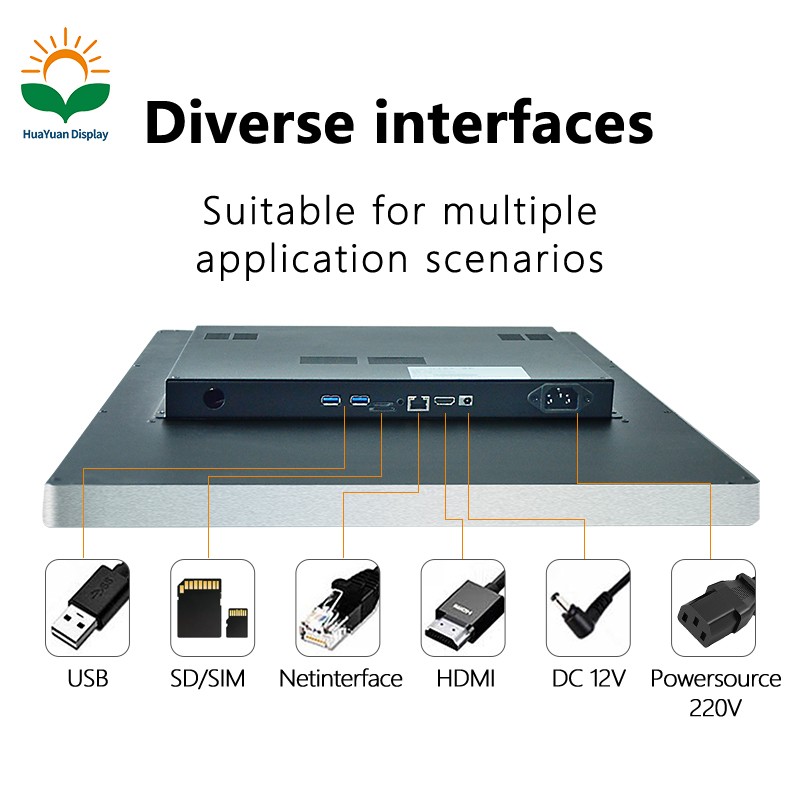

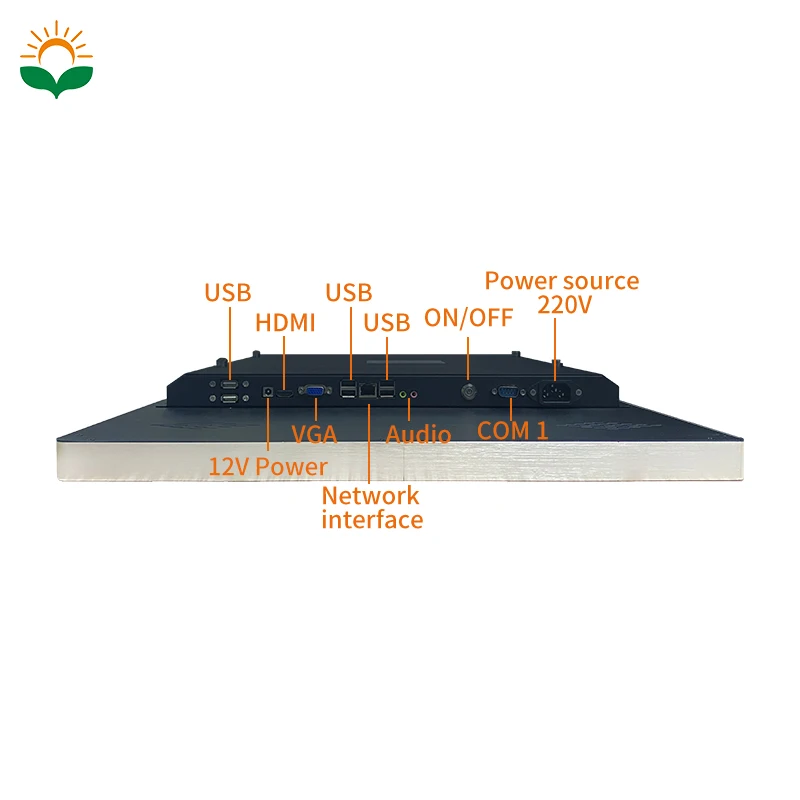

2, Product interface photos

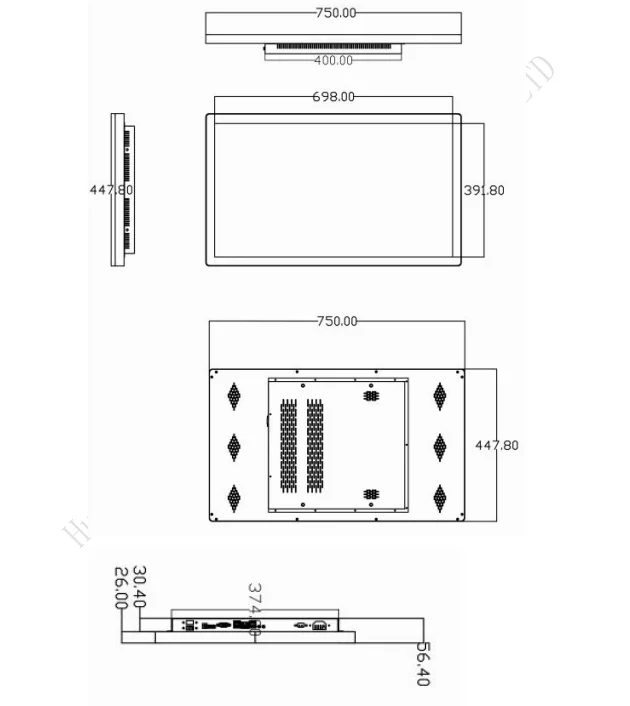

3, Product structure drawing



Product Parameters

Display parameters

Items Specs Marks
Size 32 inch Screen ratio 16:9
Resolution 1920*1080
Color Depth 16.7M
Display size 698*391.8mm
Brightness 300-600 nit The brightness can be adjustable
LCD lifetime 50000 Hrs LED
Viewing direction(CR>10) Wide viewing angle 85/85/85/85 (Typ.)
Touch Capacitive Touch 10 point touch
Input Handwriting or capacitive pen
Lifetime Single point touch ≥50 million times
Response time 8ms
Outline Dimensions 750*447.8mm



Hareware parameters

CPU Intel I3-2/I5-2/I7-2/I3-3/I5-3/I7-3
RAM 2GB/4GB/8GB DDR3
ROM 64GB/ 128GB/256GB/512GB
System Windows 10, Windows 8,Windows 7,Windows XP,Linux
Video

H.265, H.264 VP8, MAV , WMV , AVS , H.263 , MPEG4

1080P/2160P Multiple video decoding

Picture JPG BMP PNG rotate/slideshow/Picture Enlargement
Internet 4G, Ethernet,WIFI,Support peripheral expansion
Resolution 1080P
RTC time Yes
Time Switch Yes
System upgrade support SD card/laptop upgrade


Interface parameters

USB USB2.0*4, USB3.0*2
Power 220V
RJ45 1*Realtec8 111F Gigabit interface,network wake-up
VGA Standard DB15
HDMI HDMI output, max 1080p
Headphone Output 3.5mm standard interface
Serial COM1, RS232
DC Terminal 12-36V power supply
WIFI Standard WIFI, automatic connection




Reliability parameters

Working temperature -10°C~60°C
Storage temperature - 20°C~70°C
Relative humidity Humidity: 90%, Temperature:50℃
Vibration protection 10Hz-50Hz-10Hz Amplitude 1.5mm X,Y,Z each 3H
Product certification CCC/CE/FCC/EMC/CB/ROHS
Front waterproof rating The front panel can reach IP65 protected rating
