55 Inch HDMI Touch-screen Monitor 55'' All-in-one Machine for Display Purpose

Model No.:HYH550-A01
A standard 55-inch monitor with HDMI input. It can be used as a Raspberry Pi display with touch control. It can also be used as a computer monitor, TV box, PSP, or other standard HDMI output devices.


Product feature

1.Hardware resolution is 3840*2160.

2.Compatible with and can be directly plugged into most versions of Raspberry Pi.

3.Support Raspberry Pi OS / Ubuntu / Windows System.

4.Only used for display, does not occupy any I/O resources (using touch function, occupies I/O).

5.Support HDMI audio output (optional).



Product Parameters



Display parameters
Display size 55 inch
Resolution 3840*2160
Brightness 300 CD/M2
Backlight lifespan
(hours)

50000Hrs (LED backlight)
Display ratio 16:9
View direction  89/89/89/89



Touch

Tempered glass 3MM Explosion-proof tempered glass
Touching method Capacitive
Anti-glare Optional parameters, standard product - this function is "not available"
Touch point
count
10 point touch
Touch control
accuracy
2.5mm
anti-glar
Optional parameter, this function is "none" for standard products

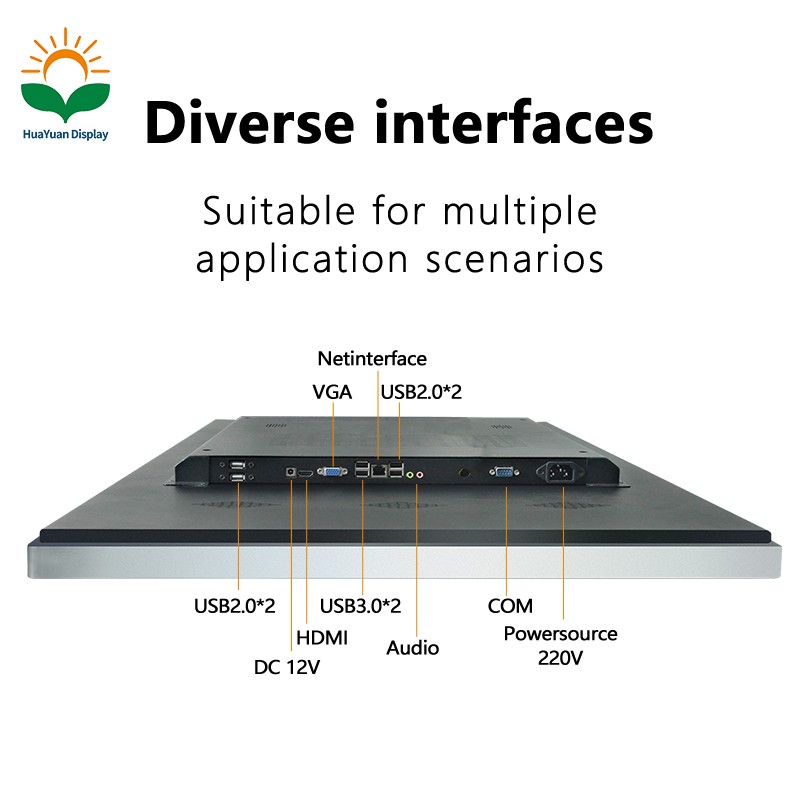

Interface Description

 HDMI HDMI in*1(Raspberry Pi OS /Ubuntu/ Windows system)
VGA VGA*1
USB USB*1
power supply AC-220V
 horn
Built-in 8 ohm 5W

Power port

AC220V/ 25W

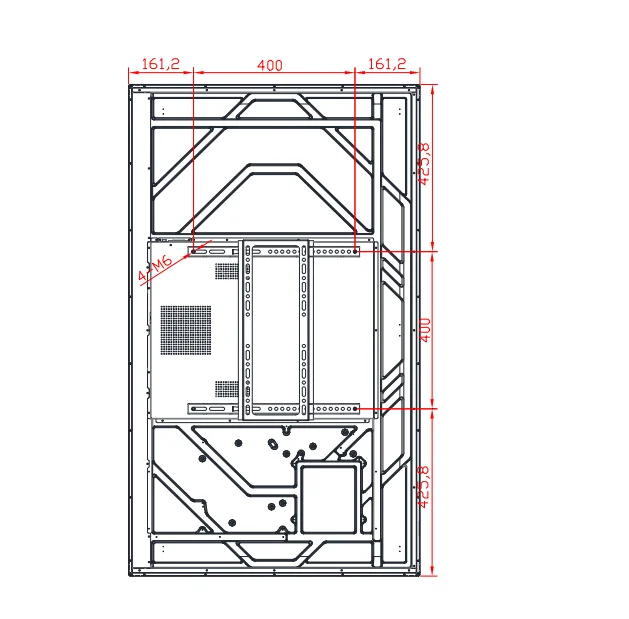

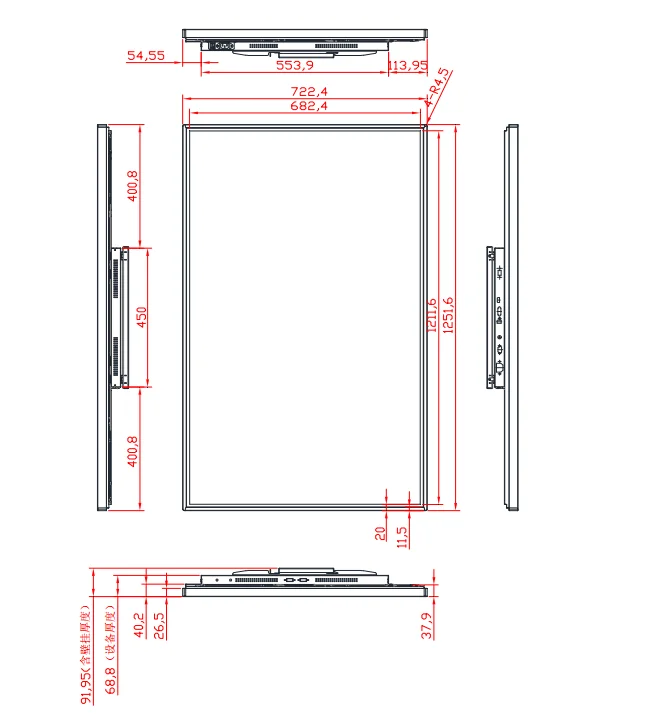

Product drawing


Product Description
