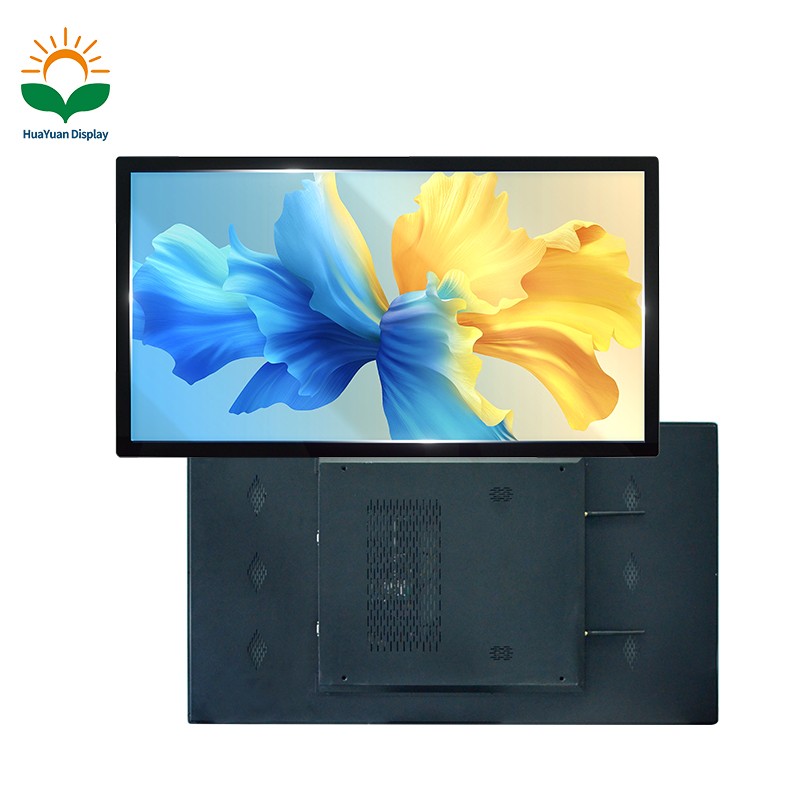

65 Inch Windows All-in-one Machine Touch-screen Win 10 Monitor Embedded Installation Lightweight Design

65 Inch Windows All-in-one Machine Touch-screen Win 10 Monitor Embedded Installation Lightweight Design

Category： All-in-one machine
INQUIRY EMAIL

WINDOWS system industrial touch all-in-one computers are mostly suitable for automated high-end human-machine interface operating platforms. The shell adopts aluminum alloy/sheet metal structure design. The front panel of the aluminum alloy industrial tablet computer adopts high-specification LCD screen and touch screen to seamlessly fit together, meeting the IP65 dust and water resistance standards. It has the advantages of low power consumption, high integration, good stability, complete

communication I/O, easy installation, beautiful and thin appearance, and small space occupation. This product adopts panel embedded installation, which is very convenient to install and maintain.

Product feature

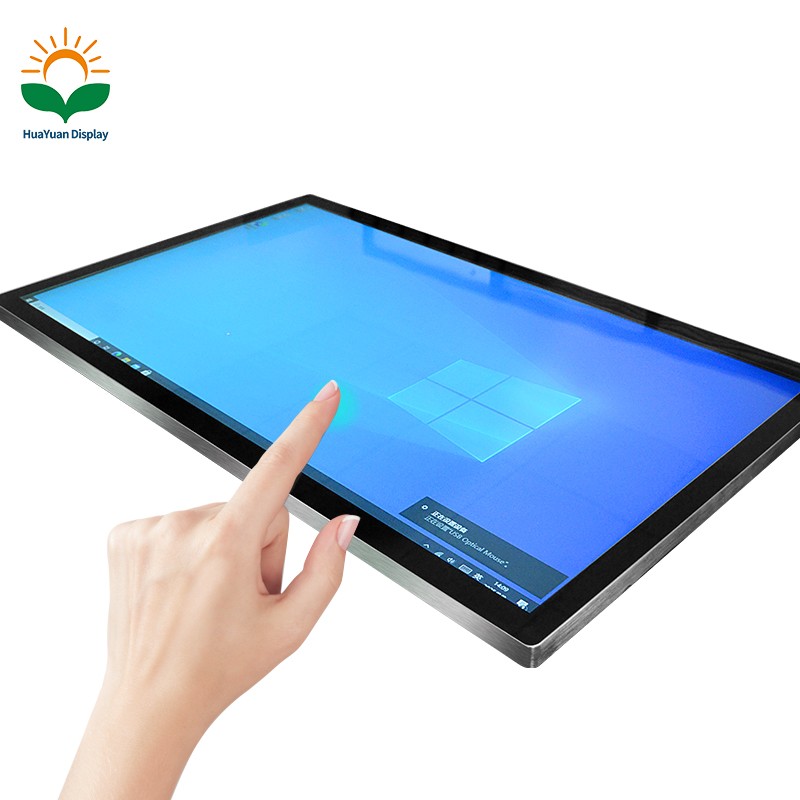

1,It can realize capacitive touch and display functions, realize human-computer interaction, and can becustomized to meet various personalized needs;

2,Supports multiple networking methods such as WIFI/4G/Ethernet, enabling remote data transmission and cloud interconnection;

3,Multiple interfaces, supporting different serial port communications such as RS485, to achieve exchange and communication with external devices;

4,Support voice playback and video playback;

5,Support video advertising playback to increase operating revenue;

6,Industrial embedded design, easy to install......

Product Parameters

Display parameters

Display size	65 inch
Resolution	3840*2160
Brightness	350 CD/M2
Display ratio	16:9
View direction	89/89/89/89

Touching method	Capacitive touch
Input method	Handwriting or stylus
Touch point count	10 point touch
Service life	Single point can withstand more than 50 million times.
Response time	8ms
Shell size	1002*596 mm

Hardware parameters

motherboard	Intel 6 series QM6637
CPU	I5-2nd Generation
RAM	4GB
ROM	128GB
System	Support Windows 10x
Video	Support H.265 , H.264 VP8, MAV , WMV , AVS , H.263, MPEG4 etcVideo format 1080P/2160P multi-video decoding.
Photo	Supports various image formats such as JPG, BMP, and PNG for browsing, and also supports rotation, slideshow playback, and image zooming functions.
Network support	Supports Ethernet, WIFI, and supports peripheral expansion.
Decoding resolution	1080P
RTCReal-time clock	1080P
Scheduled power on/off	Support

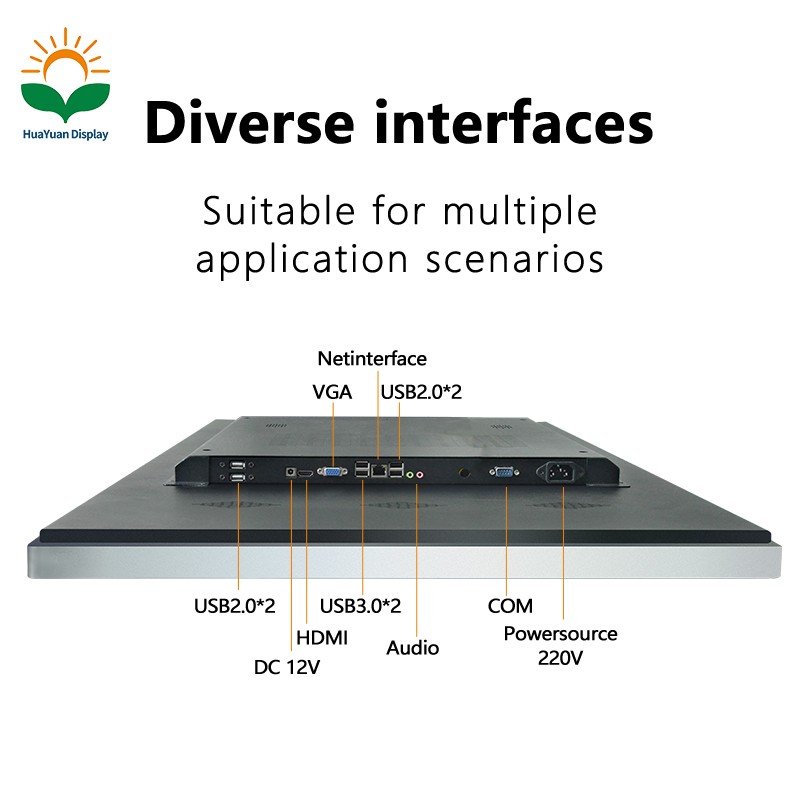

Interface

USB port	USB2.04,USB3.02
Power port	AC 220V/25W
RJ45 Ethernet	1*Realtec8 111FGigabit interface, supporting network wake-up
VGA port	Standard DB15 interface
HDMI port	Support HDMI data output,max support 1080P
Earphone jack	Output 3.5mm standard port
Serial interface	COM1,Default 485 protocol
DC port	Support 12V / 80W power
Input voltage	AC 220V / 25W
WIFI	Standard WIFI interface,Support automatic connection
Serial port	232/422/485(Optional)
4G communication	(Optional)
