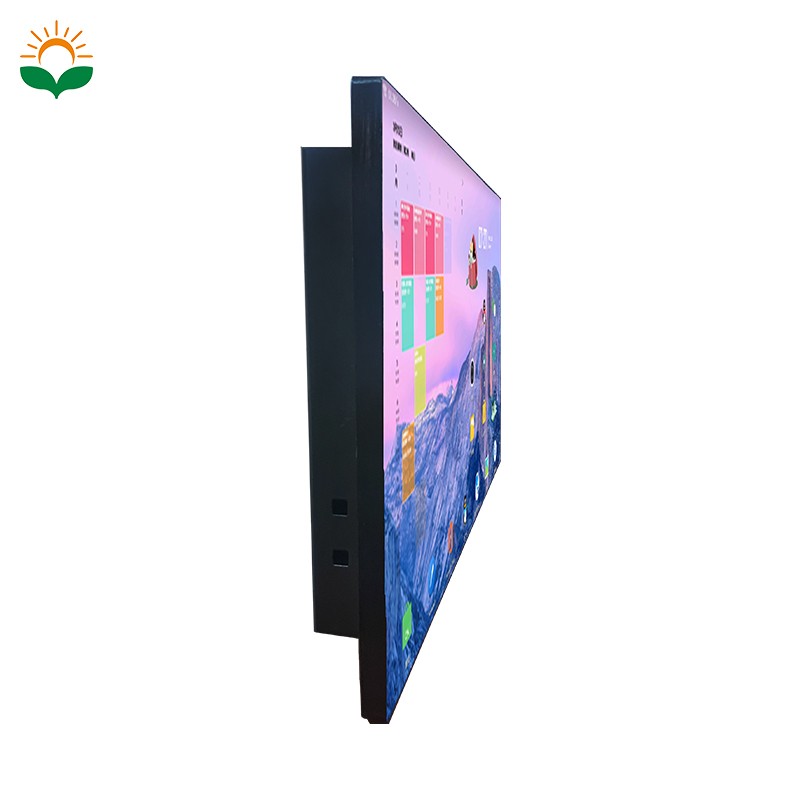

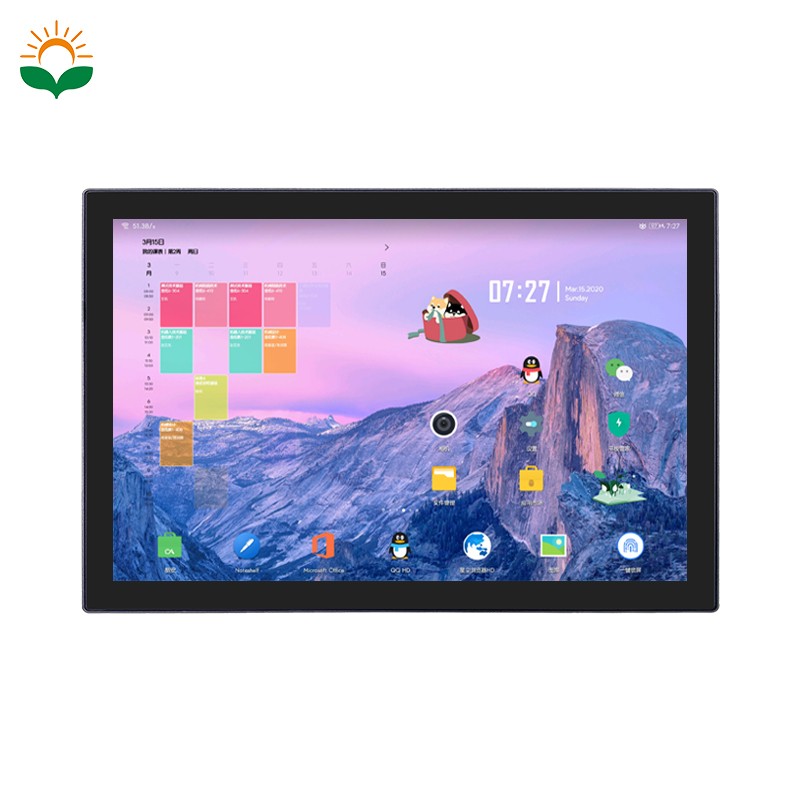

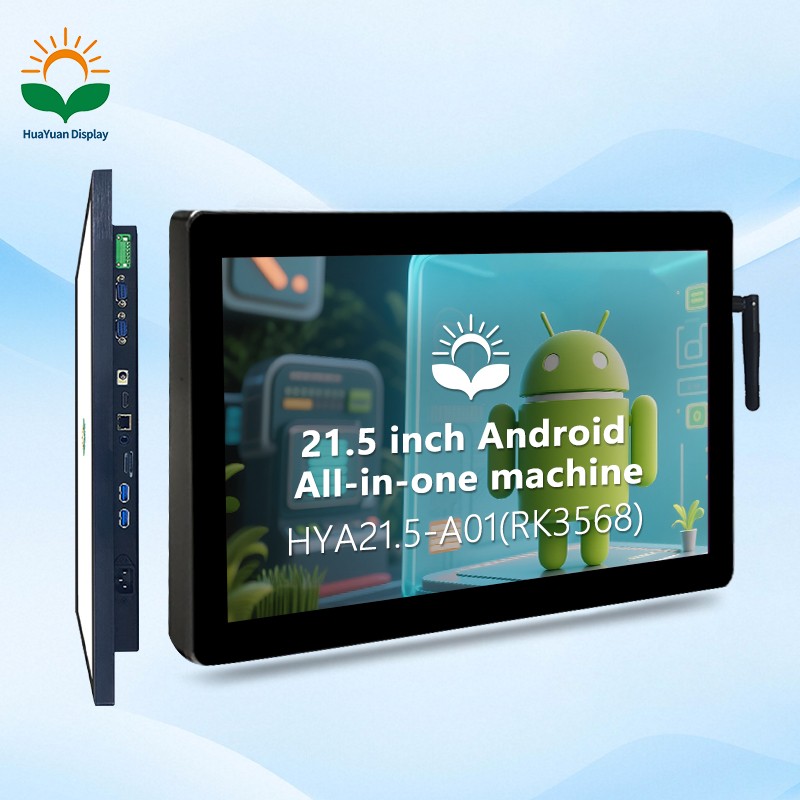

1, Overall product photos

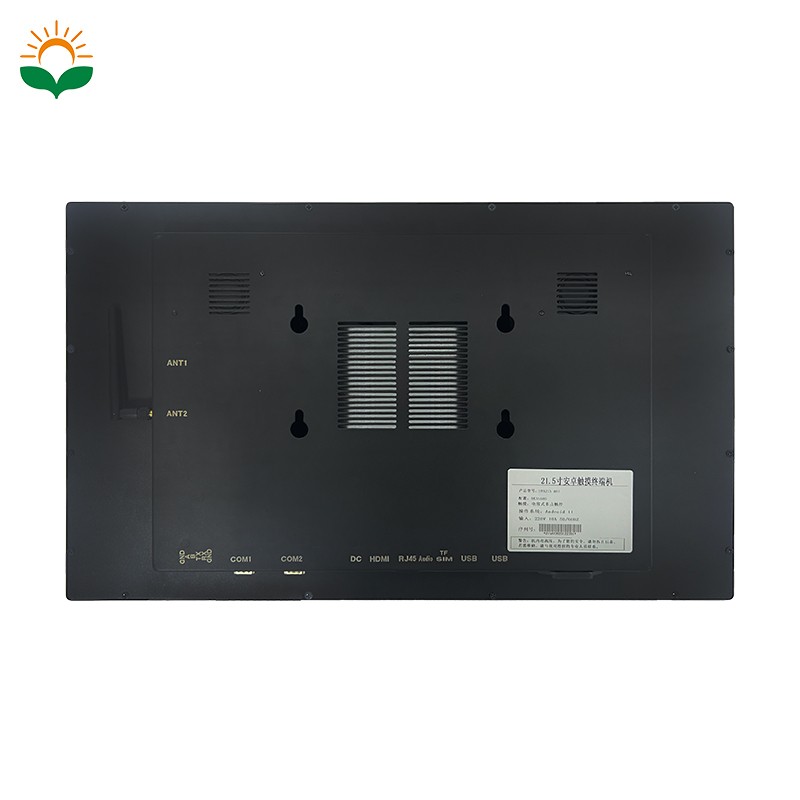

2, Product interface photos
3, Product structure drawing
Display parameters
| Parameters | Data | Instructions |
| Display size | 21.5 inch | 16:9 |
| Resolution | 1920*1080 | |
| Colors | 16.7M | - |
| Active Area dimenstion(A.A) | 476.64(H)*268.11(W) mm | - |
| Backlight brightness | 250 nit | The brightness can be adjust by software |
| Backlight lifetime(Hrs) | 50000Hrs | LED backlight |
| Viewing direction(CR>10) | wide view angle | |
| Touch type | Capacitive touch panel | Support single or 10 point touch |
| Working life |
Single point can affordable
≥50 million times
|
|
| Response time | 8ms | |
| Case size | 510.4*269.8*25.4 mm |
Hareware parameters
| CPU | RK3568 4 cores 64-bit Cortex-A55, maximum main frequency 2.0Ghz |
| Memory | 2G |
| Storage | EMMC FLASH 16G (the maximum can be extended to 32G) |
| GPU | ARM G52 2EE support OpenGL ES 1.1/2.0/3.2,OpenCL 2.0,Vulkan 1.1 |
| WIFI | 2.4GHz |
| Bluetooth |
BT 4.0
|
| Operation system | Android 11 |
| Others | Support RTC real-time clock, ,timing switch |
| Language |
Chinese, English, French, German, Italian, Japanese, Korean, Russian, Spanish,
Polish, Czech and many other languages.
|
Interface parameters
| Power interface |
1 external DC12V input socket and one built-in 6P input socket(including external
power STANDBY function)
|
| Power interface | 220V power interface |
| USB | 6*USB HOST (two external,four built-in) |
| TF card | 1*TF card with standard interface |
| SIM Card |
/
|
|
HD-MI
|
1*HDMI A type standard interface output
|
|
Net interface
|
One standard external RJ45 interface.
|
|
Audio/video
output
|
Support left and right channel output, built-in dual 8R/5 power amplifier
|
|
Reset key
|
Support(1*UBOOT)
|
|
COM
|
2*RS232(Optional RS485,TTL)
|
|
WIFI Antenna
|
1*WiFi antenna
|
Reliability parameters
| Working temperature | -20°C~70°C |
| Storage temperature | - 30°C~80°C |
| Relative humidity |
Humidity: 90%, Temperature:50℃
|
| Vibration protection | 10Hz-50Hz-10Hz Amplitude 1.5mm X,Y,Z each 3H |
| Front waterproof rating | The front panel can reach IP65 protected rating |
