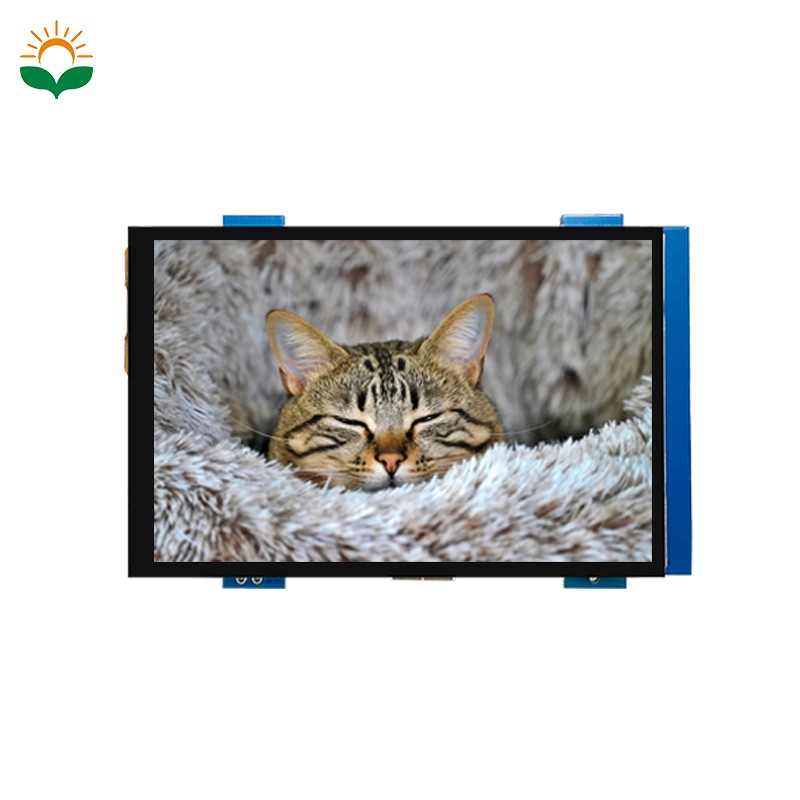

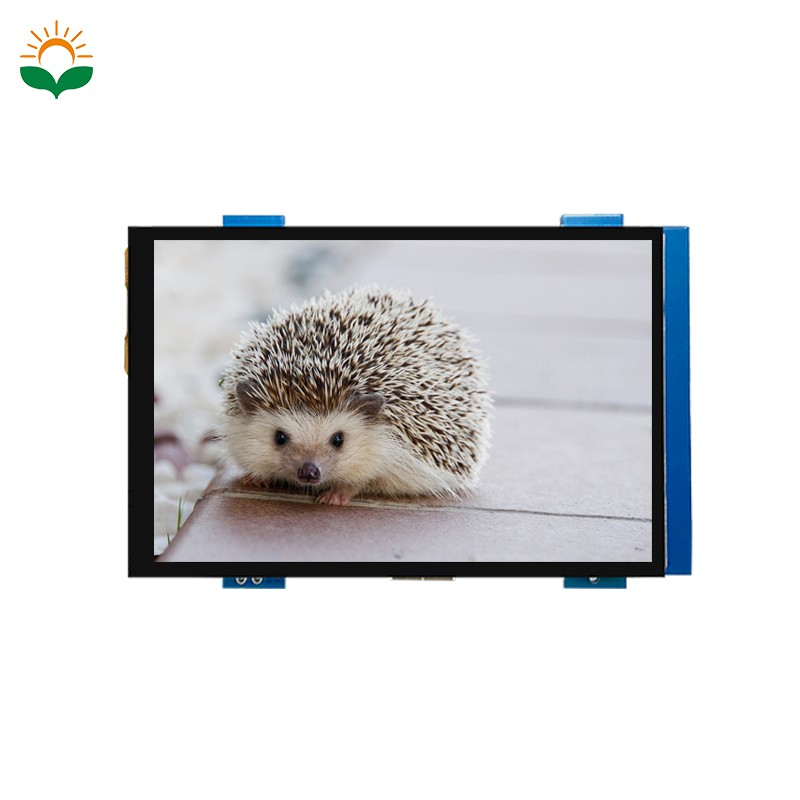

3.5 Inch HDMI Lcd Display 320x480 Touch LCD Monitor for Raspberry PI 4

3.5 Inch HDMI Lcd Display 320x480 Touch LCD Monitor for Raspberry PI 4

Category： HDMI
INQUIRY EMAIL

Product specificatio

Model No	HY4832C035L-HDMI
Size	3.5 inch
Display type	3.5 inch TFT normally white
Resolution	320RGBX480
Display color	262k
View angle	12:00
Interface	HDMI
Backlight	800cd/m2
touch	P+G
Outline dimension	60.33x85.4x21.6mm
Active area	49.76x74.65
Pixel pitch	0.219x0.219
Structure type	COG+FPC+BL
Warranty	1 year

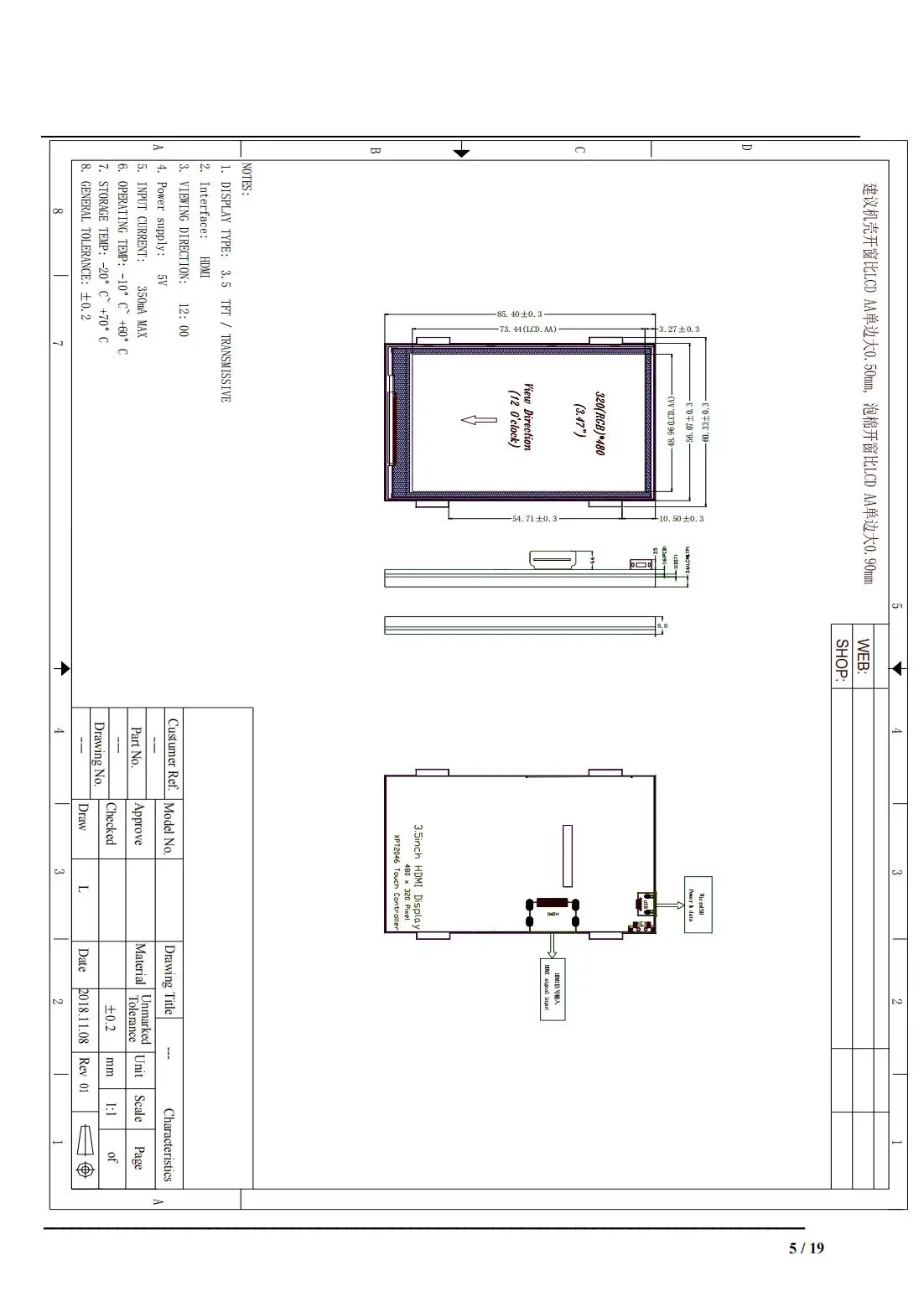

Product drawing

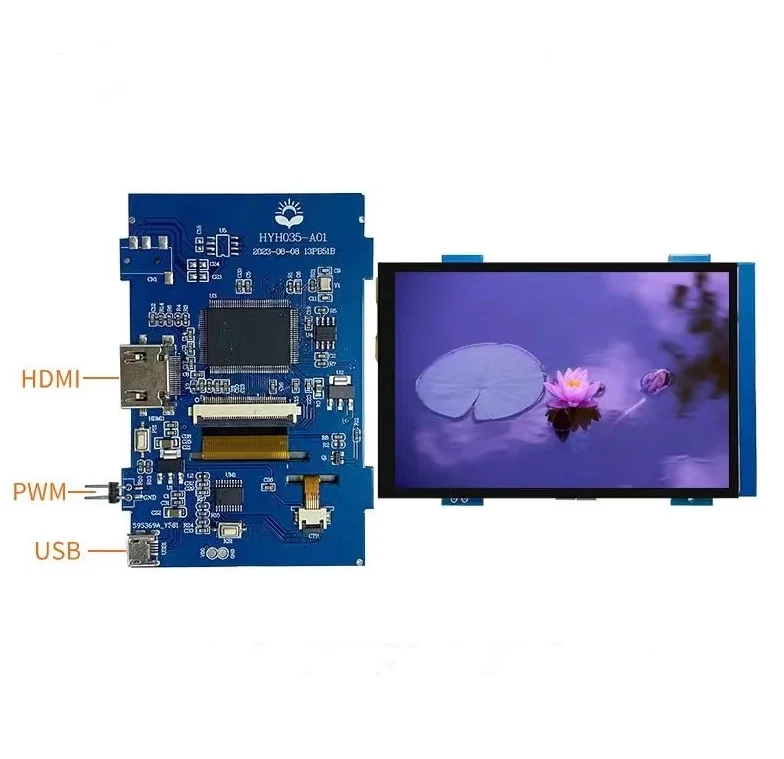

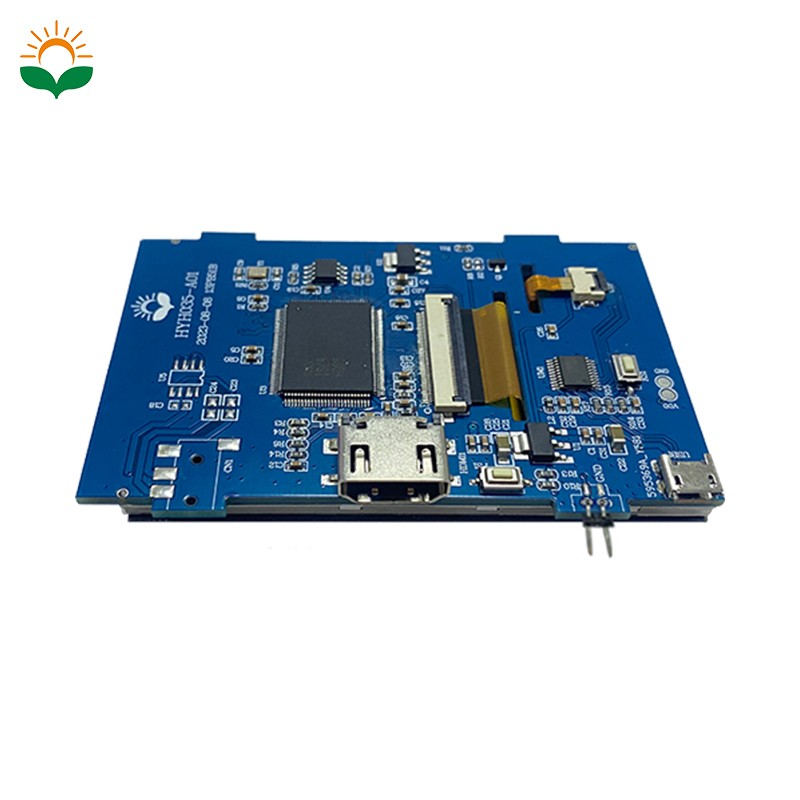

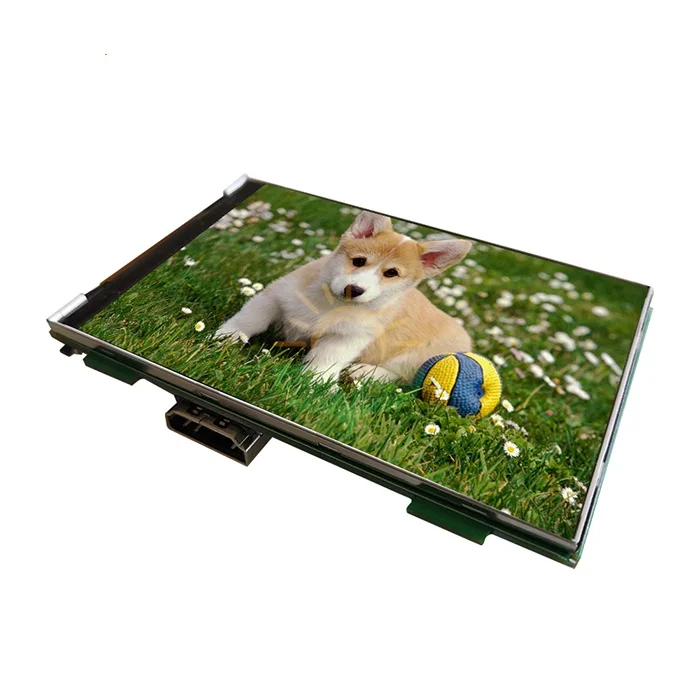

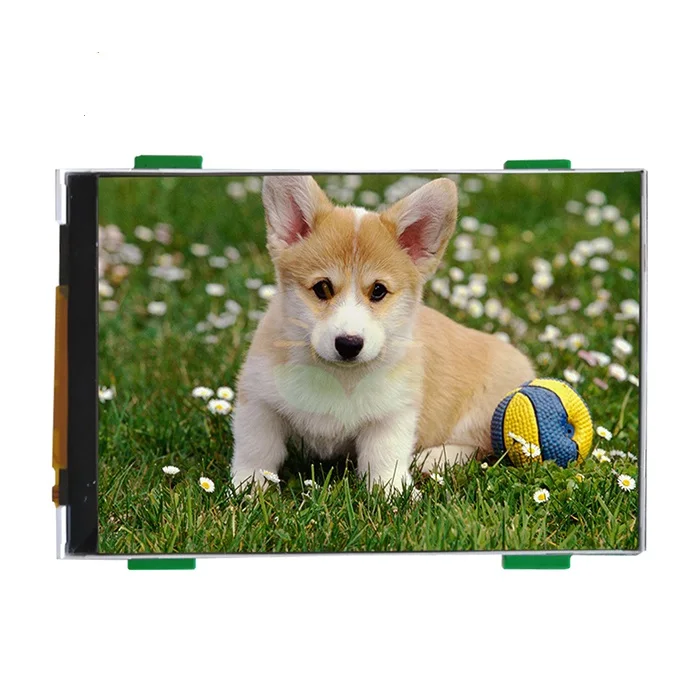

Product Show

Application

Autoelectronics, 3D&Shutter, Meters&Instrument, Telecommunication,
Domestic electrical appliance(Household appliance), Fuel dispensers, Office equipment,
Medical &health equipment, Business related facility, Education electronics.

Releated product

Character lcd (8x1, 8x2, 16x1, 16x2, 16x4, 20x2, 20x4, etc. )
Graphic lcd (122x32, 128x64, 192x64, 240x128, 320x240, etc. )
TFT LCD (1.44", 1.77", 2", 2.2", 2.4", 2.8", 3", 3.2", 3.5", 4", 4.3", 5", 5.5", 5.7", 6.2", 7", 8", 9", 3, 7", 10.1", 10.2", 10.4", 17" and so on.
TN/STN/HTN/VA segment customized lcd
LED backlight panel
