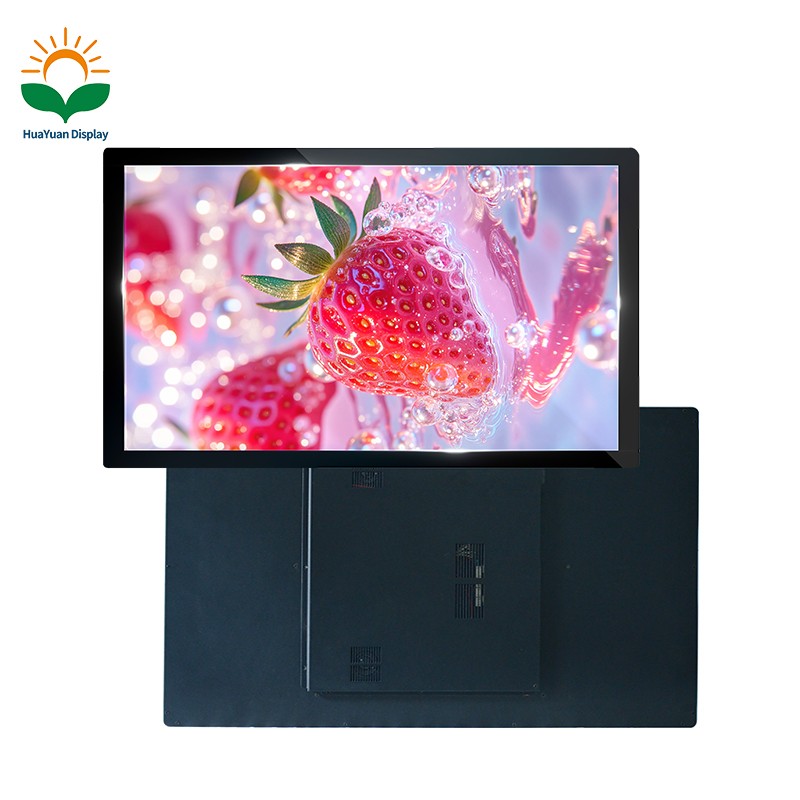

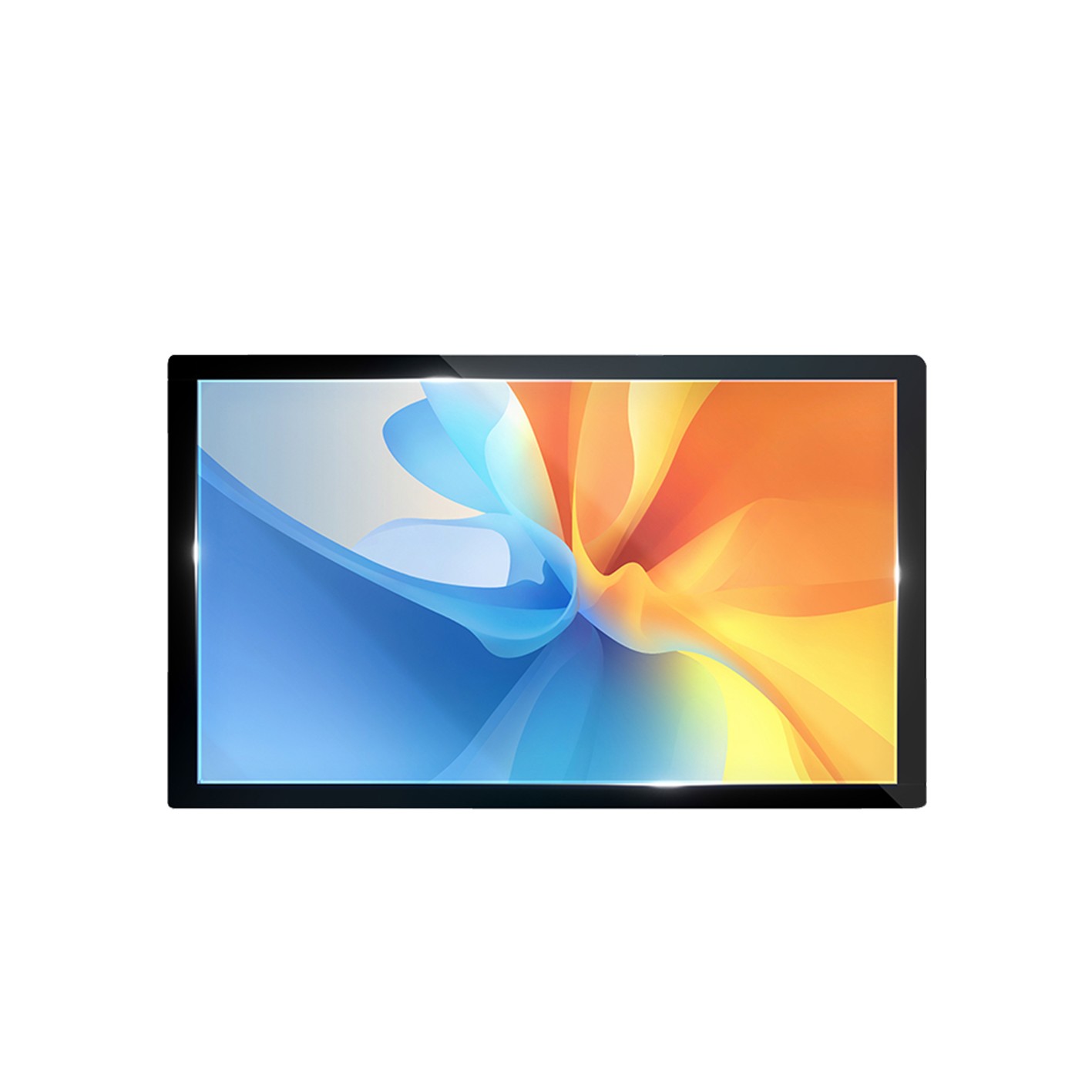

Android RK3568 Monitor All-in-one Machine 32 Inch 1920*1080 High Definition Touch-screen Panel Wall Mounted

Android RK3568 Monitor All-in-one Machine 32 Inch 1920*1080 High Definition Touch-screen Panel Wall Mounted

Category： Android
INQUIRY EMAIL

Model No: HYA320-A01

The HYA320-A01 features a Rockchip RK3568 Cortex-A55 quad-core processor and runs the Android system, clocked at up to

2.0 GHz for exceptional performance. It also incorporates a Mali-G52 2EE GPU and supports 4K and H.265/H.264/VP9 video decoding. Users can customize the Android app to meet their specific needs, including communicating with peripherals via serial ports like RS232 and RS485, connecting to the internet via Wi-Fi/4G, transmitting data remotely over Ethernet, and playing advertisements. This makes it an ideal choice for human-computer interaction and industrial control projects.

Product feature

High definition. Supports up to 1920x1080 decoding and supports screen cropping of various resolutions.Fully functional: supports horizontal and vertical screen playback, video split screen, scrolling subtitles, timer switch, USB data import, etc.
Rich interfaces, supporting 1 Micro USB OTG, 2 USB HOST standard A ports, 1 RS232 serial port, 1 TTL serial port, HDMI interface, 1 10/100M Ethernet, built-in 2.4G WiFi, and Bluetooth 4.x.
Stereo high-fidelity audio output.
Supports 1920x1080 (1080P) full HD video files, pictures, music, etc.
Supports free split screen, using PC gadget software to freely divide the screen area and add files.
Remote software upgrade function.
The screen can be rotated 180 degrees to change the up and down viewing angles, and the video and pictures will rotate accordingly.
Embedded installation.

Product Parameters

Motherboard parameters

Model No.	RK3568
CPU/GPU	Quad-core, 2.0GHz main frequency,Android 11
RAM/ROM	2G+16G
System	Android 11

Display screen parameters

Display size	32 inch
Resolution	1920*1080
Brightness	350 CD/M2
Display ratio	16:9
View direction	89/89/89/89

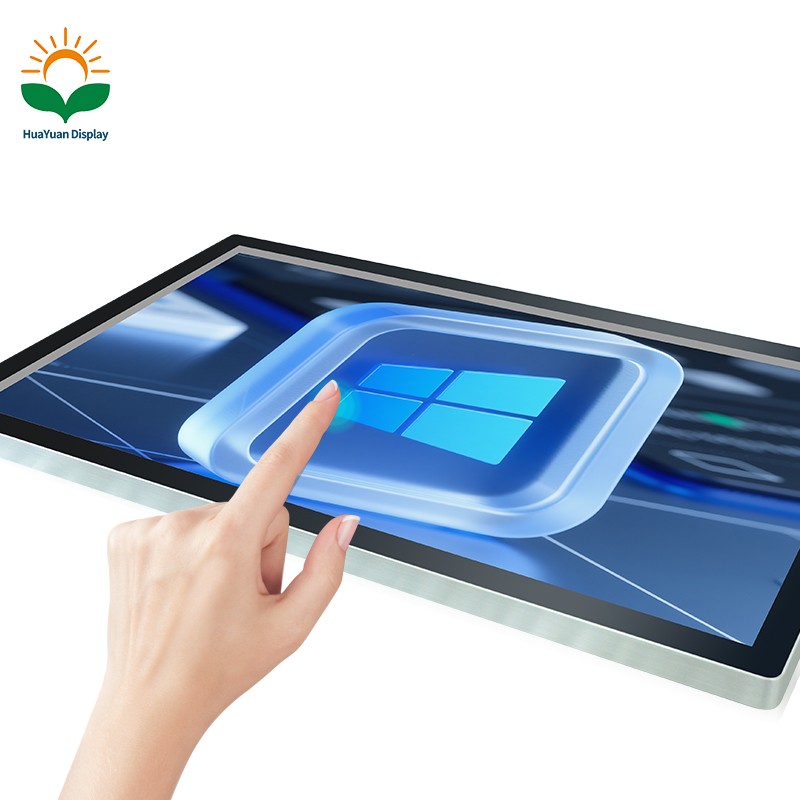

Touch

Tempered glass	3MM Explosion-proof tempered glass
Touching method	Capacitive
Anti-glare	Optional parameters, standard product - this function is "not available"
Touch point count	10 point touch
Touch control accuracy	0.25

Interface

Network port signal	1*Network input
HDMI signal	1*HDMI
Communicatio n port	485 TTL
Speaker	Optional(Two-channel 8-ohm 5W)
USB	2*USB
WIFI, Bluetooth	2.4GHz/BT 4.x
4G communication	(optional)
NFC	(optional)
Input voltage	AC 220V / 25W
Camera	/
