Wall Embedded 21.5 Inch Android Touch Panel 1920*1080 LCD Android 11 Display Panel 16G 32G 64G 128G

Wall Embedded 21.5 Inch Android Touch Panel 1920*1080 LCD Android 11 Display Panel 16G 32G 64G 128G

Category： Android
INQUIRY EMAIL

Users can easily achieve human-computer interaction through Android intelligent display terminals, and realize various personalized needs of users through Android general APP, such as WIFI/4G Internet access, Ethernet Internet access, web browsing, cloud interconnection, remote control, remote data transmission, playing music, playing videos, playing advertisements, etc. It can also communicate with external devices through

serial ports such as RS232 and RS485.

Product feature

1.It can realize capacitive touch and display functions, realize

human-computer interaction, and achieve various personalized needs through

APP.

2.Support WIFI/4G/ Ethernet and other networking methods, can achieve

remote data transmission, cloud interconnection.

3.Multiple interfaces, support multiple RS232, RS485 and other different

serial port communication, to achieve the exchange of communication with

external devices.

4.Supports voice and video playback.

5.Industrial embedded design, easy to install

Product Show

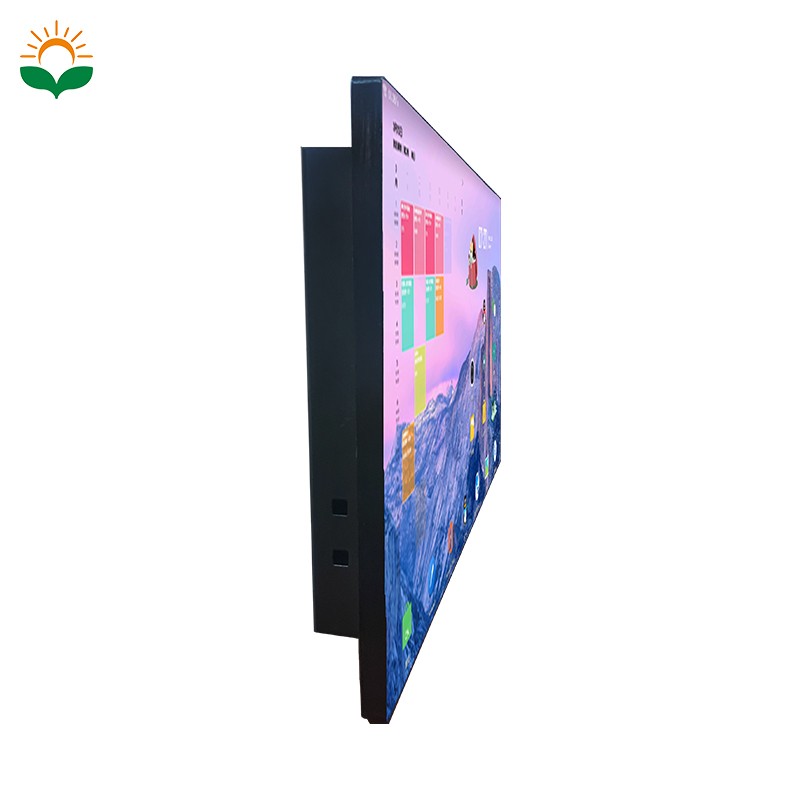

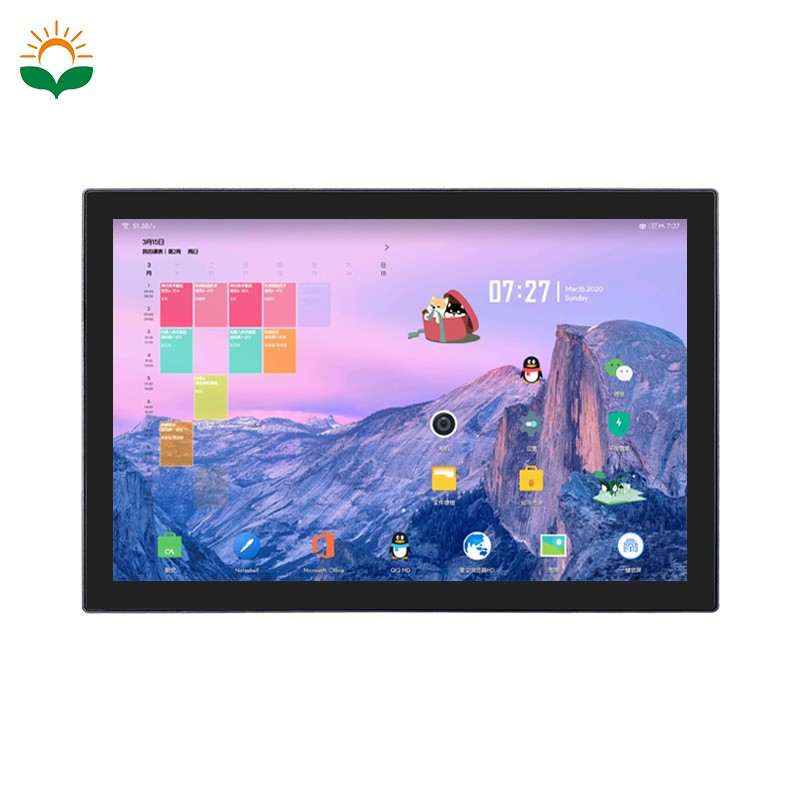

1, Overall product photos

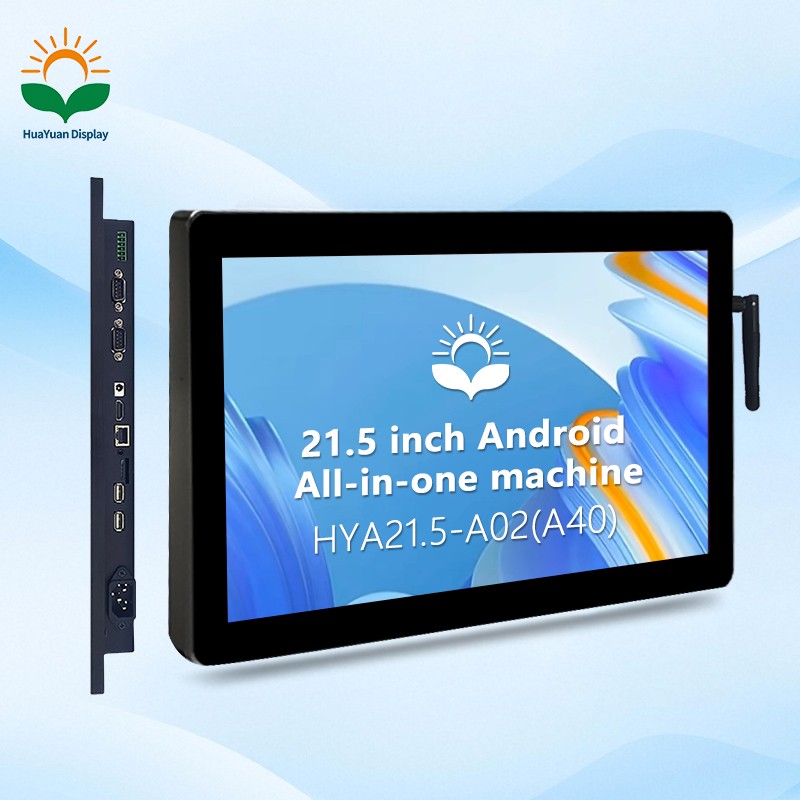

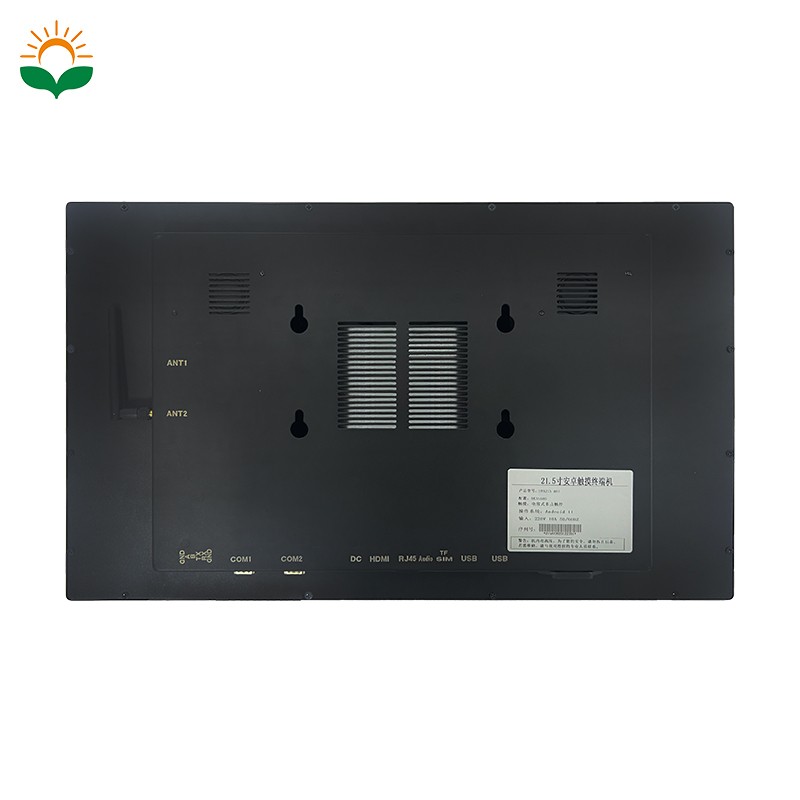

2, Product interface photos

3, Product structure drawing

Product Parameters

Display parameters

Parameters	Data	Instructions
Display size	21.5 inch	16:9
Resolution	1920*1080
Colors	16.7M	-
Active Area dimenstion(A.A)	476.64(H)*268.11(W) mm	-
Backlight brightness	250 nit	The brightness can be adjust by software
Backlight lifetime(Hrs)	50000Hrs	LED backlight
Viewing direction(CR>10)	wide view angle
Touch type	Capacitive touch panel	Support single or 10 point touch
Working life	Single point can affordable ≥50 million times
Response time	8ms
Case size	510.4269.825.4 mm

Hareware parameters

CPU	RK3568 4 cores 64-bit Cortex-A55, maximum main frequency 2.0Ghz
Memory	2G
Storage	EMMC FLASH 16G (the maximum can be extended to 32G)
GPU	ARM G52 2EE support OpenGL ES 1.1/2.0/3.2,OpenCL 2.0,Vulkan 1.1
WIFI	2.4GHz
Bluetooth	BT 4.0
Operation system	Android 11
Others	Support RTC real-time clock, ,timing switch
Language	Chinese, English, French, German, Italian, Japanese, Korean, Russian, Spanish, Polish, Czech and many other languages.

Interface parameters

Power interface	1 external DC12V input socket and one built-in 6P input socket(including external power STANDBY function)
Power interface	220V power interface
USB	6*USB HOST (two external,four built-in)
TF card	1*TF card with standard interface
SIM Card	/
HD-MI	1*HDMI A type standard interface output
Net interface	One standard external RJ45 interface.
Audio/video output	Support left and right channel output, built-in dual 8R/5 power amplifier
Reset key	Support(1*UBOOT)
COM	2*RS232(Optional RS485,TTL)
WIFI Antenna	1*WiFi antenna

Reliability parameters

Working temperature	-20°C~70°C
Storage temperature	- 30°C~80°C
Relative humidity	Humidity: 90%, Temperature:50℃
Vibration protection	10Hz-50Hz-10Hz Amplitude 1.5mm X,Y,Z each 3H
Front waterproof rating	The front panel can reach IP65 protected rating

Use instruction

7, (3).jpg

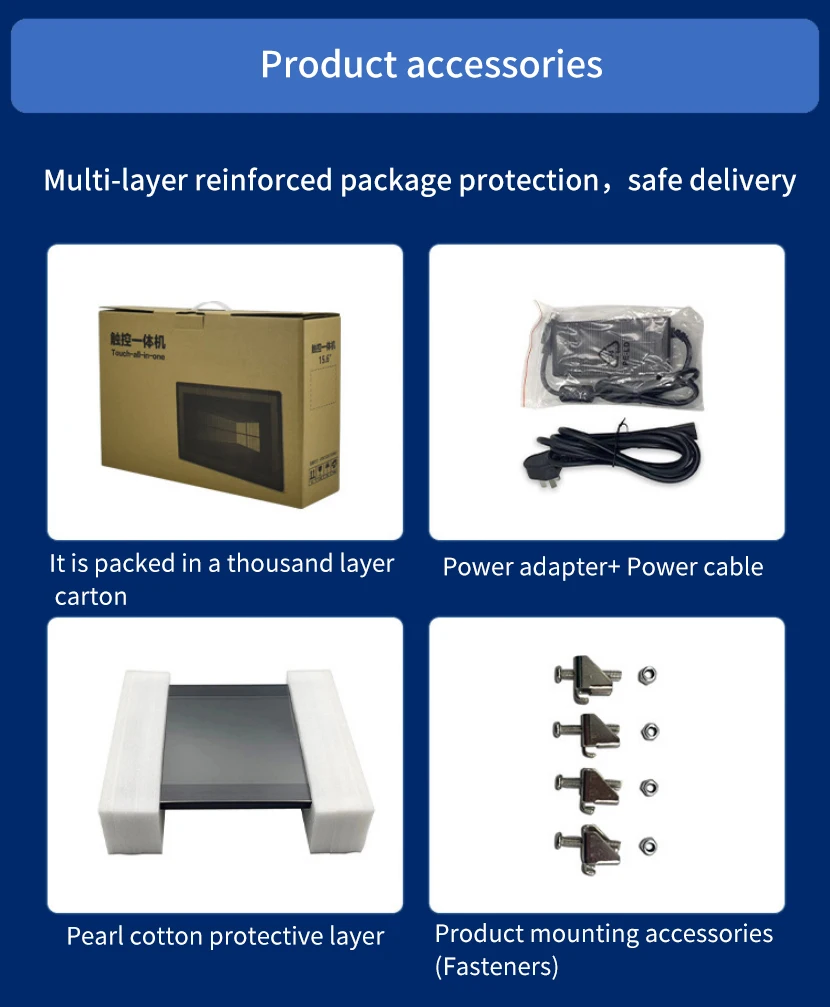

Package method

7, (4).jpg
