4.3inch: The Golden Size for Industrial Human-Machine Interaction

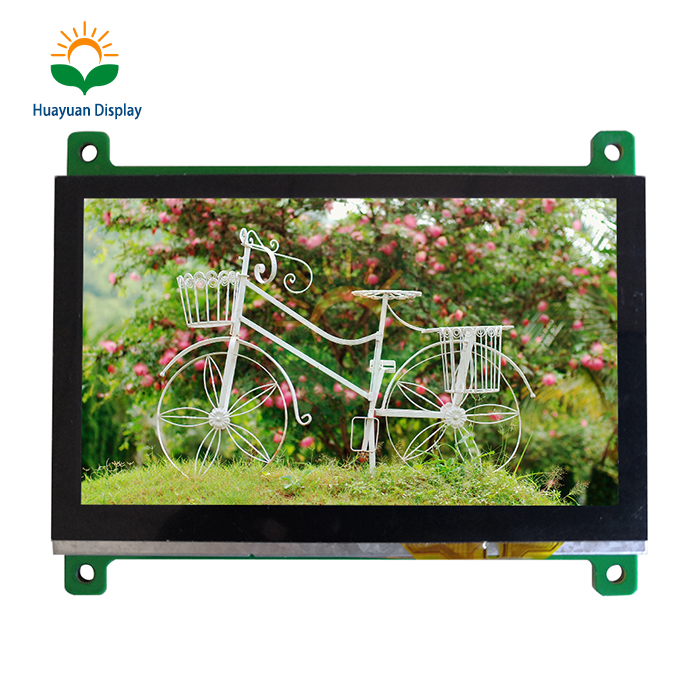

1. What is a 4.3-inch LCD screen?
   4.3-inch LCD screen refers to a liquid crystal module with a diagonal screen size of 4.3 inches. It generally uses TFT (Thin Film Transistor) technology, while some products use IPS (In-Plane Switching) technology to meet requirements for different viewing angles and color reproduction. Its mainstream resolutions are 480×272 or 800×480 (WVGA), making it one of the standard sizes widely used in embedded development and small smart devices.

2. Why is it called the "Golden Size"?   Compared to 2-3 inch small screens, the 4.3-inch size offers better visual presentation; it is also more space-efficient and power-efficient than screens above 5 inches. This size achieves an excellent balance between display effect, touch operation, and device structural adaptation, and is widely regarded as the "Golden Size for Industrial Human-Machine Interaction."

II. Core Technical Features: Beyond Clarity, More Performance Advantages for Terminal Upgrades

1. Resolution and Image Quality
   Common Resolutions:
   480×272: Entry-level standard, suitable for simple UI interfaces;
   800×480: High-definition WVGA, finer images, suitable for graphical interfaces and dynamic content;
   Pixel Density (PPI): Mostly between 180-230, with clear text and image edges, no graininess;
   Color Reproduction: Supports 65K, 262K, or 16.7M colors, with natural color gradation and excellent visual experience

2. Display Technology: TFT vs. IPS
   TFT Screen: Fast response time, low cost, suitable for static images or industrial control equipment;
   IPS Screen: Wider viewing angles (178° up/down/left/right), bright and consistent colors, suitable for medical or automotive applications requiring high-definition image recognition.

3. Backlight and Brightness Performance
   Brightness Range: Typically 300-500 cd/m²;
   Sunlight Readable: Some models offer high-brightness versions with 800-1000 cd/m², suitable for outdoor use in strong light;
   Lifespan: LED backlight lifespan reaches 20,000-50,000 hours, stable and reliable.
   Touch Function Support

4. Touch Function Support
   Can be paired with resistive touchscreens: Strong anti-interference capability, suitable for industrial environments;
   Or capacitive touchscreens: Supports multi-touch, high sensitivity, better suited for modern smart operation experiences;
   Supports structures like G+G, G+F, OCA lamination to improve touch accuracy and aesthetics.

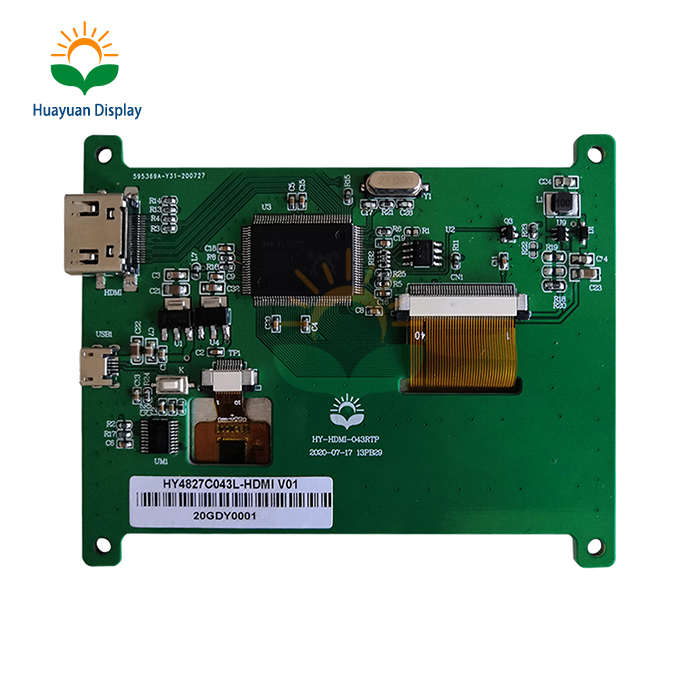

5. Diverse Interfaces and Driving Solutions
   MCU Interface (8-bit/16-bit parallel port): Compatible with low-end embedded systems;
   RGB Interface: Suitable for fast image refresh scenarios;
   LVDS/MIPI Interface: Used for high-bandwidth data transmission, compatible with Android mainboards or high-definition control boards;
   Driver ICs: Common examples include RA8875, SSD1963, ILI9806E, supporting stable and high-speed refresh.

III. Structure and Compatibility: Easier Integration, More Flexible Design Advantages

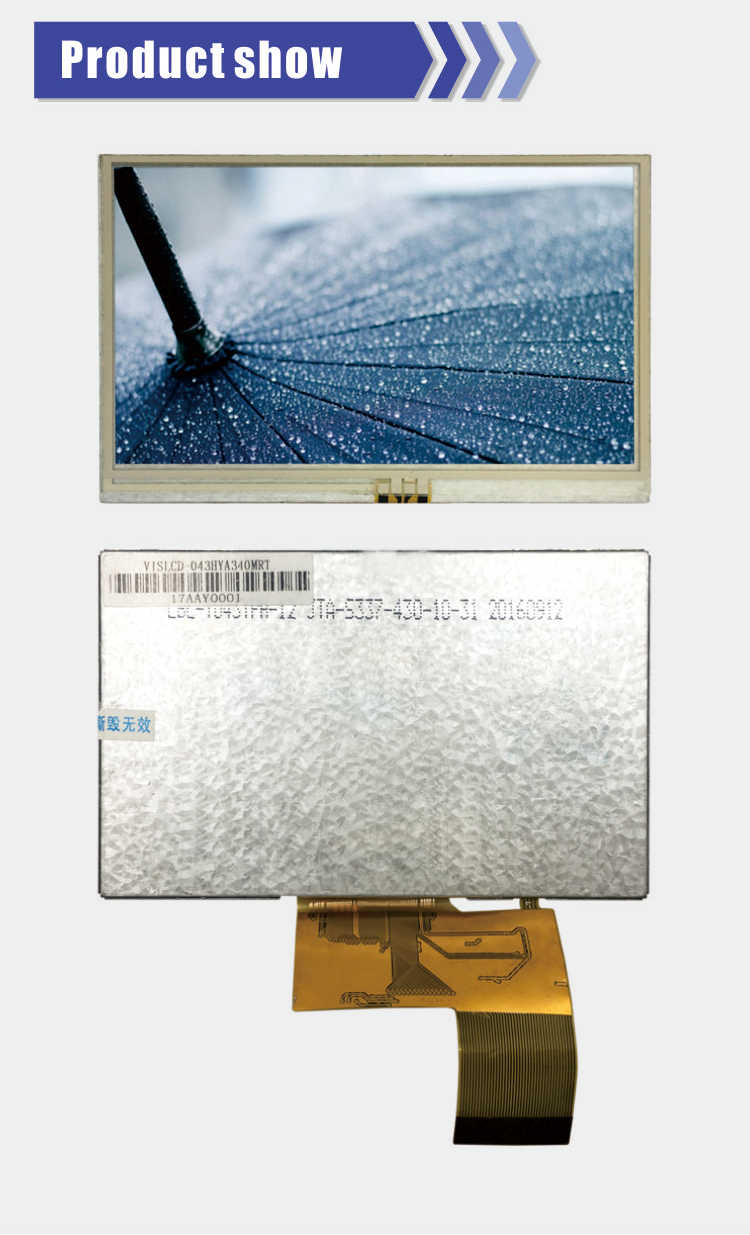

1. Flexible Module Design
   Standard module size is 105mm × 67mm × 4-6mm, suitable for handheld devices and embedding into industrial casings;
   Multiple FPC cable directions and pin layouts facilitate quick connection to different main control platforms;
   Supports custom cover glass size, bezel color, interface adaptation, etc., improving overall device aesthetics and integration.

2. Excellent Environmental Resistance
   Operating temperature range is generally -20°C to 70°C, with some industrial-grade versions extending to -30°C to 85°C;
   Customizable protection levels against vibration, static electricity, dust, and water, adapting to complex industrial environments and outdoor applications.

IV. Application Industry Perspective: The Role of a Multi-field "Display Backbone"

    1.  Industrial Control and Automation Terminals
In areas such as PLC HMI, instrumentation, smart warehouse terminals, and field testing equipment, 4.3-inch LCD screens are widely used as core display and interaction components, providing stable data display and operational feedback.

   2.  Medical Health Equipment
Used in scenarios like fetal heart monitors, portable ECG machines, rehabilitation equipment, and smart nursing systems. The screen can clearly display medical parameters, graphical curves, and operation interfaces, facilitating efficient use by medical staff.

   3.  Automotive and Transportation Equipment
In electric vehicle central controls, dashboards, rearview systems, and navigation controllers, the 4.3-inch screen is often used for information display and navigation interfaces due to its moderate size and wide viewing angle characteristics.

   4.  Smart Home and Consumer Electronics
Applied in devices such as smart access control systems, video intercoms, home appliance panels, remote controllers, and portable media terminals, providing a more intuitive and user-friendly HMI experience.

  5.  Education and Development Board Applications

V. Future Development Trends: The Evolution Path of a Smart Terminal "Mainstay"

1. Evolution Towards Higher Resolution and Lower Power Consumption
