Customized Android Industrial Control All-in-one Machine Monitor 10 Inch 1280800 Metal Frames Android 11 System

Customized Android Industrial Control All-in-one Machine Monitor 10 Inch 1280800 Metal Frames Android 11 System

Category： Android
INQUIRY EMAIL

Users can easily achieve human-computer interaction through Android intelligent display terminals, and realize various personalized needs of users through Android general APP, such as WIFI/4G Internet access, Ethernet Internet access, web browsing, cloud interconnection, remote control, remote data transmission, playing music, playing videos, playing advertisements, etc. It can also communicate with external devices through

serial ports such as RS232 and RS485.

Product feature

1.It can realize capacitive touch and display functions, realize

human-computer interaction, and achieve various personalized needs through

APP.

2.Support WIFI/4G/ Ethernet and other networking methods, can achieve

remote data transmission, cloud interconnection.

3.Multiple interfaces, support multiple RS232, RS485 and other different

serial port communication, to achieve the exchange of communication with

external devices.

4.Supports voice and video playback.

5.Industrial embedded design, easy to install

Product Show

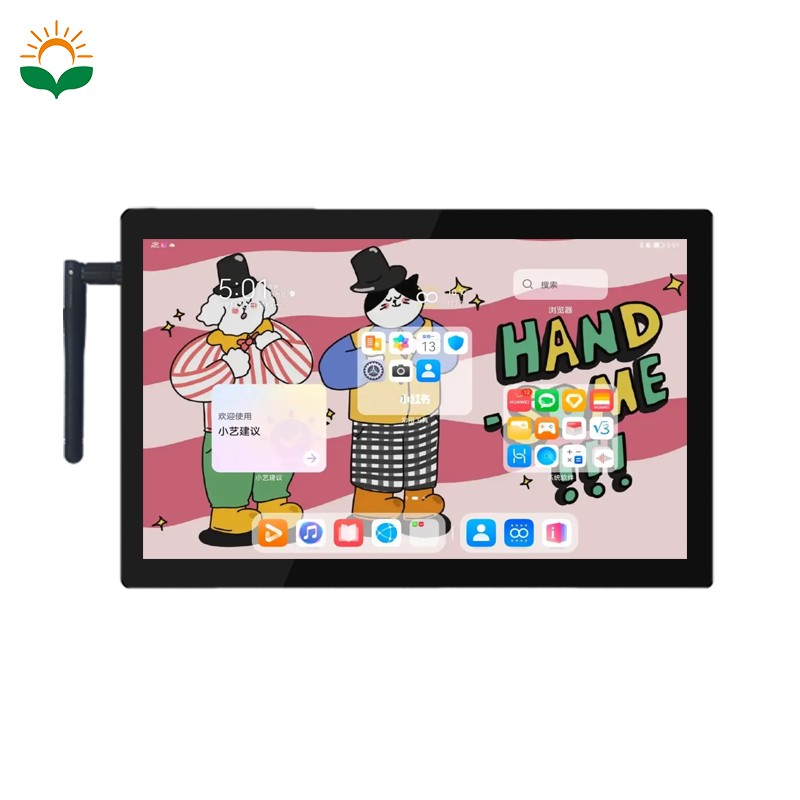

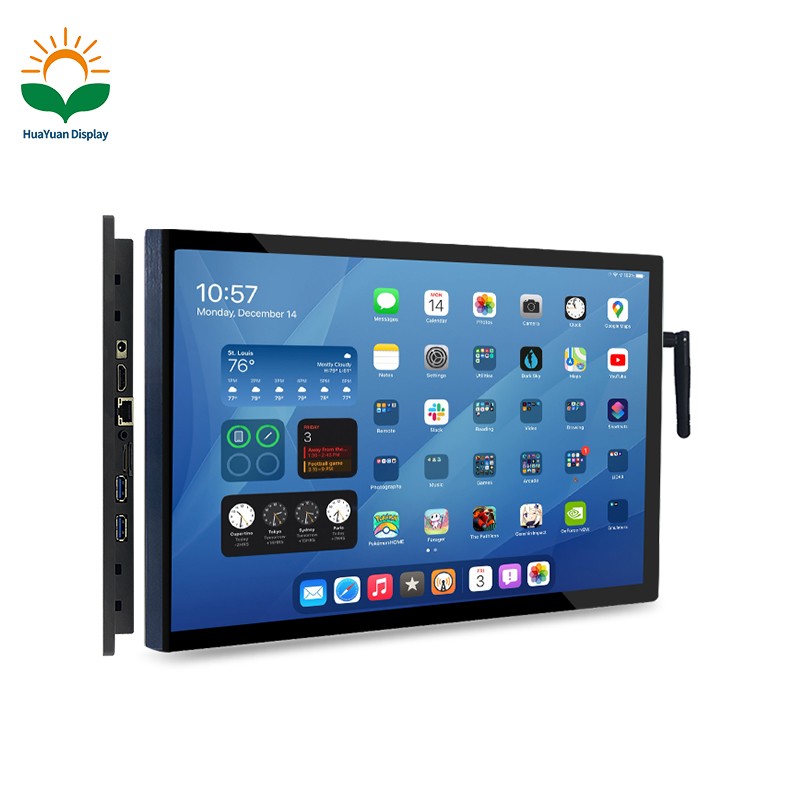

1, Overall product photos

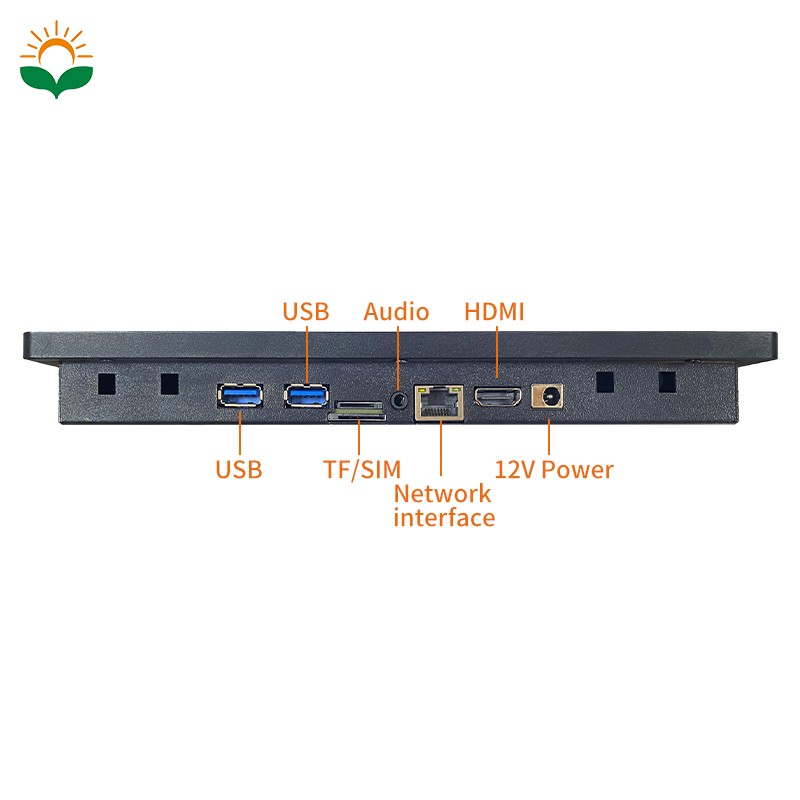

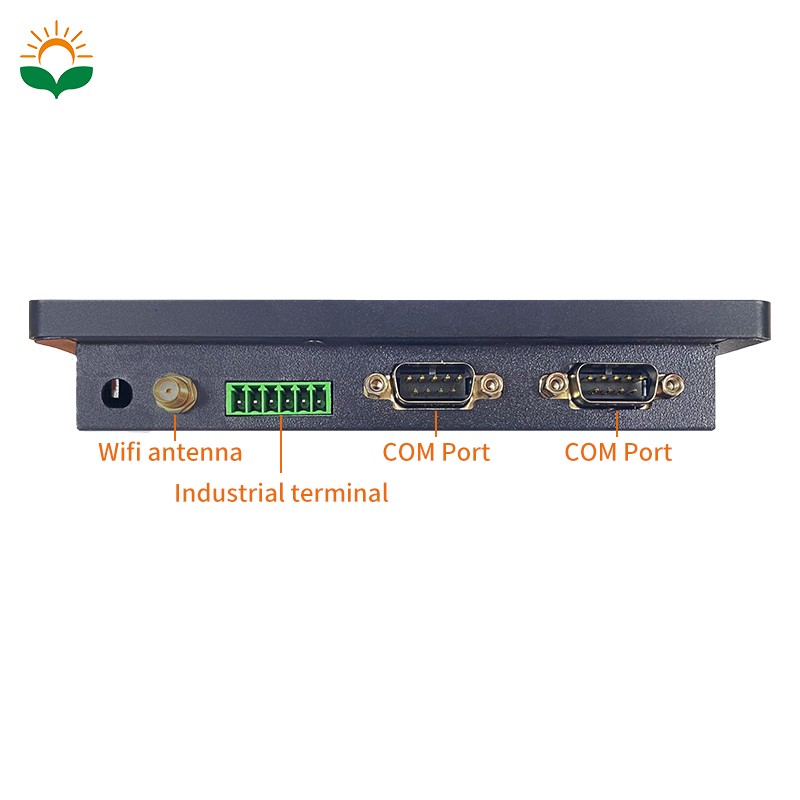

2, Product interface photos

10.1 (2).png 10.1.jpg

3, Product structure drawing

10.1 (3).png

Product Parameters

Display parameters

Parameters	Data	Instructions
Display size	10.1 inch	16:9
Resolution	1280*800
Colors	16.7M	-
Active Area dimenstion(A.A)	222.72(H)*125.28(W)mm	-
Backlight brightness	600 nit	The brightness can be adjust by software
Backlight lifetime(Hrs)	50000Hrs	LED backlight
Viewing direction(CR>10)	wide view angle
Touch type	Capacitive touch panel	Support single or 10 point touch
Working life	Single point can affordable ≥50 million times
Response time	8ms
Case size	249.6167.835.5 mm

Hareware parameters

CPU	RK3568 4 cores 64-bit Cortex-A55, maximum main frequency 2.0Ghz
Memory	2G
Storage	EMMC FLASH 16G (the maximum can be extended to 32G)
GPU	ARM G52 2EE support OpenGL ES 1.1/2.0/3.2,OpenCL 2.0,Vulkan 1.1
WIFI	2.4GHz
Bluetooth	BT 4.0
Operation system	Android 11
Others	Support RTC real-time clock, ,timing switch
Language	Chinese, English, French, German, Italian, Japanese, Korean, Russian, Spanish, Polish, Czech and many other languages.

Interface parameters

Power interface	1*DC2.1,support width voltage 12V-36V power supply
USB	1USB 3.0/ 1USB2.0; 4* built-in USB socket.
TF card	1*TF card with standard interface
SIM Card	1*SIM card standard interface,support a variety of standards(Depend on 3G/4G module)
HD-MI	1*HD-MI, support HDMI data transfer,the maximum support 4K
Net interface	1*LAN,10M/100M adaptive ether
Audio/video output	Support left and right channel output, built-in dual 8R/5 power amplifier
Reset key	Support(1*UBOOT)
COM	2*RS232(Optional RS485,TTL)
WIFI Antenna	1*WiFi antenna

Reliability parameters

Working temperature	-20°C~70°C
Storage temperature	- 30°C~80°C
Relative humidity	Humidity: 90%, Temperature:50℃
Vibration protection	10Hz-50Hz-10Hz Amplitude 1.5mm X,Y,Z each 3H
Front waterproof rating	The front panel can reach IP65 protected rating
