10.4 Inch Linux All-In-One Touch Machine HYL104-A01 adapts RK3568

mainboard,resolution is 1024X600,supports LCD display driver

interface,supports TF card,Ethernet,USB3.0,RS485,RS232 COM

port,BT\WIFI and others.Meanwhile,various interfaces are

customizable, meeting the needs of customers in various

environments.

Mainly used in industrial automation, medical equipment, smart

home, commercial equipment, buildings, transportation fields,

etc.

Product feature

1.Aluminum alloy frame, high-end design

2.Linux operating system, stable and reliable, with a highly

customizable development platform

3.Can realize capacitive touch and display functions to achieve

human-computer interaction

4.Support voice playback and video playback

5.Support WIFI/Ethernet and other networking methods, which

can realize remote data transmission and interconnection to the

cloud

6.Support a variety of interfaces, such as RS485, RS232, USB

and other different ways of communication, and communicate with

external devices

7.Embedded wall mounting has a variety of installation methods,

easy to install, suitable for a variety of industries

Product Show

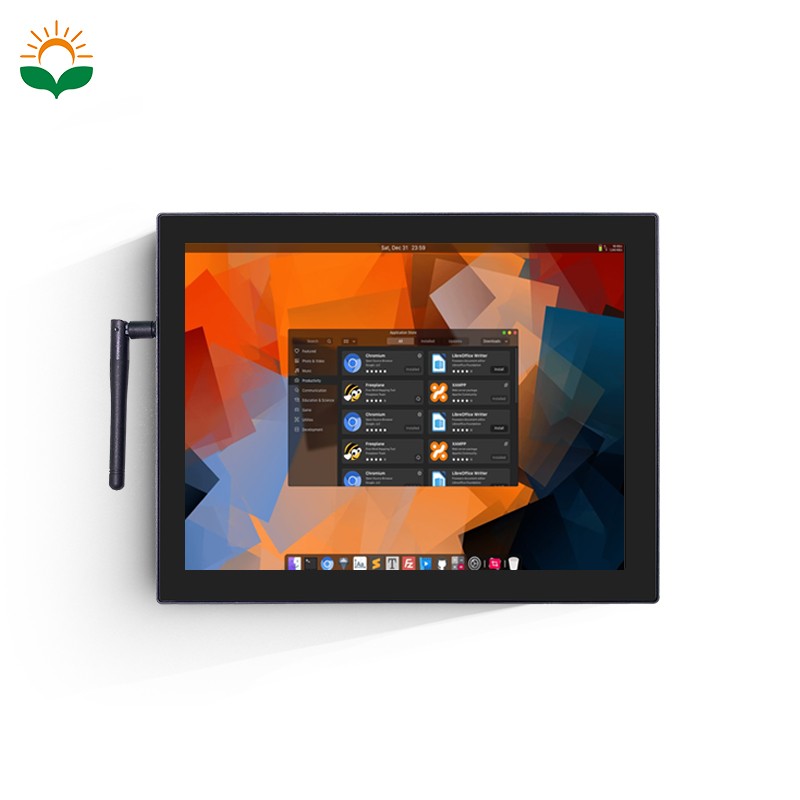

1, Overall product photos

10.4 Linux (1).jpg

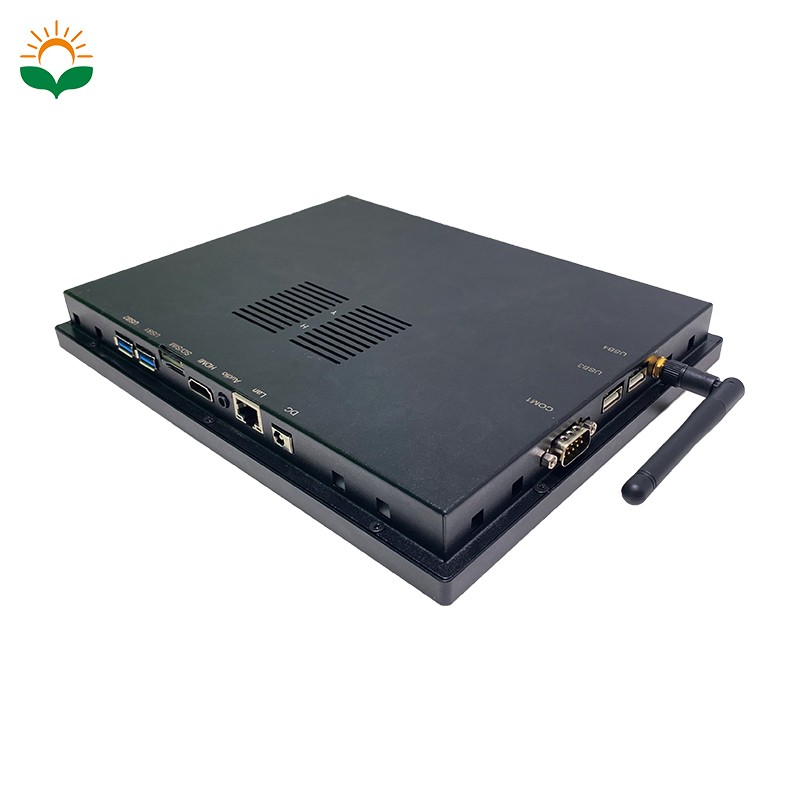

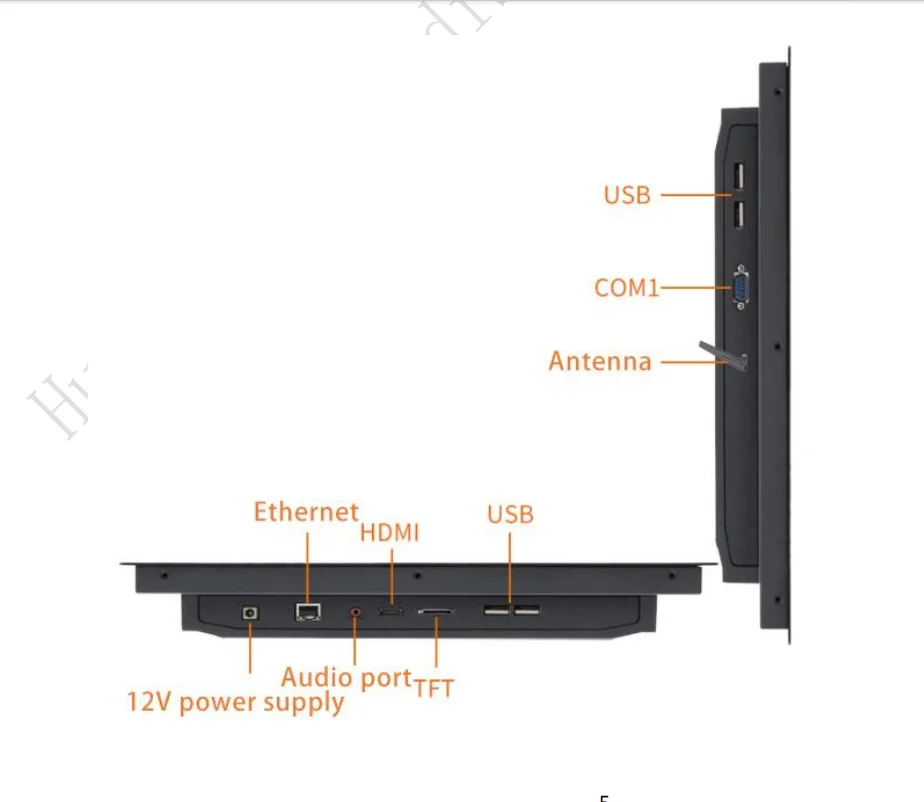

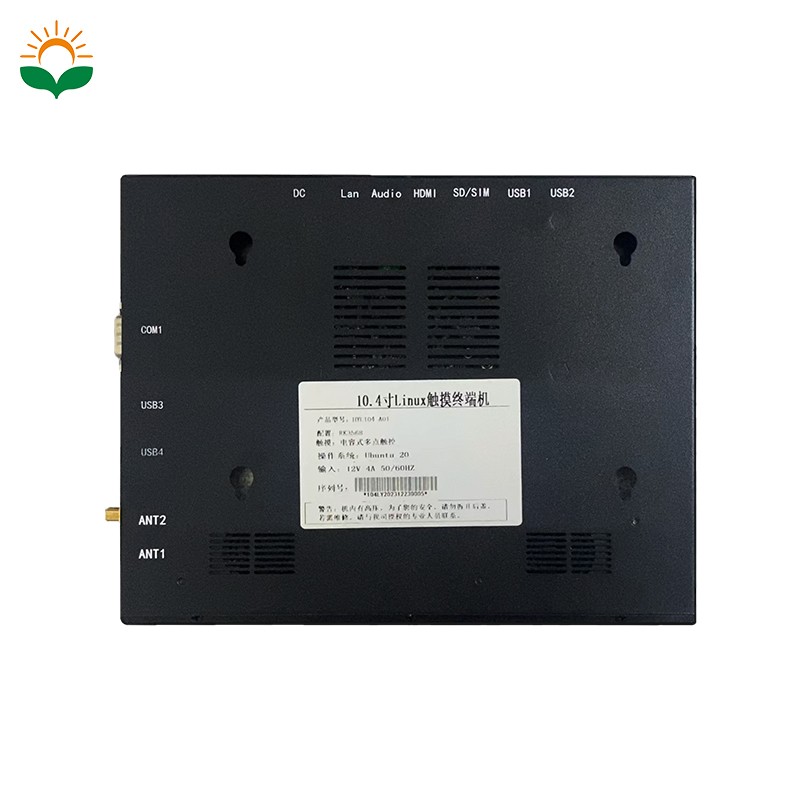

2, Product interface photos

Product Parameters

Display parameters

Parameters	Data	Instructions
Display size	10.4 inch	4:3
Resolution	1024*768
Colors	16.7M	-
Active Area dimenstion(A.A)	210.432(L)*157.824(W)mm	-
Overall Dimensions	242.63*190.02mm
Backlight brightness	450 nit	The brightness can be adjust by software
Backlight lifetime(Hrs)	50000Hrs	LED backlight
Viewing direction(CR>10)	Wide view angle
Touch type	Capacitive touch panel	Support single or multi-point touch
Working life	Single point can affordable ≥50 million times
Response time	8ms

Hareware parameters

CPU	RK3568 4 cores 64-bit Cortex-A55, maximum main frequency 2.0Ghz.
Memory	LPDDR4X 1GB/2GB/4GB/8GB (optional)
Storage	EMMC 8G/16/32G/64G/128GB (optional)
GPU	ARM G52 2EE support OpenGLES 1.1/2.0/3.2,OpenCL 2.0,Vulkan 1.1 Embedded high-performance 2D

Interface parameters

Display interface

HDMI OUT interface	HDMI2.0 Maximum supporting 3840x2160 output (inner supporting LVDS,EDP,MIPI)
Audio interface
Headphone holder interface	1 microphone mono input (analog signal input), 1 audio two-channel output (analog signal input)(microphone input)
Power amplifier interface	Left and right dual channel output, support 8Ω 10W dual speaker
Network support
Ethernet	1 standard RJ45 interface, (built-in 1 x 2.0mm-4P socket), 10/100M Ethernet adaptable
WIFI/BT	On-board WIFI/BT module, support WiFi 2.4GHz/5GHz dual-band WiFi6 (optional), support 802.11a/b/g/n/ac protocol, support Bluetooth 4.0 (support BLE)
Basic interface
USB 2.0/3.0	2 USB Host ports, 1 external standard USB 3.0 cradle, for external HD USB camera, USB flash drive, keyboard and mouse
USB OTG	OTG 1 USB OTG port for debugging the system, updating firmware,
Serial Port	1-way serial port, optional RS232 serial port , RS485 serial port.
GPIO Port	Built-in 5 IO ports, supporting input and output
On-board RTC	Built-in RTC: supports real-time clock, 1220 coin cell

Reliability parameters

Working temperature	-20°C~70°C
Storage temperature	- 30°C~80°C
Relative humidity	Humidity: 95%, Temperature:50℃
Vibration protection	IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
Front waterproof rating	The front panel can reach IP65 protected rating
