Embedded 8'' Inch NFC LCD Touch-screen Monitor Android 11.0 Capacitive Touch Panel 800x1280 Resolution IP65 Waterproof Plastic

Category： Android
INQUIRY EMAIL

Motherboard parameter

Main board model	RK3568
CPU/GPU	Quad-core 64-bit Cortex-A55, up to 1.8GHz ARM G52 2EE
Memore storage	2G+16G
System	Android 11.0

Display parameter

TFT display	8 inch
Resolution	800x1280
Brightness	230 CD/M2
Display ratio	16:9

Touch panel

Tempered glass	2mm Explosion-proof tempered glass
Touch type	Capacitive touch
anti-glare	Optional parameters, standard product this function "none"
Touch point	5 point
Touch accuracy	0.25

Interface

Network port signal	1x inoput
HDMI signal	1x input
Communication port	232
megaphone	Optional (dual channel 8 Euro 3W)
USB	3xusb input
WIFI	2.4GHz/BT 4.0
NFC	13.56 MHz
4G communication	NO
Camera	NO
Input volrage	1x DC 12V 3A/25W

Use environment

Working temperation	-10~60
Storage temperation	-10~70
humidness	5~90% @40° (non-condensing)
Vibration	SSD applied:1.5Grms,IEC 60068-2-64,random,5~500Hz,1 hr/axis
Strike	SSD applied:10G,IEC 60068-2-27, half sine wave, lasting 11ms

Appearance

Product weight	2KG
Product size	246.113127.2mm
Front panel waterproof	IP65

Product characteristics

1, supports horizontal/vertical screen playback (different software) to meet all the functions of the universal advertising machine
2, Supports hot swap of memory cards (SD cards, USB flash drives, etc.)
3, stereo hi-fi audio output
4, supports 1920x1080(1080P) full HD video files, pictures, and music. Specific support format
5, supports individual file playback, video + picture mixed playback, picture + music background playback, picture slideshow playback, etc
6, Supports free split screen. You can divide the screen area and add files freely by using the PC gadget software
7, Supports playlists, which play specified files in a predetermined order and at a predetermined time
8, supports video power-off memory. After the device is powered off and restarted, the video continues to be played from the breakpoint
9, You can choose a variety of loop playback modes, such as single repeat, folder repeat
10, Supports multi-segment timing switch Settings
11, Supports periodic on-off play Settings
12, Automatically plays when the system starts
13, Software upgrade function
14, Supports the copy function of network TF flash drive. Program files can be copied to the target disk via a USB flash drive
15, Automatically records and saves playback logs for easy query at any time
16, Chinese and English OSD languages are supported. Other languages can be customized
17, Rotates the screen 180 degrees to change the up and down Angle of view, and videos and pictures rotate with it without the need for separate production
18, Supports information publishing
19, Supports the HDMI input function
20, Supports WIFI.

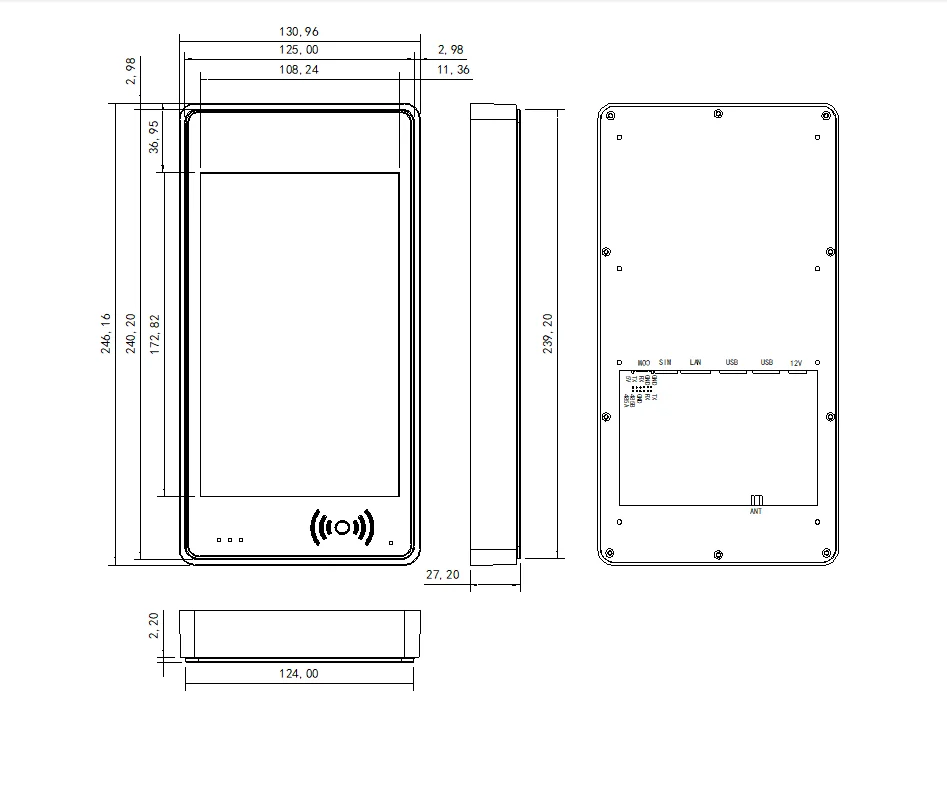

Product drawing

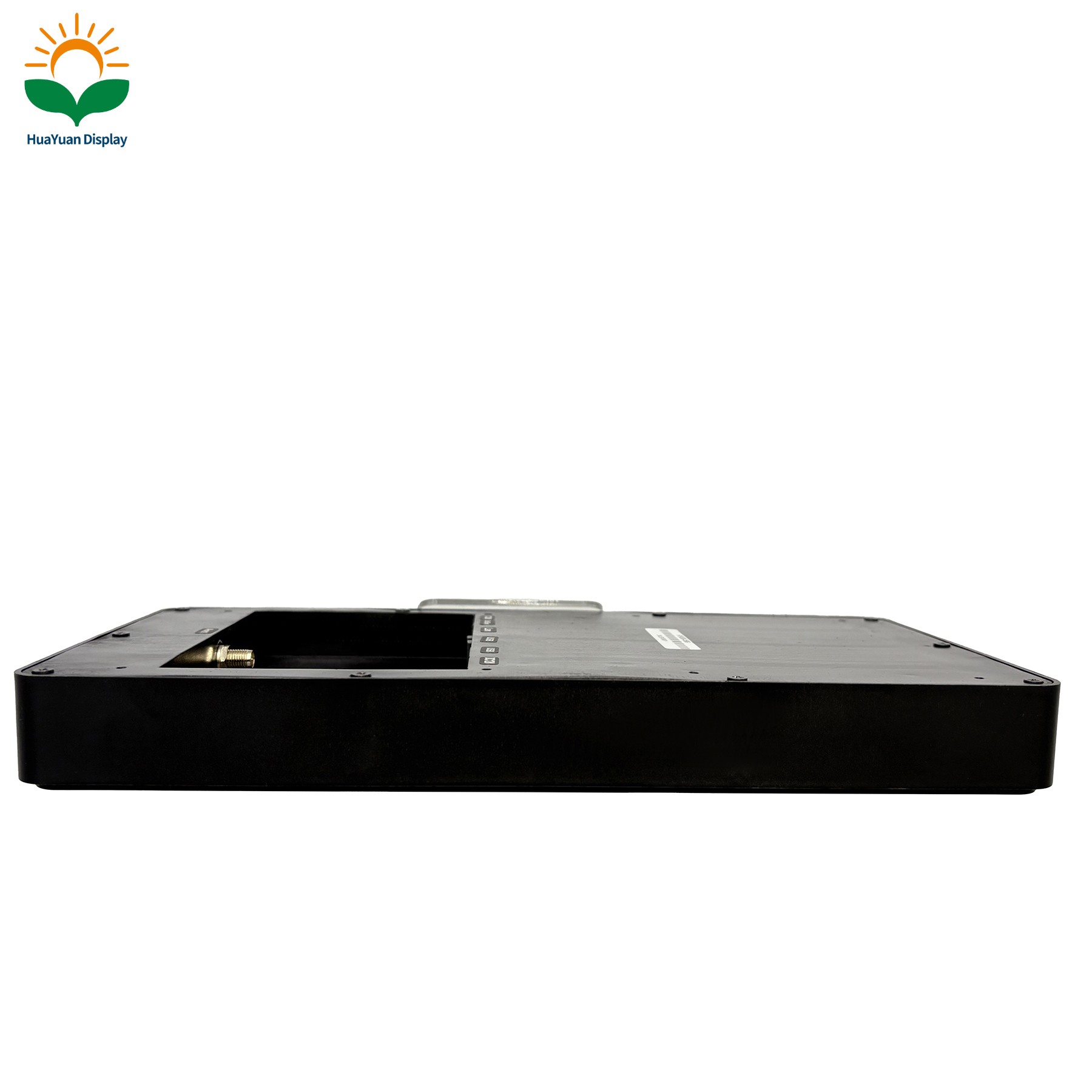

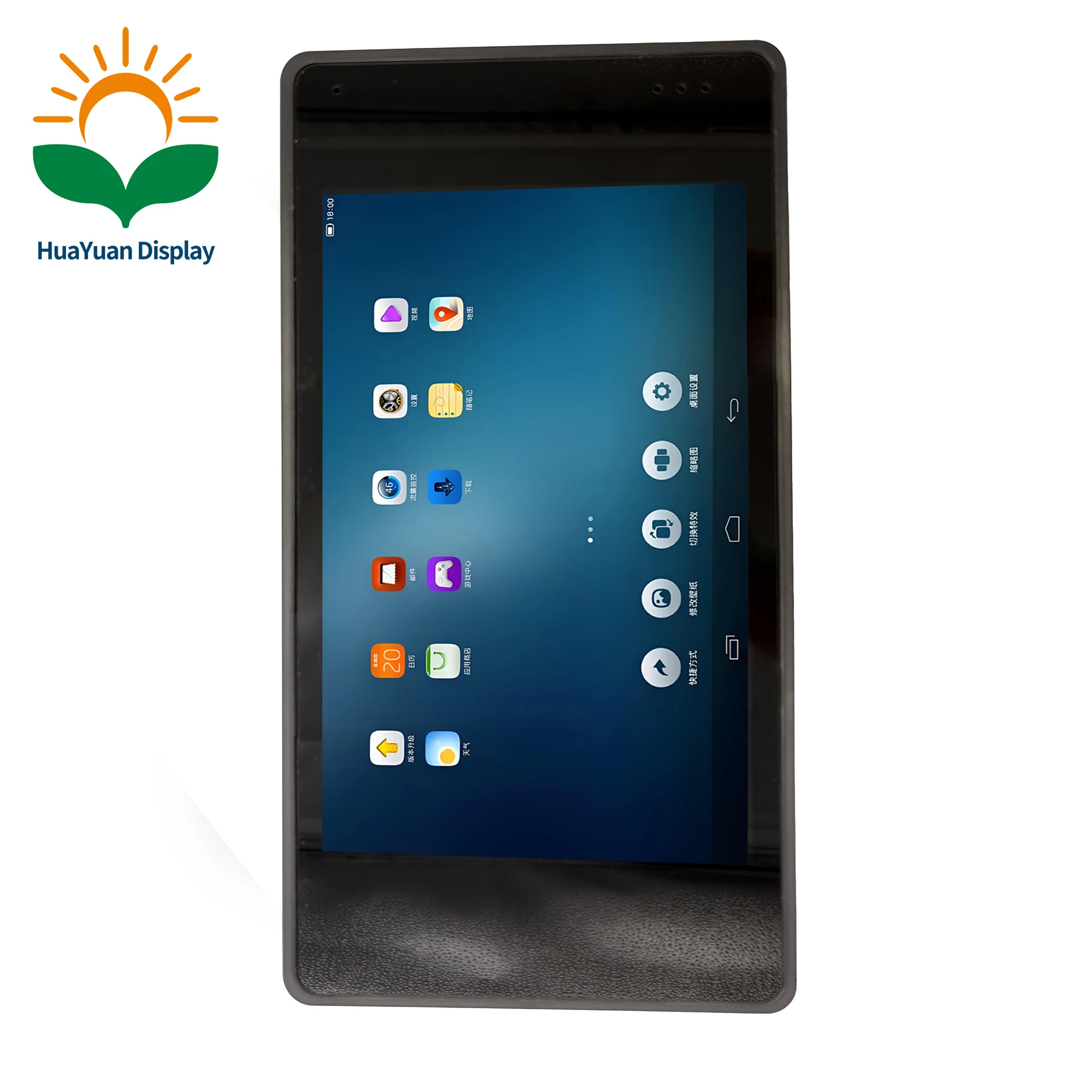

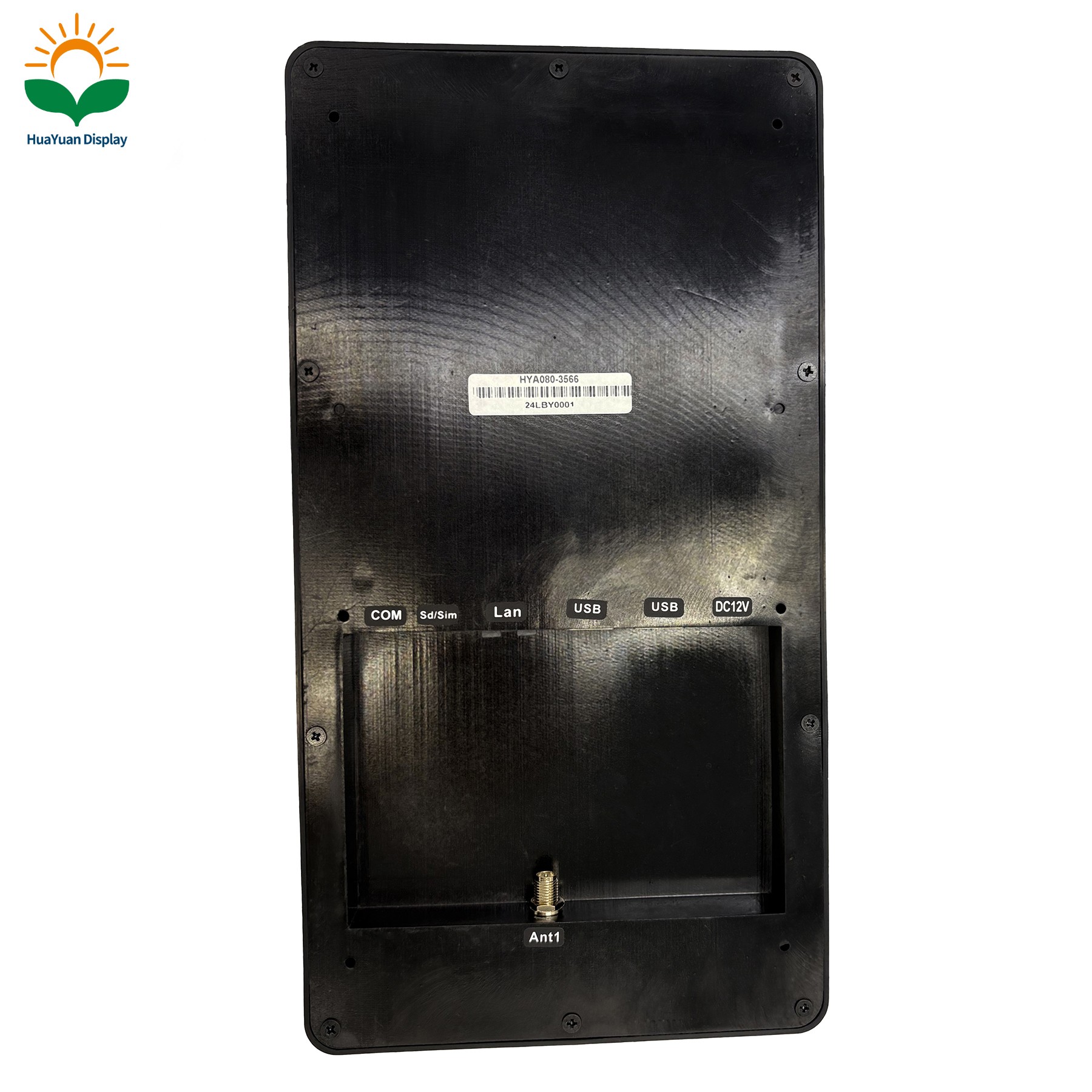

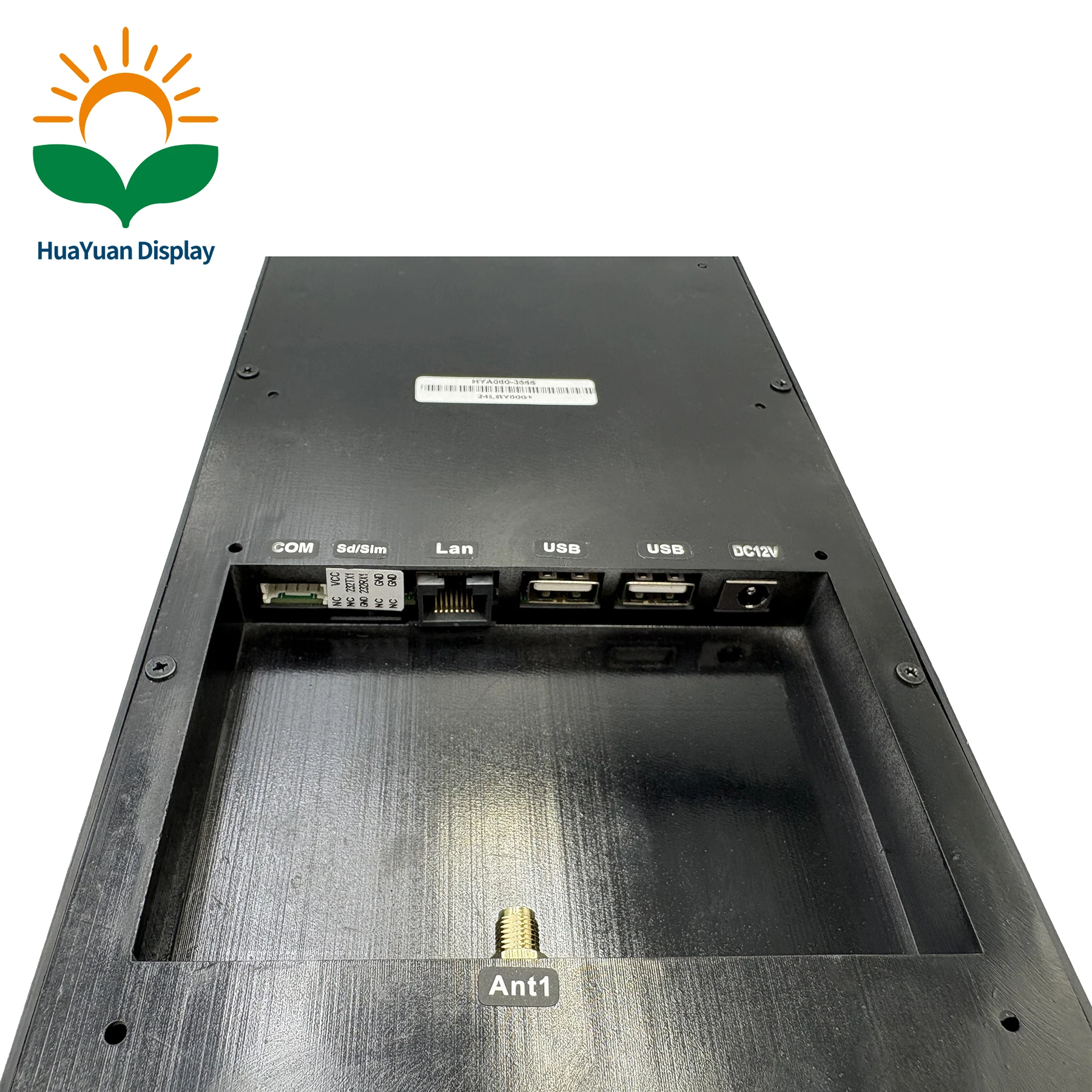

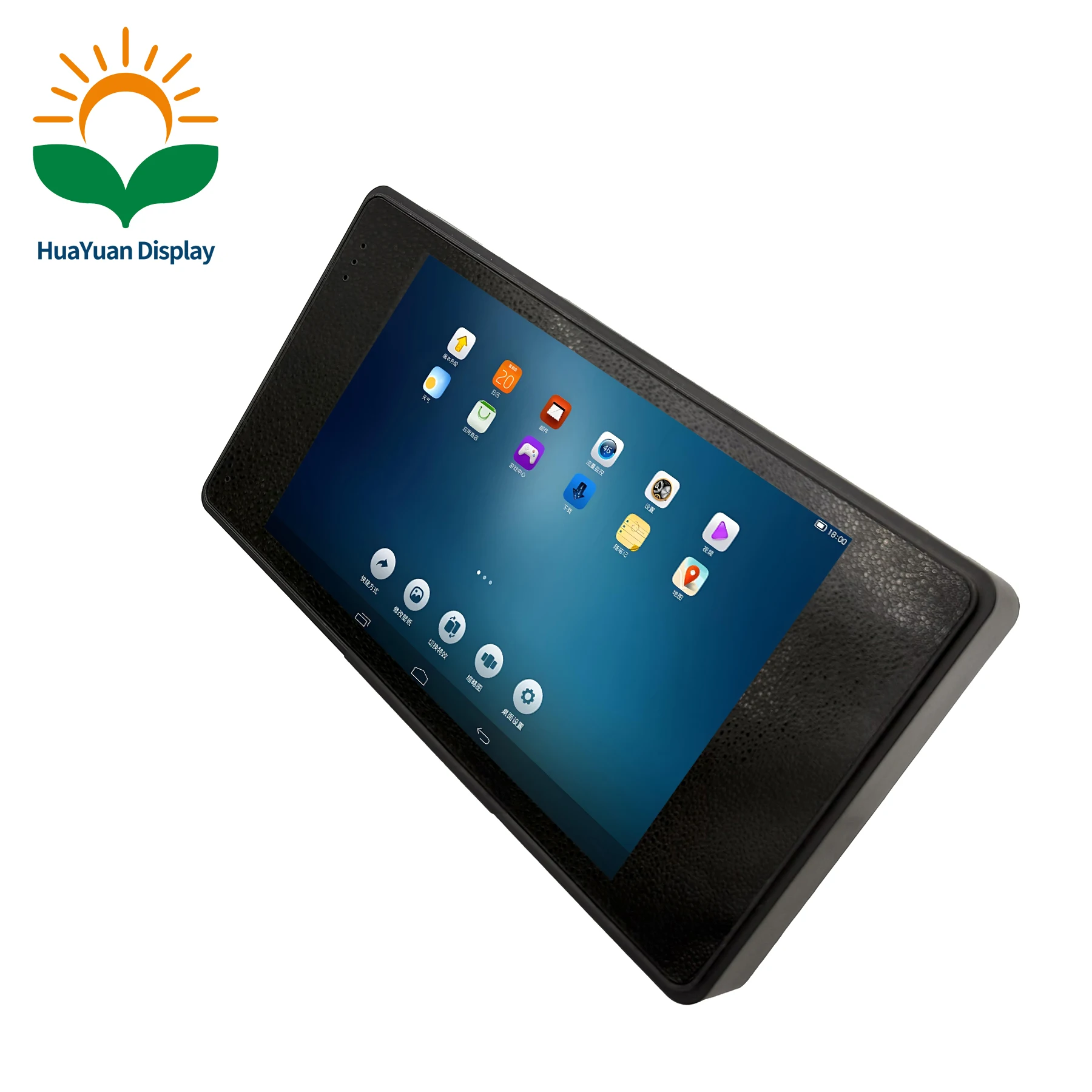

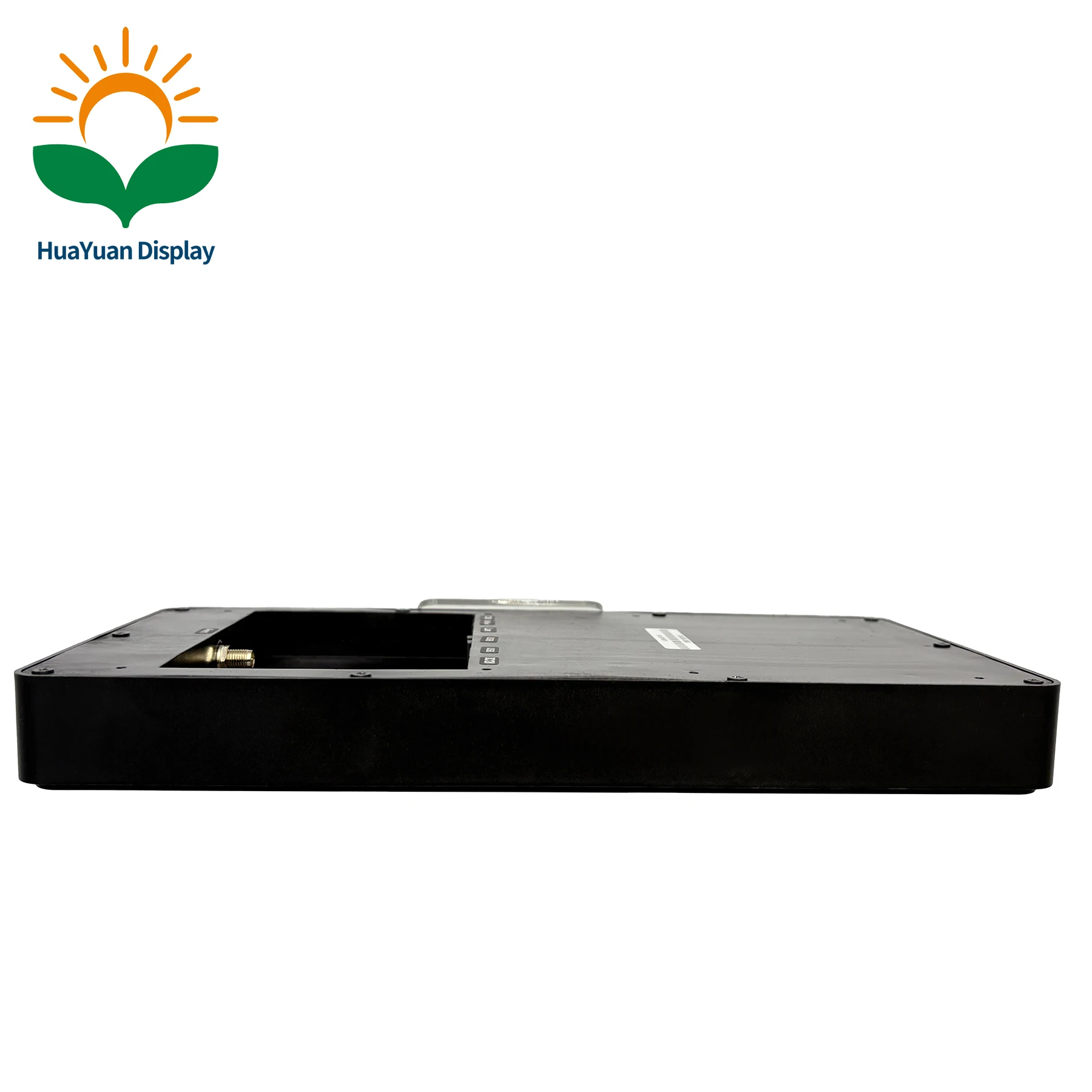

Product Show

Application

Autoelectronics, 3D&Shutter, Meters&Instrument, Telecommunication,
Domestic electrical appliance(Household appliance), Fuel dispensers, Office equipment,
Medical &health equipment, Business related facility, Education electronics.
