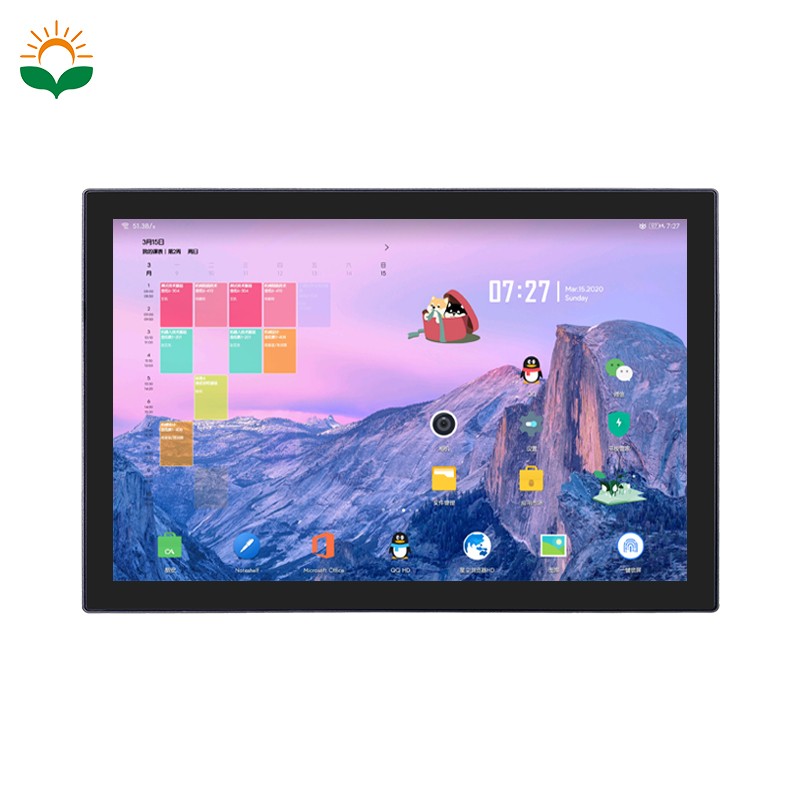

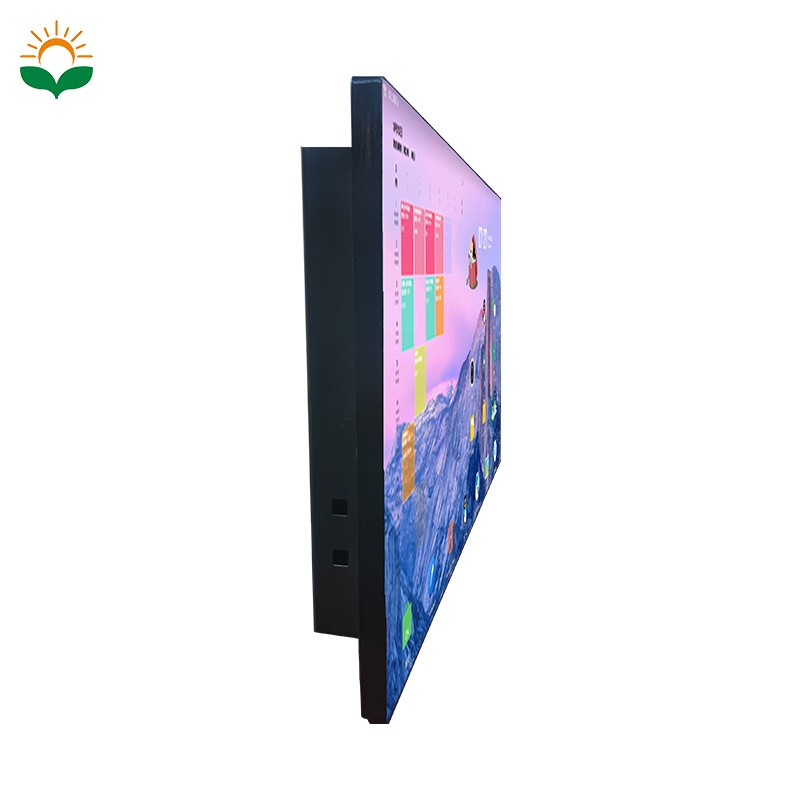

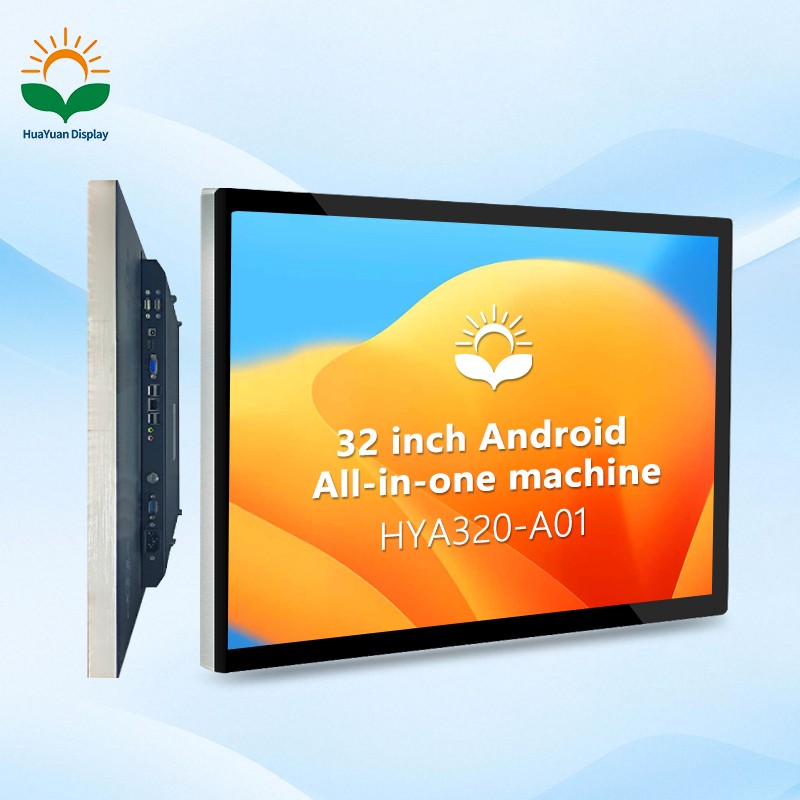

32 inch Android all-in-one touch screen monitor

Product introduction

Users can easily achieve human-computer interaction through Android

intelligent display terminals, and realize various personalized needs of

users through Android general APP, such as WIFI/4G Internet access,

Ethernet Internet access, web browsing, cloud interconnection, remote

control, remote data transmission, playing music, playing videos, playing

advertisements, etc. It can also communicate with external devices through

serial ports such as RS232 and RS485.

1.It can realize capacitive touch and display functions, realize

human-computer interaction, and achieve various personalized needs through

APP.

2.Support WIFI/4G/ Ethernet and other networking methods, can achieve

remote data transmission, cloud interconnection.

3.Multiple interfaces, support multiple RS232, RS485 and other different

serial port communication, to achieve the exchange of communication with

external devices.

4.Supports voice and video playback.

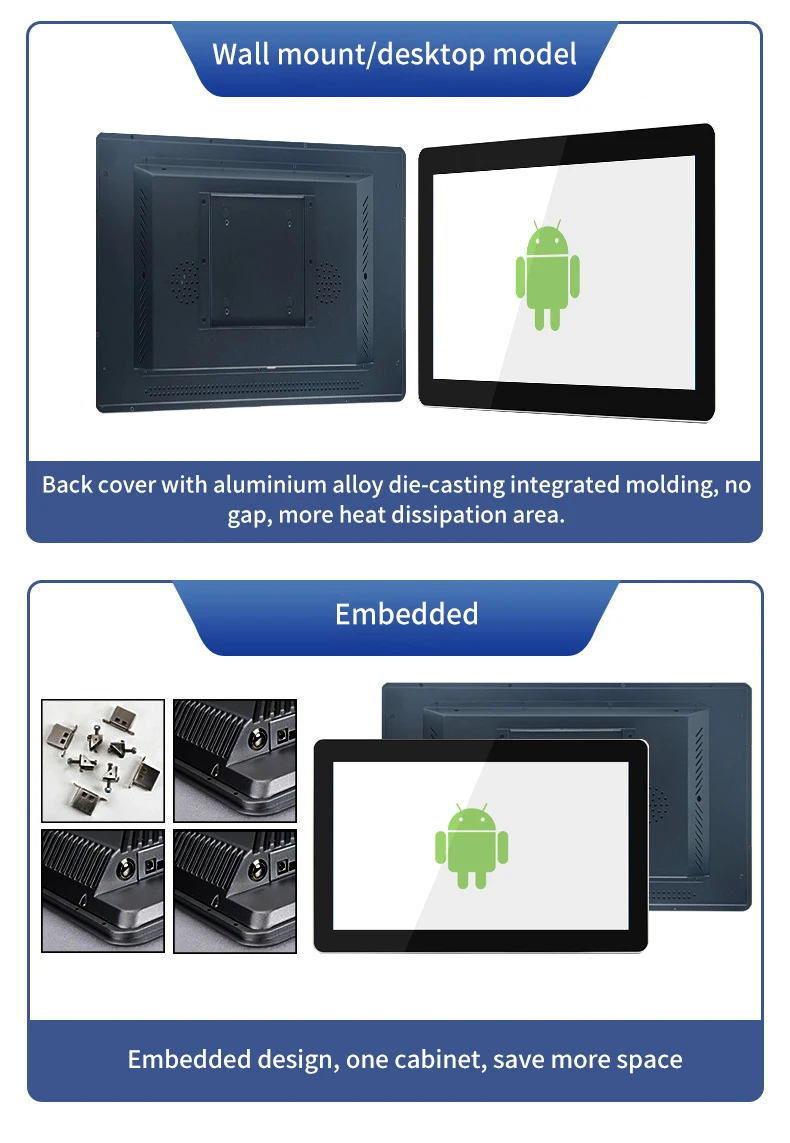

5.Industrial embedded design, easy to install.

Display parameters

Items	Specs	Marks
Size	32 inch	Screen ratio 16:9
Resolution	1920*1080
Color Depth	16.7M
Active Area	698(L)* 391.8(W) mm
Brightness	300-600 nit	The brightness can be adjustable
LCD lifetime	50000 Hrs	LED
Viewing direction(CR>10)	Wide view angle
Touch	Capacitive Touch	10 point touch
Lifetime	Single point touch ≥50 million times
Response time	8ms
Outline Dimensions	750.0(L)* 447.8(W) mm

Hareware parameters

CPU	RK3568
RAM	Standard 2G
ROM	EMMC standard 16G
GPU	ARM G52 2EE support OpenGL ES 1.1/2.0/3.2,OpenCL 2.0,Vulkan 1.1
Wifi	2.4 GHz
Bluetooth	BT 4.0
Operation system	Android 11
Others	Support RTC real-time clock, ,timing switch
Language	Chinese, English, French, German, Italian, Japanese, Korean, Russian, Spanish, Polish, Czech and many other languages.

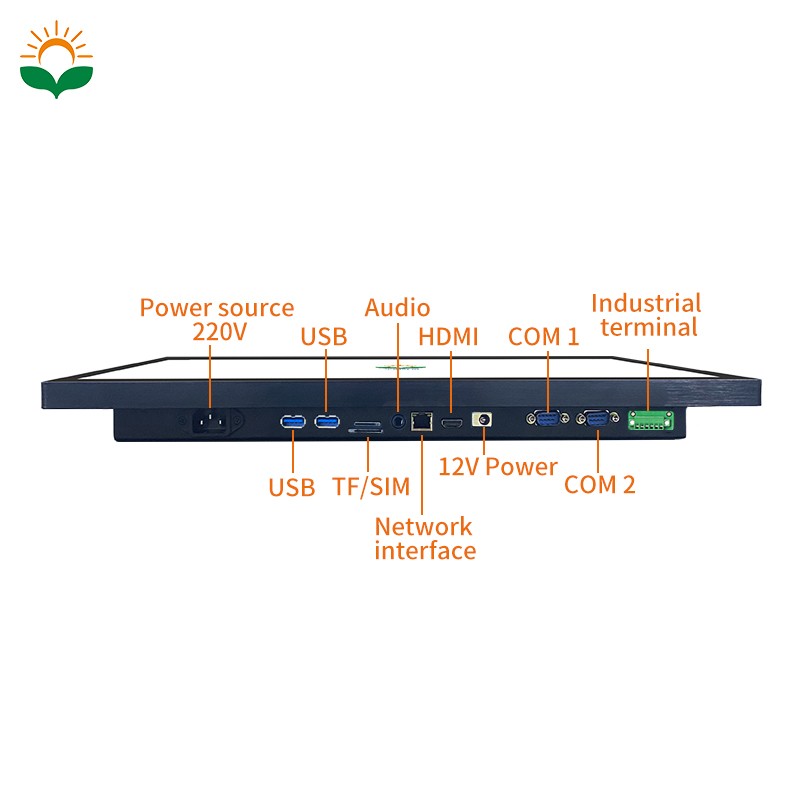

Interface parameters

Power interface	1 external DC12V input socket and one built-in 6P input socket(including external power STANDBY function)
Power interface	220V power interface
USB	6*USB HOST (two external,four built-in)
TF card	1*TF card with standard interface
SIM Card	/
HD-MI	1*HDMI A type standard interface output
Net interface	One standard external RJ45 interface.
Audio/video output	Support left and right channel output, built-in dual 8R/5 power amplifier
Reset key	Support(1*UBOOT)
COM	2*RS232(Optional RS485,TTL)

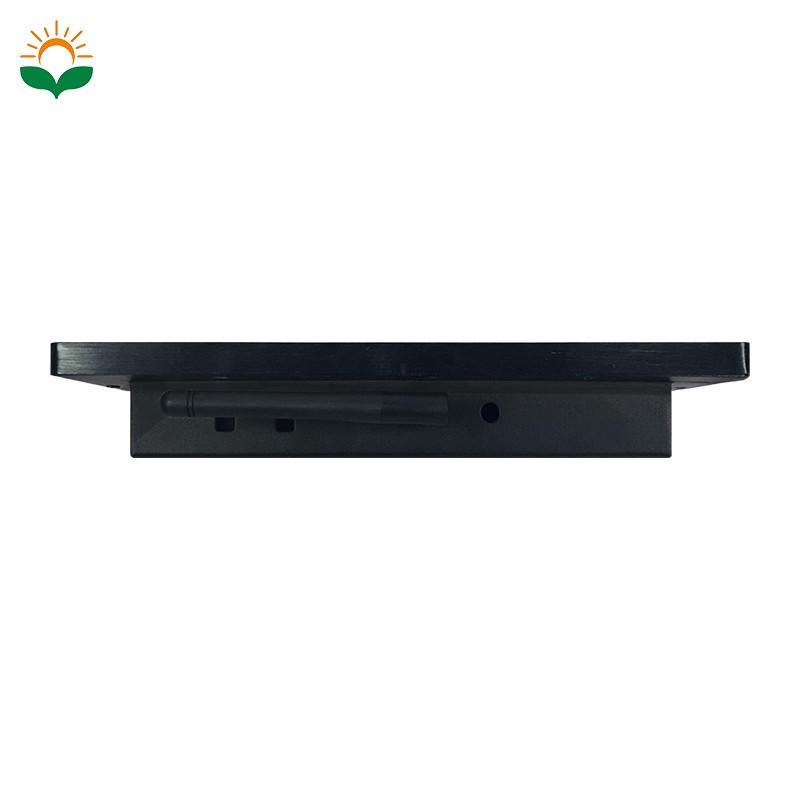

WIFI Antenna	1*WiFi antenna

Reliability parameters

Working temperature	-20°C~70°C
Storage temperature	- 30°C~80°C
Relative humidity	Humidity: 90%, Temperature:50℃
Vibration protection	10Hz-50Hz-10Hz Amplitude 1.5mm X,Y,Z each 3H
Front waterproof rating	The front panel can reach IP65 protected rating

Use instruction

7, (3).jpg

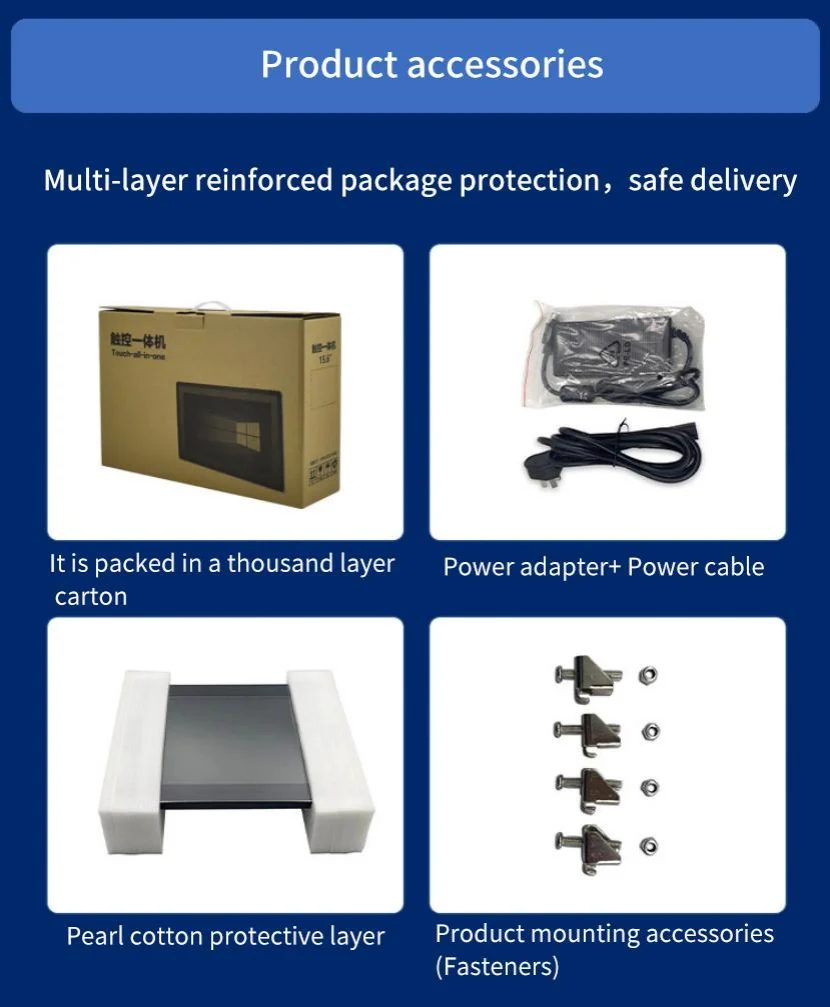

Package method
