Customized Industrial 32 Inch Windows All-in-one Machine Win 10 LCD Display 1080p Open Frames

Customized Industrial 32 Inch Windows All-in-one Machine Win 10 LCD Display 1080p Open Frames

Category： Windows
INQUIRY EMAIL

Product introduction

WINDOWS system industrial touch all-in-one computers are mostly suitable for automated high-end human-machine interface operating platforms. The casing is designed with an aluminum alloy/sheet metal structure. The front panel of the aluminum alloy industrial tablet computer uses a high-standard LCD screen and touch screen to fit seamlessly. It complies with IP65 dustproof and waterproof standards and has the advantages of low power consumption, high integration, good stability, complete communication I/O, easy installation, beautiful appearance, thin and light, and takes up little space. This product adopts panel embedded installation, making installation and maintenance very convenient.

Product feature

1,It realizes Human-Machine Interaction and various personalized needs through APP;

2,It supports multiple networking methods such as WIFI/4G/Ethernet, which can realize remote data transmission and cloud interconnection;

3,Multiple interfaces, supporting multiple RS232, RS485 and other different serial port communications to achieve communication with external devices;

4,It supports voice and video playback;

5,It supports video advertising playback and improve operating income;

6,It’s easy to install with industrial embedded design;

Product Show

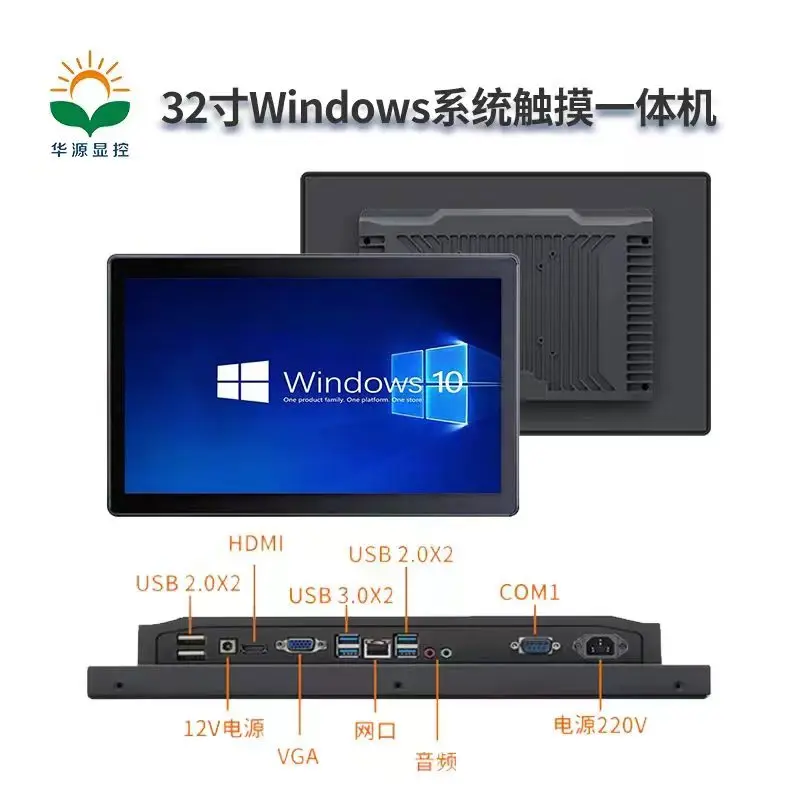

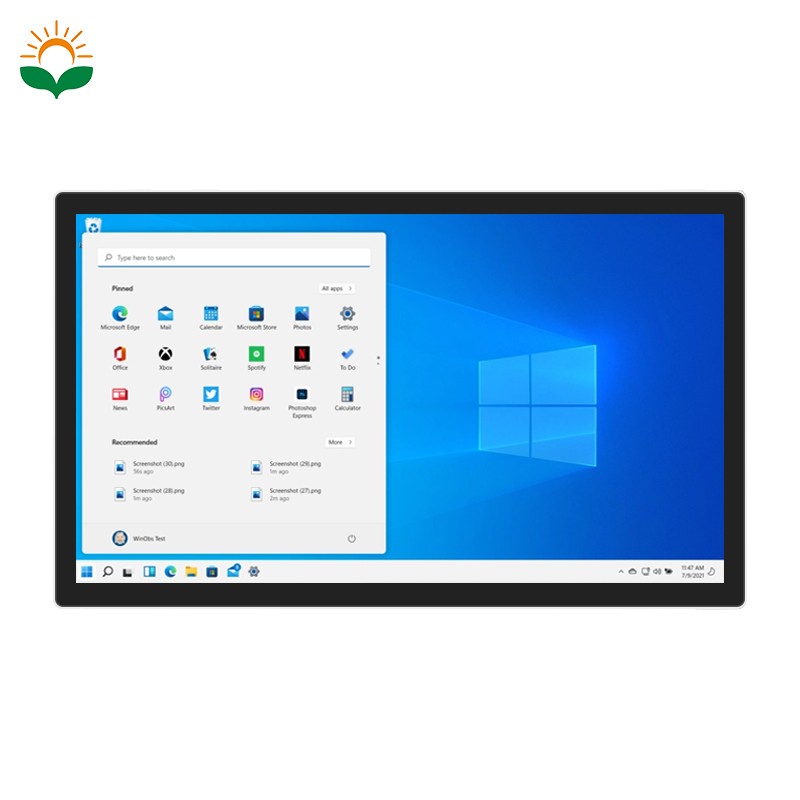

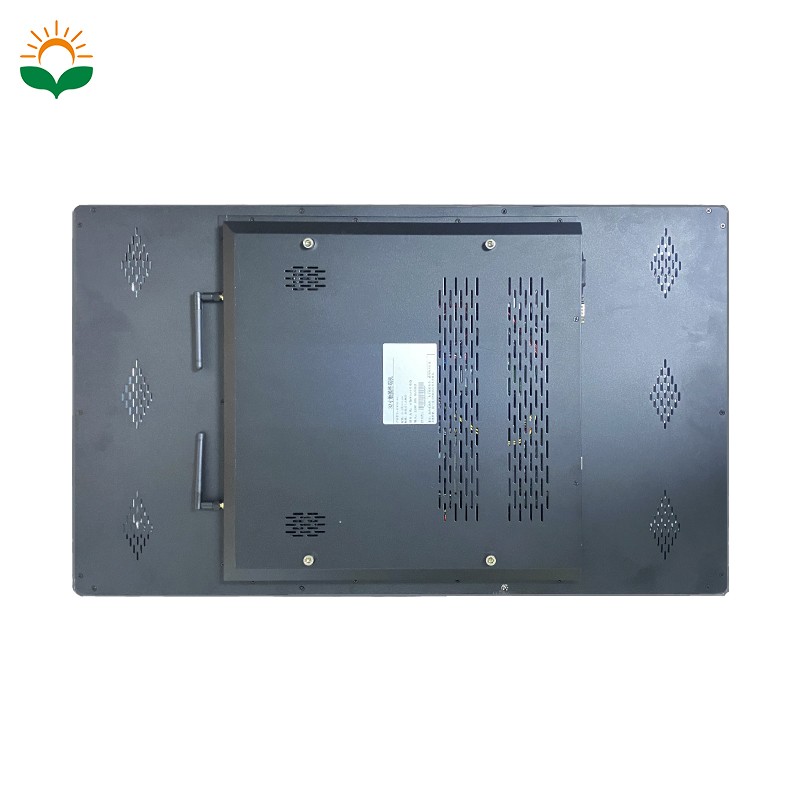

1, Overall product photos 32'' windows.jpg

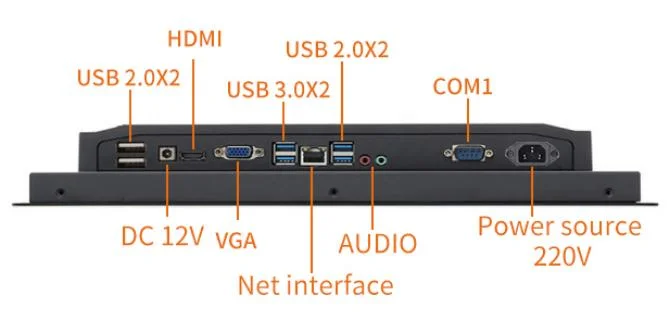

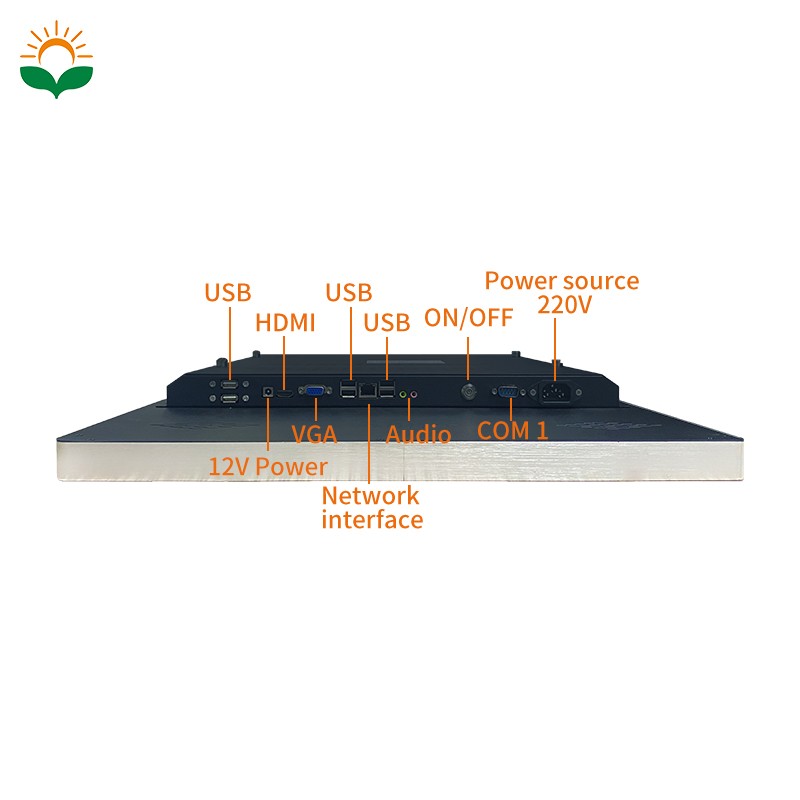

2, Product interface photos

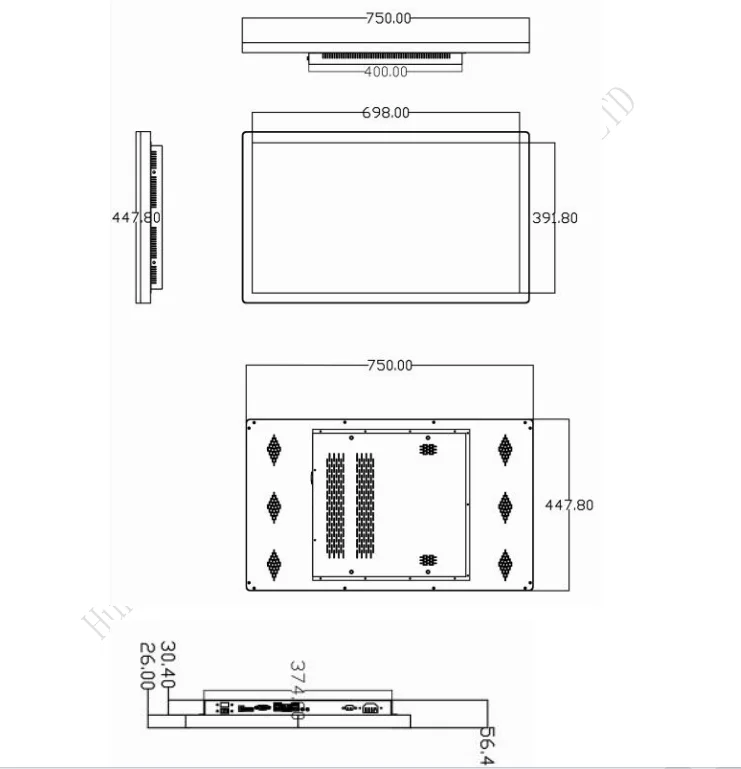

3, Product structure drawing

Product Parameters

Display parameters

Items	Specs	Marks
Size	32 inch	Screen ratio 16:9
Resolution	1920*1080
Color Depth	16.7M
Active Area	698.4*392.85mm
Brightness	300-600 nit	The brightness can be adjustable
LCD lifetime	50000 Hrs	LED
Viewing direction(CR>10)	IPS	85/85/85/85 (Typ.)
Touch	Capacitive Touch	10 point touch
Input	Handwriting or capacitive pen
Lifetime	Single point touch ≥50 million times
Response time	8ms
Outline Dimensions	750*447.8mm

Hareware parameters

CPU	Intel I3-2/I5-2/I7-2/I3-3/I5-3/I7-3
RAM	2GB/4GB/8GB DDR3
ROM	64GB/ 128GB/256GB/512GB
System	Windows 10, Windows 8,Windows 7,Windows XP,Linux
Video	H.265, H.264 VP8, MAV , WMV , AVS , H.263 , MPEG4 1080P/2160P Multiple video decoding
Picture	JPG BMP PNG rotate/slideshow/Picture Enlargement
Internet	4G, Ethernet,WIFI,Support peripheral expansion
Resolution	1080P
RTC time	Yes
Time Switch	Yes
System upgrade	SD card/laptop

Interface parameters

USB	USB2.04, USB3.02
Power	220V
RJ45	1*Realtec8 111F Gigabit interface,network wake-up
VGA	Standard DB15
HDMI	HDMI output, max 1080p
Headphone	Output 3.5mm standard interface
Serial	COM1, RS232
DC Terminal	12-36V power supply
WIFI	Standard WIFI, automatic connection

Reliability parameters

Working temperature	-20°C~70°C
Storage temperature	- 30°C~80°C
Relative humidity	Humidity: 90%, Temperature:50℃
Vibration protection	10Hz-50Hz-10Hz Amplitude 1.5mm X,Y,Z each 3H
Product certification	CCC/CE/FCC/EMC/CB/ROHS
Front waterproof rating	The front panel can reach IP65 protected rating

Use instruction

Package method

.png
