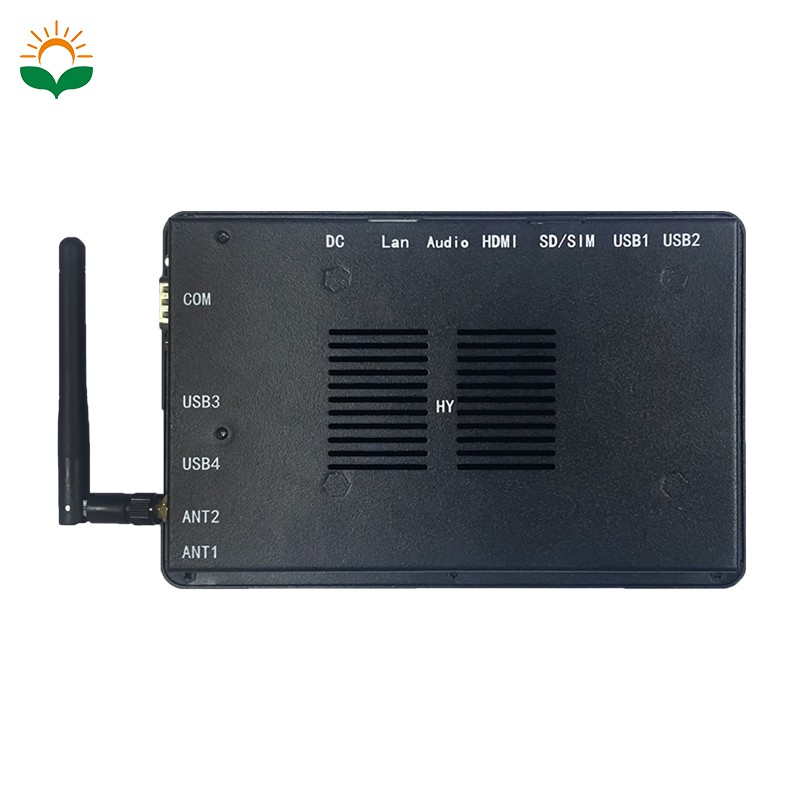

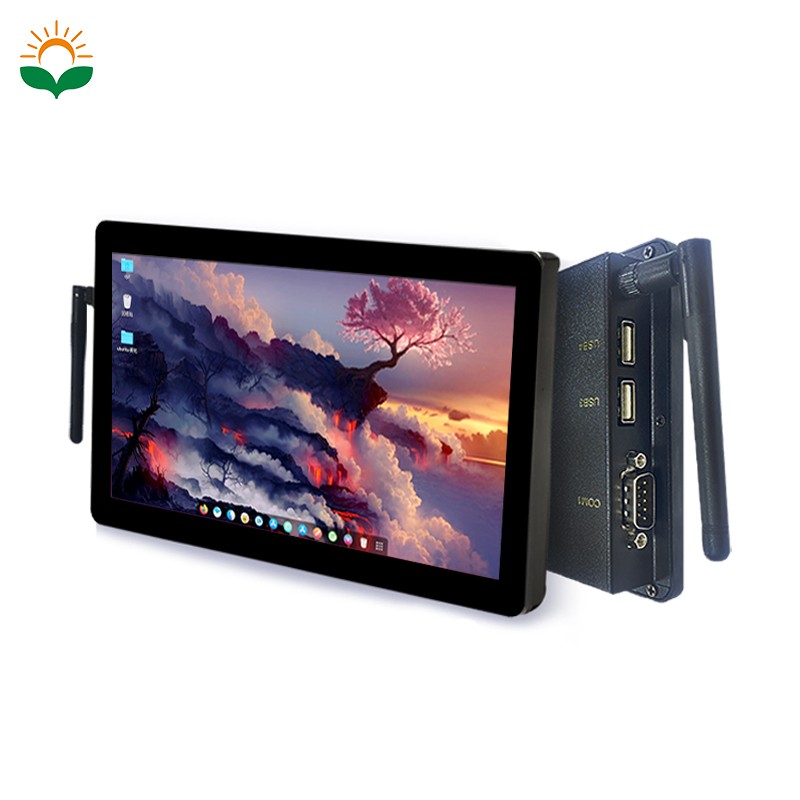

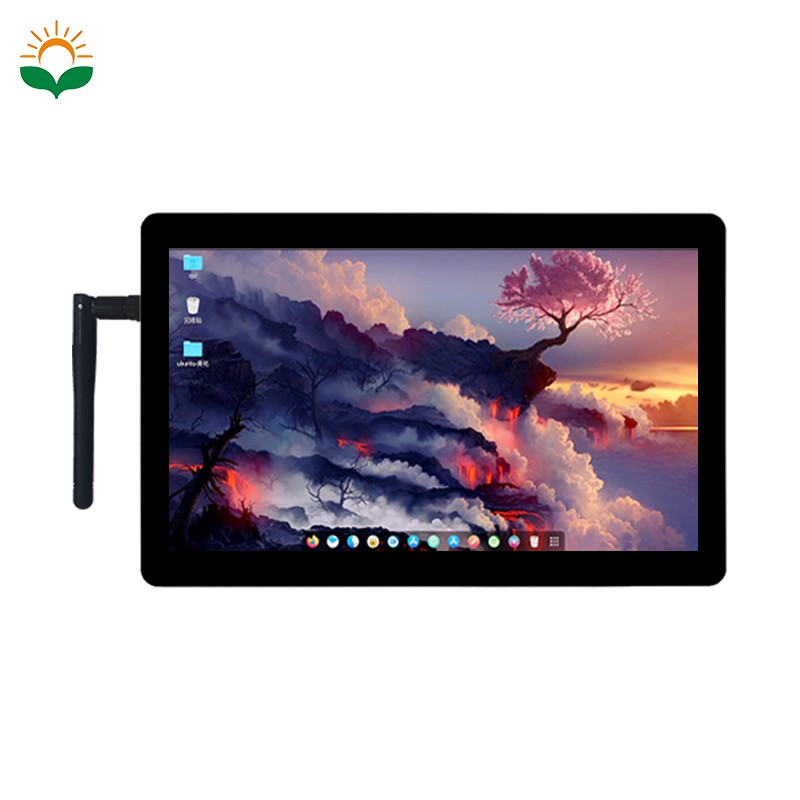

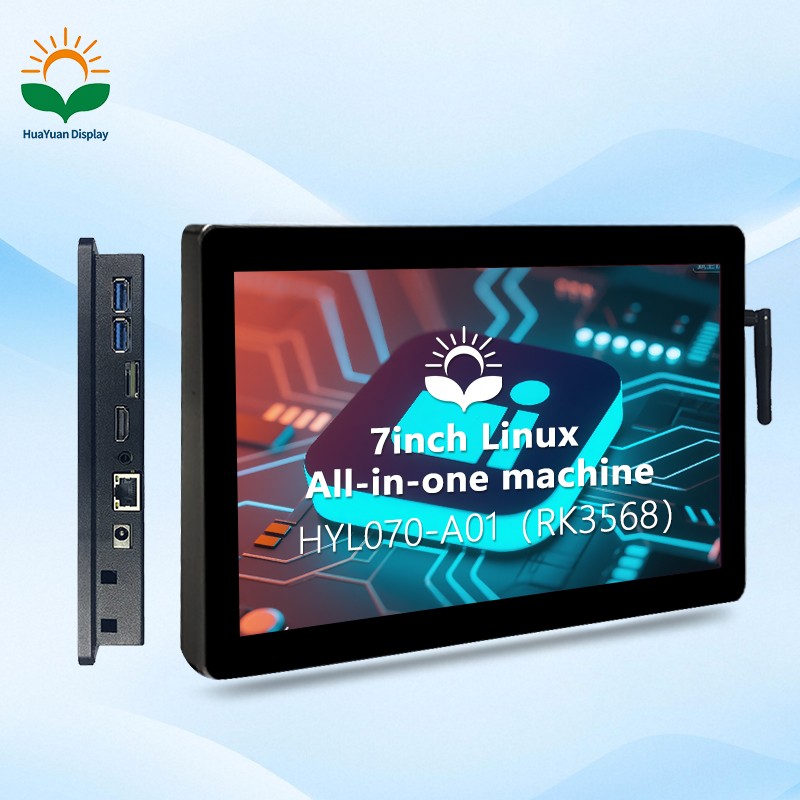

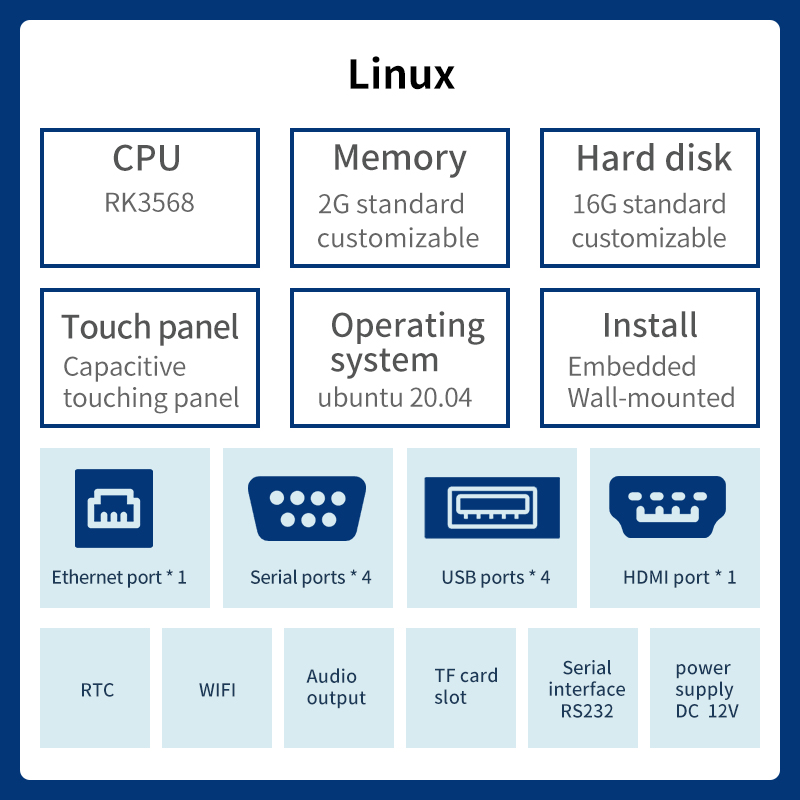

7Inch Linux All-In-One Touch Screen HYL070-A01 adapts RK3568 mainboard，resolution is 1024X600，supports LCD display driver interface，supports TF card，Ethernet，USB3.0，RS485，RS232 COM port，BT\WIFI and others.Meanwhile，various interfaces are customizable, meeting the needs of customers in various environments.
Mainly used in industrial automation, medical equipment, smart home, commercial equipment, buildings, transportation fields, etc.

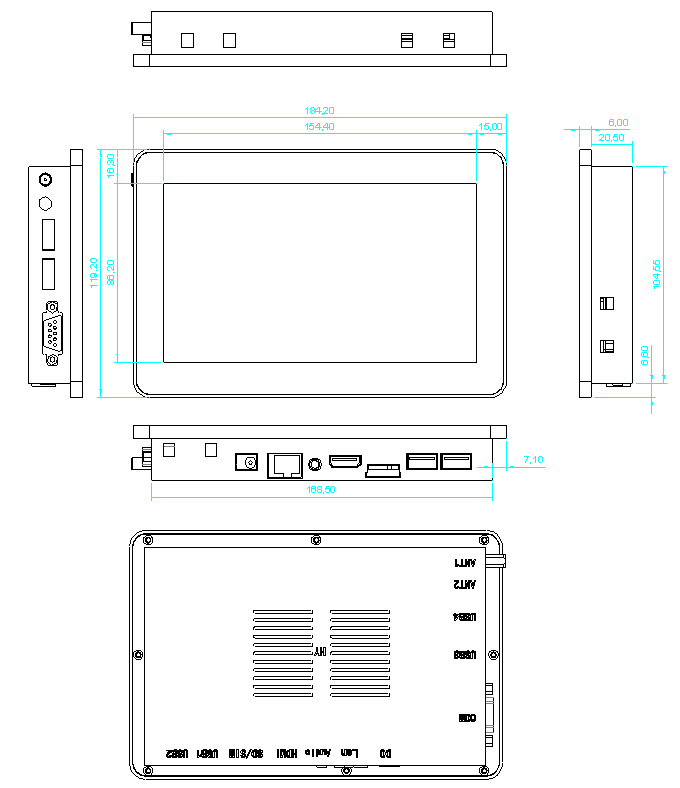

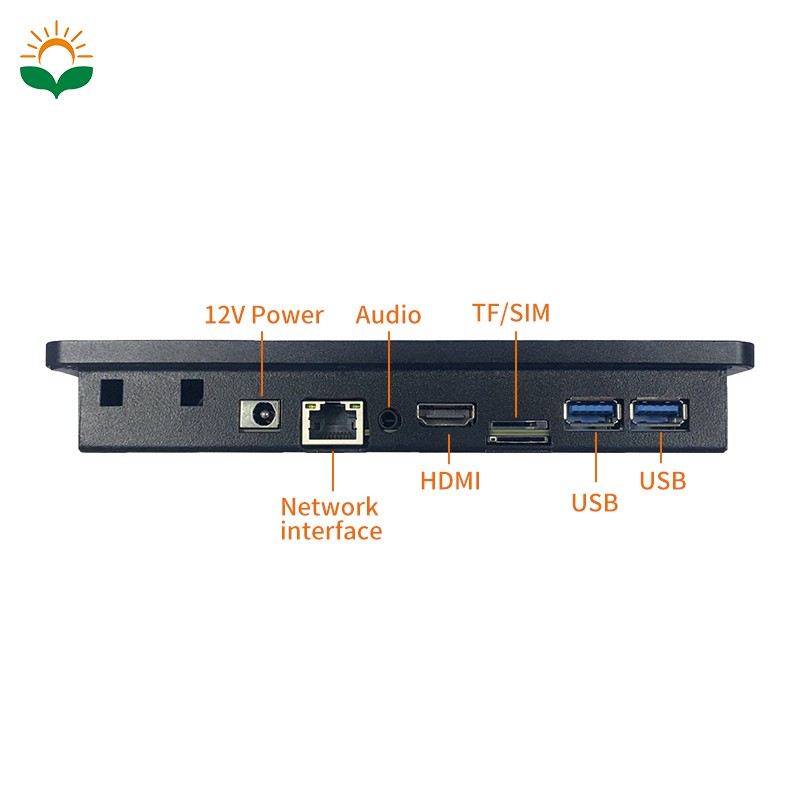

Product structure diagram
LCD parameters
|
Specification |
Data |
Description |
|
Screen size |
7 Inch |
Ratio: 16：9 |
|
Resolution |
1024*600 |
|
|
Color |
16.7M |
- |
|
Display size |
154.4(L)*86.2(W) mm |
- |
|
Overall dimensions |
184.20(L)*119.20(W)mm |
- |
|
Backlight brightness |
500cd/m2 |
Adjusted by PWM |
|
Backlight life(Hour) |
50000Hrs |
LED Backlight |
|
Viewing angle(CR>10) |
Wide viewing angle |
Panel type：IPS |
|
Touching type |
Capacitive touch |
Single-point touch/ Multi-point touch |
|
Service life |
Touching times≥50 million times |
|
|
Response time |
8ms |
|
