8‑Inch Embedded HDMI Monitor for Industrial & Self‑Service Terminal Applications

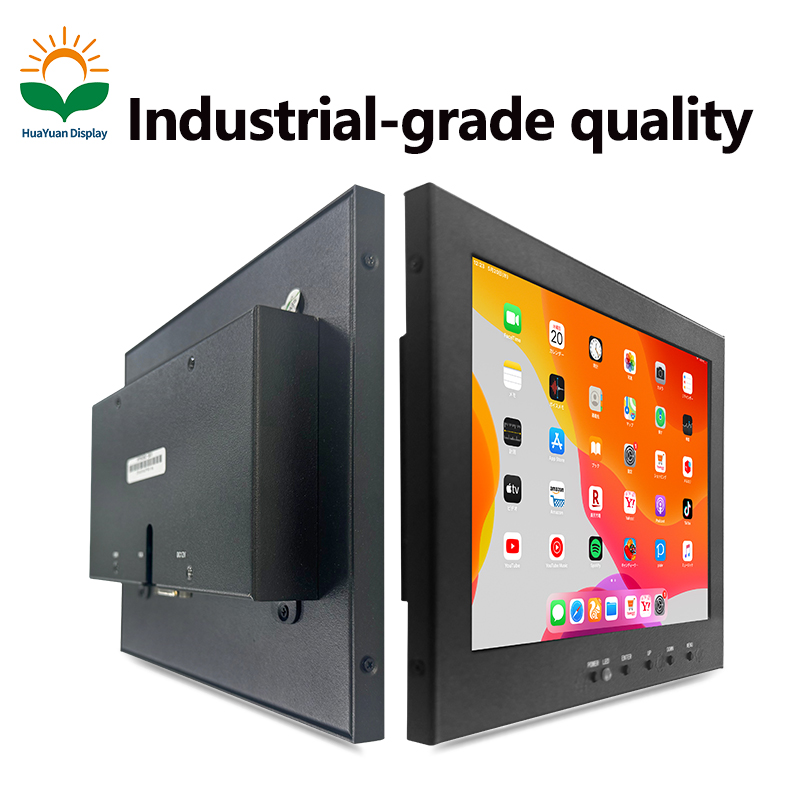

Hunan Huayuan Display Technology Co., Ltd. has launched the HYH080‑T01, an 8‑inch embedded HDMI industrial monitor. Optimized for industrial automation equipment, commercial self‑service terminals and single‑board computer setups, this display solution facilitates rapid development and mass deployment of end‑user devices.

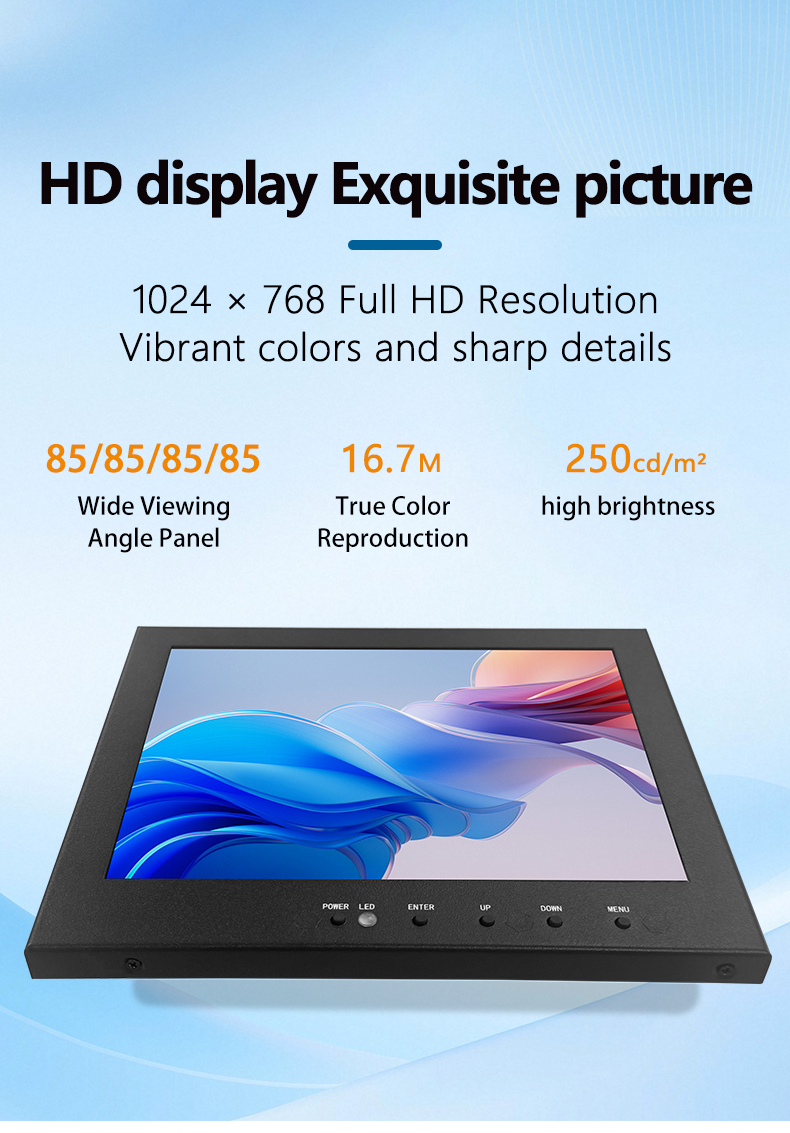

Featuring a 4:3 TFT panel with 1024×768 resolution, 16.7 M colors, 250 cd/m² brightness and 50,000‑hour backlight lifespan, the monitor delivers sharp and delicate visuals with 85° viewing angles on all four sides, well‑suited for embedded installation inside control cabinets and self‑service equipment. It supports dual‑input of HDMI and VGA with intelligent signal switching. Powered by 12 V DC, the unit consumes less than 5 W at maximum power, making it ideal for long‑duration continuous operation. It is fully compatible with Raspberry Pi, Android, Linux, Windows, industrial PCs and TV boxes.

Built for harsh working conditions, the monitor operates from ‑10 °C to +70 °C and can be stored between ‑20 °C and +70 °C. It has passed EMC Class B and Level‑3 ESD tests to withstand

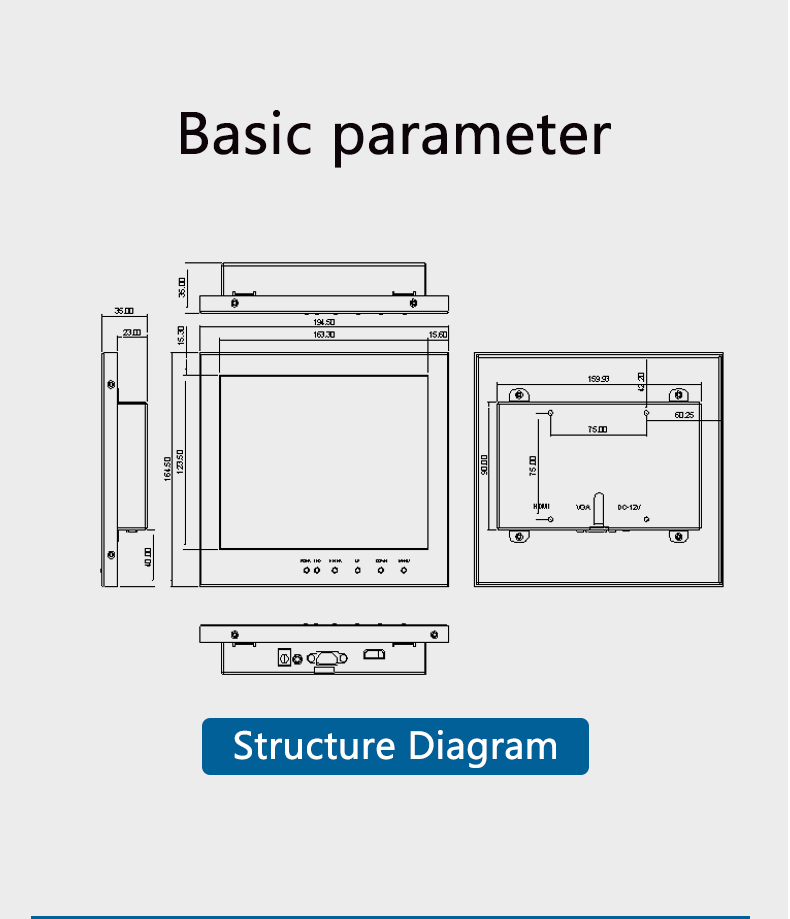

electromagnetic interference and temperature fluctuations in factory workshops and public commercial spaces. The plastic‑and‑sheet‑metal industrial housing comes with standard overall dimensions and cut‑out dimensions for easy mechanical integration. HDMI cable and 12 V DC power adapter are included to accelerate customer evaluation and project debugging.

Three core application scenarios are targeted. First, industrial automation equipment: serving as HMI display units for control cabinets and testing instruments to visualize operational parameters. Second, commercial self‑service terminals: delivering information display interfaces for compact self‑service devices. Third, embedded single‑board solutions: offering plug‑and‑play display support for platforms such as Raspberry Pi.

The product is covered by a 12‑month warranty with complete operation guidelines provided. Huayuan Display will keep focusing on small‑to‑medium‑size embedded displays and deliver reliable hardware plus technical support for industrial and self‑service industries.
