5‑Inch Industrial TFT‑LCD Module for Vending Machine Intelligent Upgrade

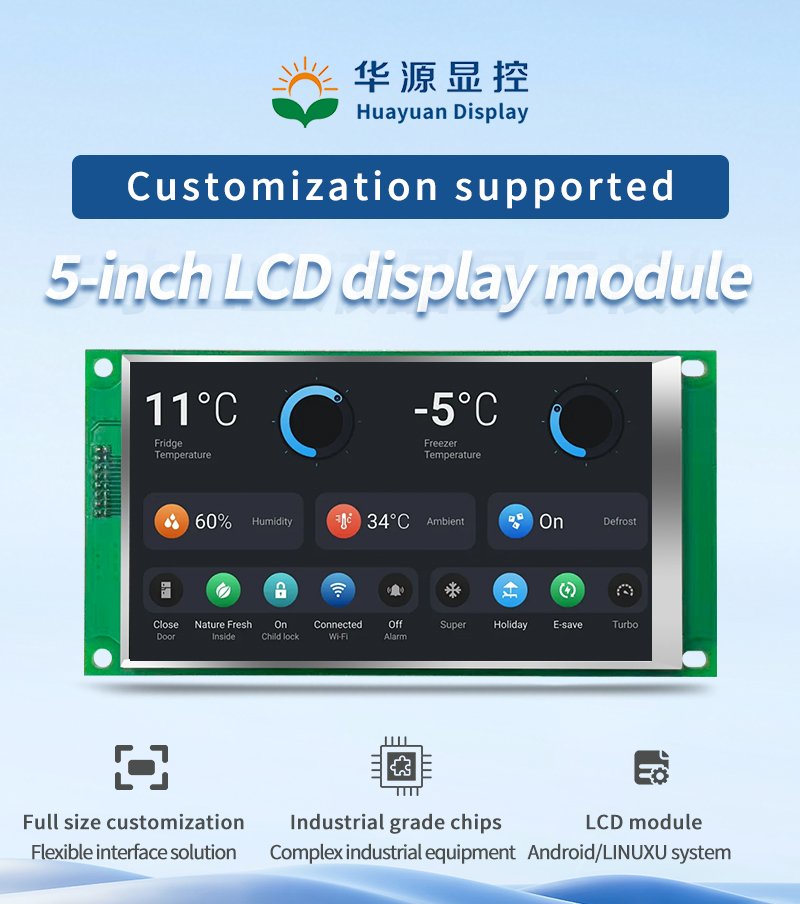

Hunan Huayuan Display Technology Co., Ltd. has released the GH854480‑50M11, a 5‑inch TFT‑LCD module tailored for vending machines and compact self‑service terminals, delivering robust industrial‑grade display solutions to boost cost‑efficiency for unmanned retail devices.

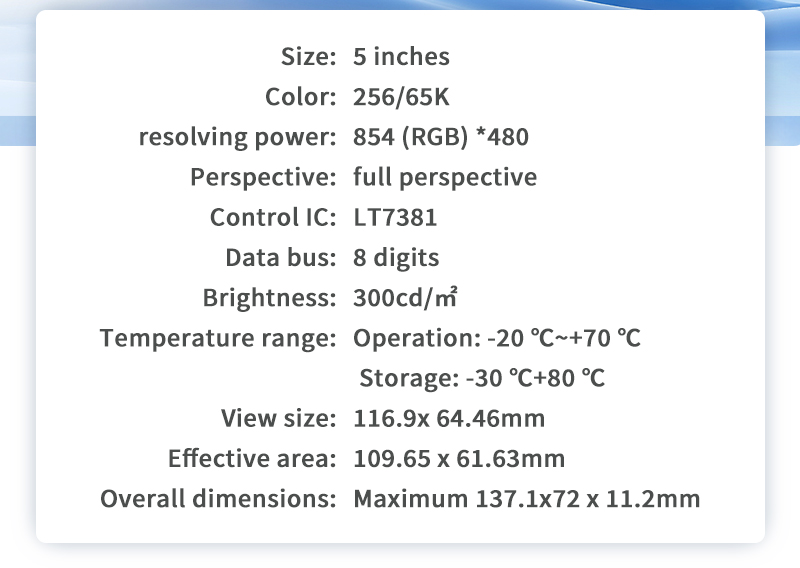

Vending machines are widely deployed in office buildings, factories and semi‑outdoor environments, subject to drastic temperature shifts, multi‑angle viewing requirements and long‑hour continuous operation. Featuring 854×480 resolution, 262K colors and 300 cd/m² brightness with full‑viewing‑angle performance, the GH854480‑50M11 enables customers to clearly view product lists, pricing and interactive prompts from various perspectives for improved shopping experience.

Supporting a wide operating temperature range from ‑20 °C to +70 °C and storage temperature from ‑30 °C to +80 °C, the module resists display anomalies caused by cabinet temperature fluctuations and seasonal changes. Equipped with the LT7381 controller IC and 8‑bit data bus, it adopts standard 3.3 V logic power supply with well‑defined pin interface, simplifying integration with mainboard controllers and shortening product development cycles.

The module has passed comprehensive reliability validations including high‑low temperature, temperature‑humidity cycling, thermal shock and vibration tests to support 7×24‑hour continuous commercial operation. Its compact mechanical outline facilitates embedded installation for vending machines. Complete guidelines for ESD protection, soldering and assembly help reduce manufacturing defects and on‑site maintenance workload.

Beyond vending machines, this display module is also suitable for small‑size self‑service terminals and industrial HMI equipment. Huayuan Display keeps focusing on small‑sized industrial display segments, providing dependable hardware and technical support for unmanned retail to drive the high‑quality development of smart retail.
