13.3” 1920×1080 Display with RK3576 Selection configuration

Industry-Selection Criteria & Interface Recommendations (English Version, ready for customers)

1. Industrial HMI / Automation (HMI, production terminals, machine vision)

Selection Criteria

1. Operating temperature: -20℃ ~ 70℃ wide temperature range (avoid standard 0℃ ~ 50℃ models)

2. Brightness: ≥ 400 cd/m², anti-glare for workshop environments

3. Touch: Industrial capacitive/resistive touch, anti-interference, water & oil resistant

4. Stability: Watchdog timer, auto reboot, 7×24 hours continuous operation

5. AI performance: Built-in 6 TOPS NPU for barcode scanning and defect detection

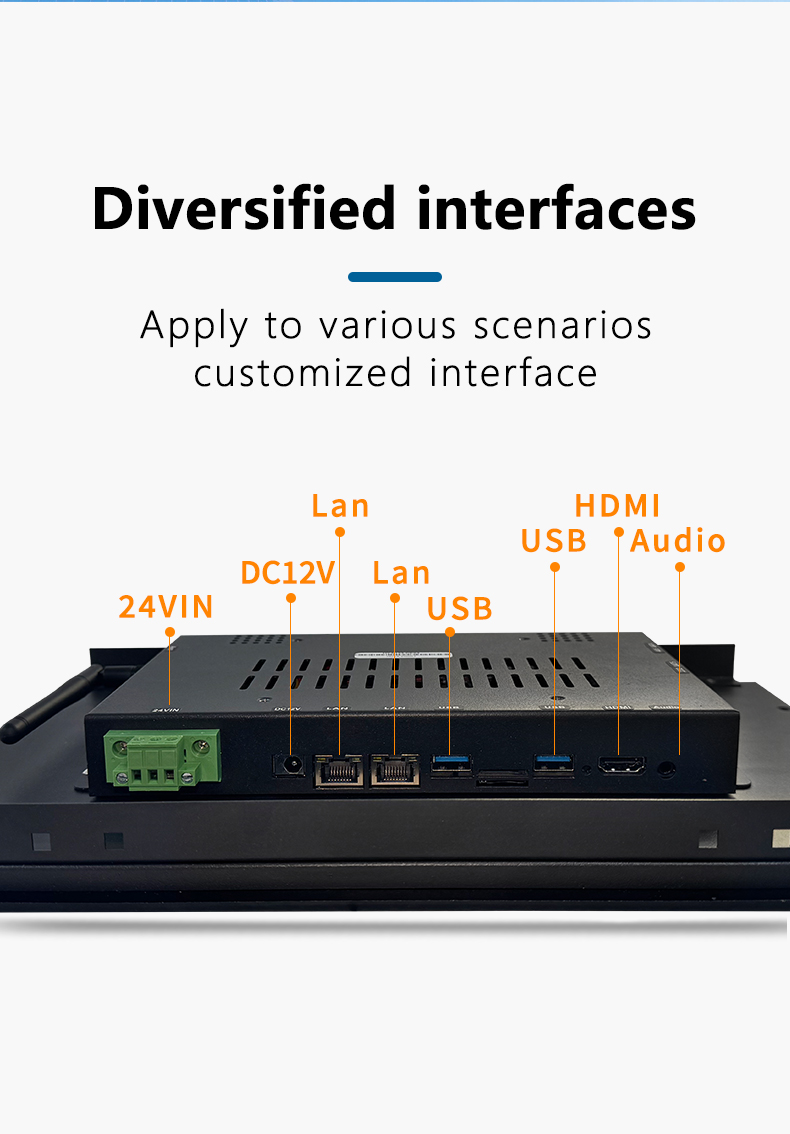

Recommended Interfaces

• 1× Gigabit Ethernet (dual Ethernet preferred)

• 2× RS232 / RS485 (for PLC and sensors)

• 2× USB ports (for cameras and peripherals)

• GPIO / CAN (for industrial device connection)

• HDMI (for debugging & extended display)

• Optional Wi-Fi / Bluetooth
2. Commercial Display / Kiosk / Retail (POS, ordering terminals, advertising displays, self-service machines)

Selection Criteria

1. Brightness: 300–500 cd/m² (ideal for indoor use)

2. Touch: 10-point capacitive touch, anti-mistouch

3. Design: Narrow bezel, wall-mounted & desktop dual use

4. Function: Scheduled power on/off, remote content push

5. System: Pre-installed Android, app locked mode available

Recommended Interfaces

• 1× Gigabit Ethernet

• 3× USB ports (for scanners, printers, cameras)

• HDMI Output (extended display)

• Audio port (speakers & microphone)

• Wi-Fi 6 + Bluetooth
3. Automotive / Vehicle Display / Logistics

Selection Criteria

1. Temperature resistance: -30℃ ~ 75℃, shockproof & anti-interference (EMC certified)

2. Brightness: 600–1000 cd/m² high brightness (sunlight readable)

3. Power supply: 9–36V wide voltage input

Recommended Interfaces

• CAN Bus (essential for vehicles)

• Reserved slots for GPS / 4G / 5G modules

• Ethernet, USB

• AHD / MIPI (vehicle cameras)

• Reverse trigger & sleep wake-up function
4. Medical Industry (monitors, nurse terminals, self-service registration, physiotherapy equipment)

Selection Criteria

1. Easy-to-clean & disinfect casing, dust & water resistant

2. Low radiation, fanless cooling preferred (quiet operation)

3. Accurate color display, eye-friendly screen

4. Stable long-time operation

Recommended Interfaces

• Gigabit Ethernet

• USB (medical peripherals)

• Audio port

• Serial port (testing equipment connection)

• Fanless design recommended for ward use
5. Education / Office / Electronic Class Banner / Conference

Selection Criteria

1. High color accuracy, low blue light, eye protection

2. Smooth touch, low writing latency

3. Cost-effective, compatible with Android ecosystem

Recommended Interfaces

• Wi-Fi + Bluetooth

• HDMI

• USB

• Ethernet

• Built-in speakers & microphone (online classes & meetings)
6. AIoT / Face Recognition / Access Control / Edge Computing

Selection Criteria

1. Prioritize NPU computing power (core advantage of RK3576)

2. Dual cameras, night & backlight recognition

3. Local algorithm support (offline available)

Recommended Interfaces

• MIPI / USB camera ports

• Ethernet

• GPIO (relays & door locks)

• 4G / 5G optional
Quick Reference Chart (for customer communication)

1. Industrial: Wide temperature + RS485 + Dual Ethernet + CAN + Anti-interference

2. Commercial Display: Capacitive touch + Multiple USB + Wi-Fi + Speakers

3. Automotive: High brightness + Wide voltage + CAN + GPS + Shock resistance

4. Medical: Fanless + Easy disinfection + Basic interfaces

5. Education: Eye protection + Audio & video + Wi-Fi

6. AI Access Control: Camera + NPU + GPIO + Network
