HOT SELL 23.8” Raspberry Pi All‑in‑One – Specification Requirements

1）Display

• Size: 23.8 inch

• Resolution: 1920×1080 FHD

• Panel: IPS, ≥170°(H)/170°(V)

• Brightness: 1000–1500 cd/m²

• Contrast: ≥1000:1

• Surface: Optical bonding, AG anti‑glare, tempered glass

2）Touch

• Type: Capacitive (PCAP), 10‑point

• Response: ≤10 ms, anti‑misoperation

• Protection: Front panel IP65（water/oil/dust proof）

3）Raspberry Pi Core

• Compatible: Raspberry Pi 4 / 5 / CM4 / CM5

• CPU: BCM2711 (Pi4) / BCM2712 (Pi5), 4‑core Cortex‑A72/A76

• RAM: 4GB / 8GB LPDDR4

• Storage: Micro SD + M.2 NVMe SSD（up to 2280）

• OS: Raspberry Pi OS, Linux, Ubuntu

4）I/O & Interfaces

• Video: HDMI 2.0, LVDS

• Touch: USB / I2C

• Network: Gigabit Ethernet, Wi‑Fi 2.4G/5G, Bluetooth 5.0

• USB: 2×USB3.0, 2×USB2.0

• Power: 12V DC ±5%, 100–240V AC adapter

5）Environment & Reliability

• Operating Temp: 0℃ ~ +50℃

• Storage Temp: -20℃ ~ +60℃

• Humidity: 10%–90% RH（non‑condensing）

• Vibration: 5G（MIL‑STD‑810G）

• MTBF: ≥50,000 hours（7/24）

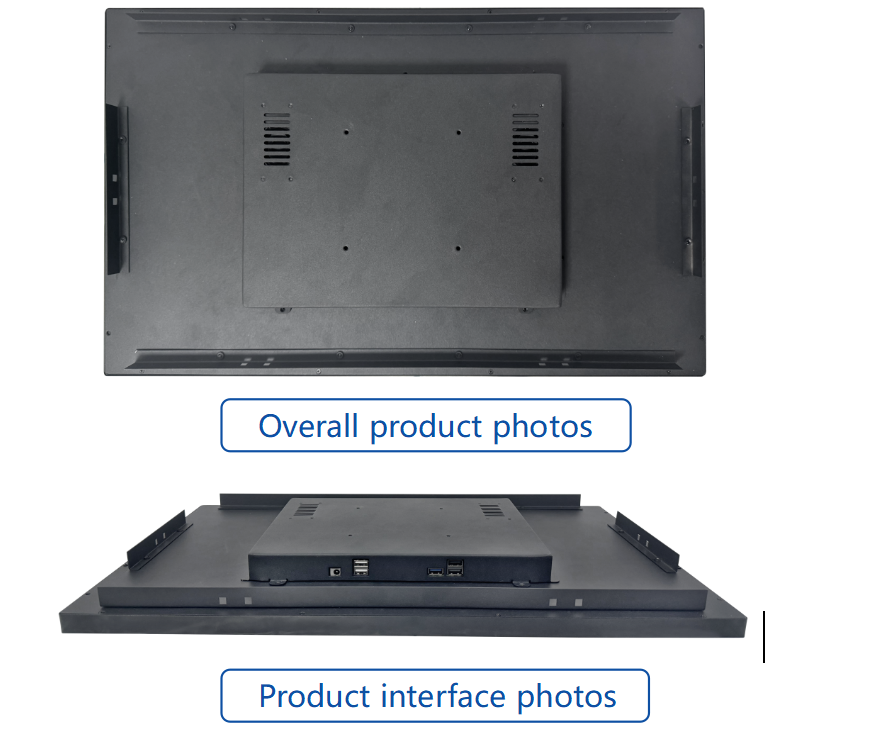

6）Mechanical & Mounting

• Dimension (H×V×D): approx. 577 × 349 × 59 mm

• Mount: VESA 100×100 mm, panel mount

• Weight: ~7.5 kg

• Material: Metal chassis, industrial grade

Users can easily achieve human-computer interaction through Android intelligent display terminals, and realize various personalized needs of users through Android general APP, such as WIFI Internet access, Ethernet Internet access, web browsing, cloud interconnection, remote control, remote data transmission, playing music, playing videos, playing advertisements, etc. It can also communicate with external devices through serial ports such as RS232 .

Our factory offers customized services. If you have any inquiry, please feel free to contact us.
