Users can easily achieve human-computer interaction through Android intelligent display terminals, and realize various personalized needs of users through Android general APP, such as WIFI/4G Internet access, Ethernet Internet access, web browsing, cloud interconnection, remote control, remote data transmission, playing music, playing videos, playing advertisements, etc. It can also communicate with external devices through

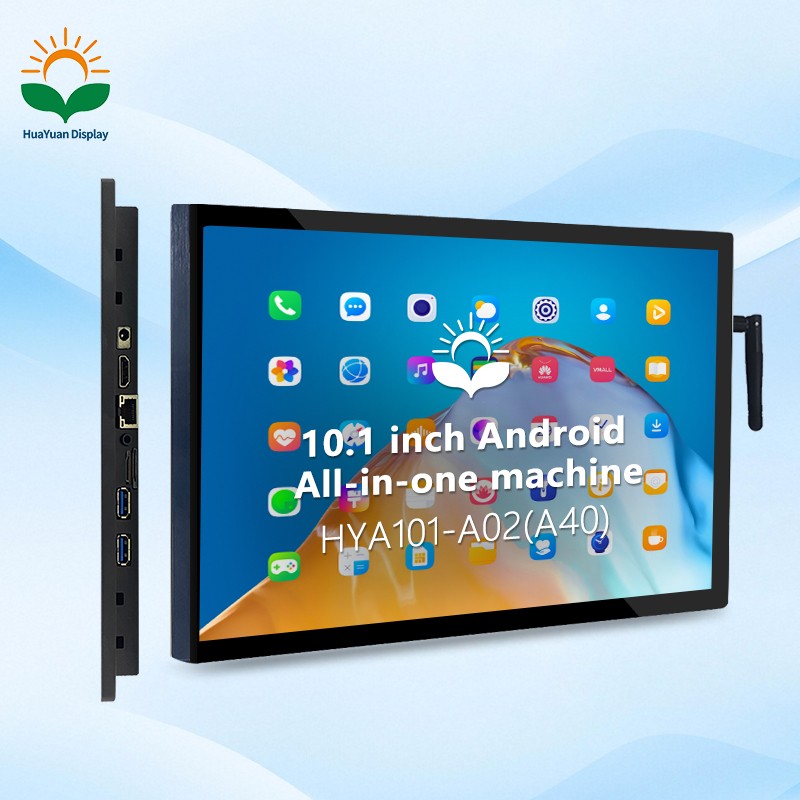

1, Overall product photos
2, Product interface photos
3, Product structure drawing
Display parameters
| Parameters | Data | Instructions |
| Display size | 10.1 inch | 16:9 |
| Resolution | 1024*600 | |
| Colors | 16.7M | - |
| Active Area dimenstion(A.A) | 222.72(H)*125.28(W)mm | - |
| Backlight brightness | 600 nit | The brightness can be adjust by software |
| Backlight lifetime(Hrs) | 50000Hrs | LED backlight |
| Viewing direction(CR>10) | wide view angle | |
| Touch type | Capacitive touch panel | Support single or 10 point touch |
| Working life |
Single point can affordable
≥50 million times
|
|
| Response time | 8ms | |
| Case size | 249.6*167.8*35.5 mm |
Hareware parameters
| CPU | ALLWINNRETECH A40I,Cortex-A7,main frequency 1.2G |
| Memory | DDR3 1G |
| Storage | EMMC FLASH 16G (the maximum can be extended to 32G) |
| GPU | / |
| WIFI |
Built-in WIFI or WIFI/BT mode(can choice one of the two),802.11b/g/n, default single
WIFI mode.
|
| Bluetooth | / |
| Operation system | Android 7.1.1 |
| Others | Support RTC real-time clock, ,timing switch |
| Language |
Chinese, English, French, German, Italian, Japanese, Korean, Russian, Spanish,
Polish, Czech and many other languages.
|
Interface parameters
| Power interface |
1 external DC12V input socket and one built-in 6P input socket(including external
power STANDBY function)
|
| USB | 6*USB HOST (two external,four built-in) |
| TF card | 1*TF card with standard interface |
| SIM Card |
/
|
|
HD-MI
|
1*HDMI A type standard interface output
|
|
Net interface
|
One standard external RJ45 interface
|
|
Audio/video
output
|
Support left and right channel output, built-in dual 8R/5 power amplifier
|
|
Reset key
|
Support(1*UBOOT)
|
|
COM
|
2*RS232(Optional RS485,TTL)
|
|
WIFI Antenna
|
1*WiFi antenna
|
Reliability parameters
| Working temperature | -20°C~70°C |
| Storage temperature | - 30°C~80°C |
| Relative humidity |
Humidity: 90%, Temperature:50℃
|
| Vibration protection | 10Hz-50Hz-10Hz Amplitude 1.5mm X,Y,Z each 3H |
| Product certification | CCC/CE/FCC/EMC/CB/ROHS |
| Front waterproof rating | The front panel can reach IP65 protected rating |
