Display parameters
| Items | Specs | Marks |
| Size | 15.6 inch | Screen ratio 16:9 |
| Resolution | 1920*1080 | |
| Color Depth | 16.7M | |
| Display size | 345.16*194.52mm | |
| Brightness | 300-600 nit | The brightness can be adjustable |
| LCD lifetime | 50000 Hrs | LED |
| Viewing direction(CR>10) | IPS | 85/85/85/85 (Typ.) |
| Touch | Capacitive Touch | 10 point touch |
| Input | Handwriting or capacitive pen | |
| Lifetime | Single point touch ≥50 million times | |
| Response time | 8ms | |
| Outline Dimensions |
375.2*224.2mm |
,
Hareware parameters
| CPU | Intel I3-2/I5-2/I7-2/I3-3/I5-3/I7-3 |
| RAM |
2GB/4GB/8GB DDR3
|
| ROM | 64GB/ 128GB/256GB/512GB |
| System | Windows 10, Windows 8,Windows 7,Windows XP,Linux |
| Video |
H.265, H.264 VP8, MAV , WMV , AVS , H.263 , MPEG4 1080P/2160P Multiple video decoding |
| Picture |
JPG BMP PNG rotate/slideshow/Picture Enlargement |
| Internet | 4G, Ethernet,WIFI,Support peripheral expansion |
| Resolution | 1080P |
| RTC time | Yes |
| Time Switch | Yes |
| System upgrade | SD card/laptop |

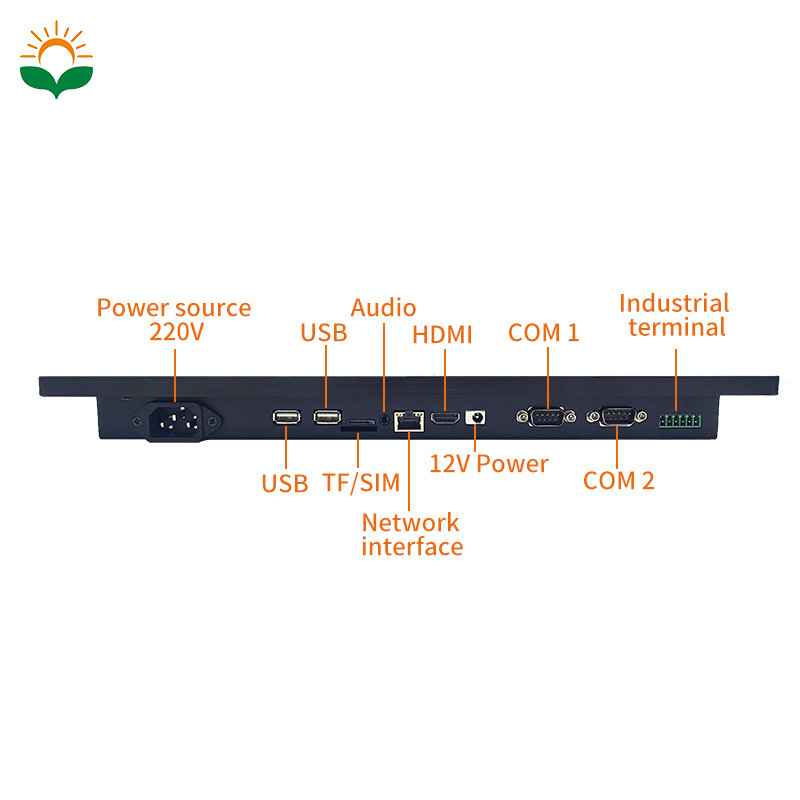

Interface parameters
| USB | USB2.0*4, USB3.0*2 |
| Power | 220V |
| RJ45 | 1*Realtec8 111F Gigabit interface,network wake-up |
| VGA | Standard DB15 |
| HDMI | HDMI output, max 1080p |
| Headphone | Output 3.5mm standard interface |
| Serial | COM1, RS232 |
| DC Terminal | 12-36V power supply |
| WIFI | Standard WIFI, automatic connection |
Reliability parameters
|
Working temperature
|
-20°C~70°C
|
| Storage temperature |
- 30°C~80°C
|
|
Relative humidity
|
Humidity: 90%, Temperature:50℃
|
| Vibration protection | 10Hz-50Hz-10Hz Amplitude 1.5mm X,Y,Z each 3H |
| Product certification | CCC/CE/FCC/EMC/CB/ROHS |
| Front waterproof rating | The front panel can reach IP65 protected rating |
|
item
|
value
|
|
Type
|
TFT
|
|
Supplier Type
|
China factory directly supply
|
|
Place of Origin
|
China
|
|
Brand Name
|
Huayuan
|
