15.6 inch Android all-in-one machine

Users can easily achieve human-computer interaction through Android intelligent display terminals, and realize various personalized needs of users through Android general APP, such as WIFI/4G Internet access, Ethernet Internet access, web browsing, cloud interconnection, remote control, remote data transmission, playing music, playing videos, playing advertisements, etc. It can also communicate with external devices through
serial ports such as RS232 and RS485.
Wall mounted 15.6 inch display TFT Android operation system RK3568 and RS232 touch panel support serial port communication
Product feature
1.It can realize capacitive touch and display functions, realize
human-computer interaction, and achieve various personalized needs through
APP.
2.Support WIFI/4G/ Ethernet and other networking methods, can achieve
remote data transmission, cloud interconnection.
3.Multiple interfaces, support multiple RS232, RS485 and other different
serial port communication, to achieve the exchange of communication with
external devices.
4.Supports voice and video playback.
5.Industrial embedded design, easy to install
Product Show

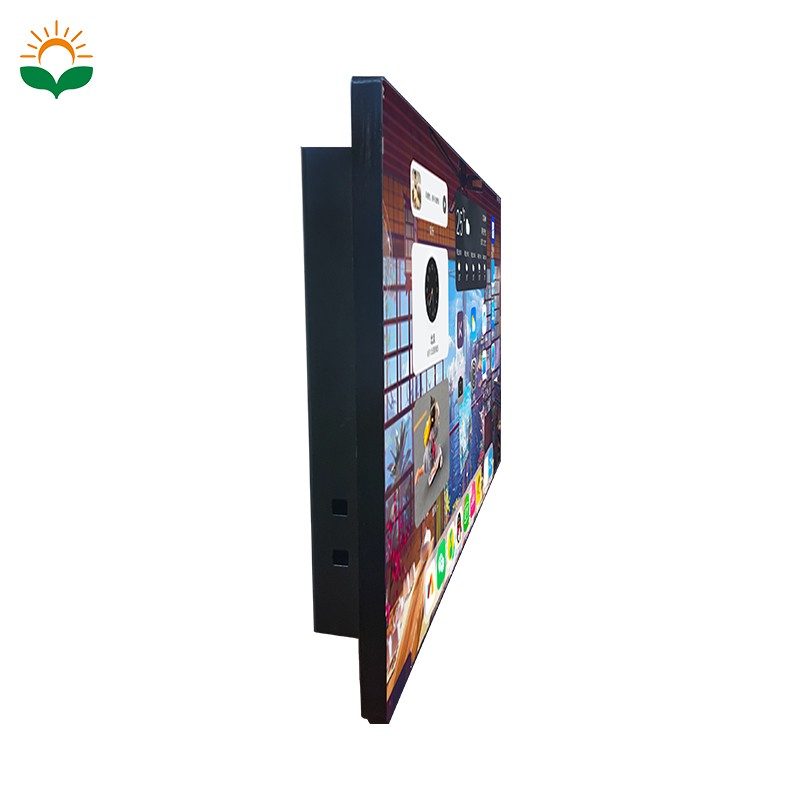

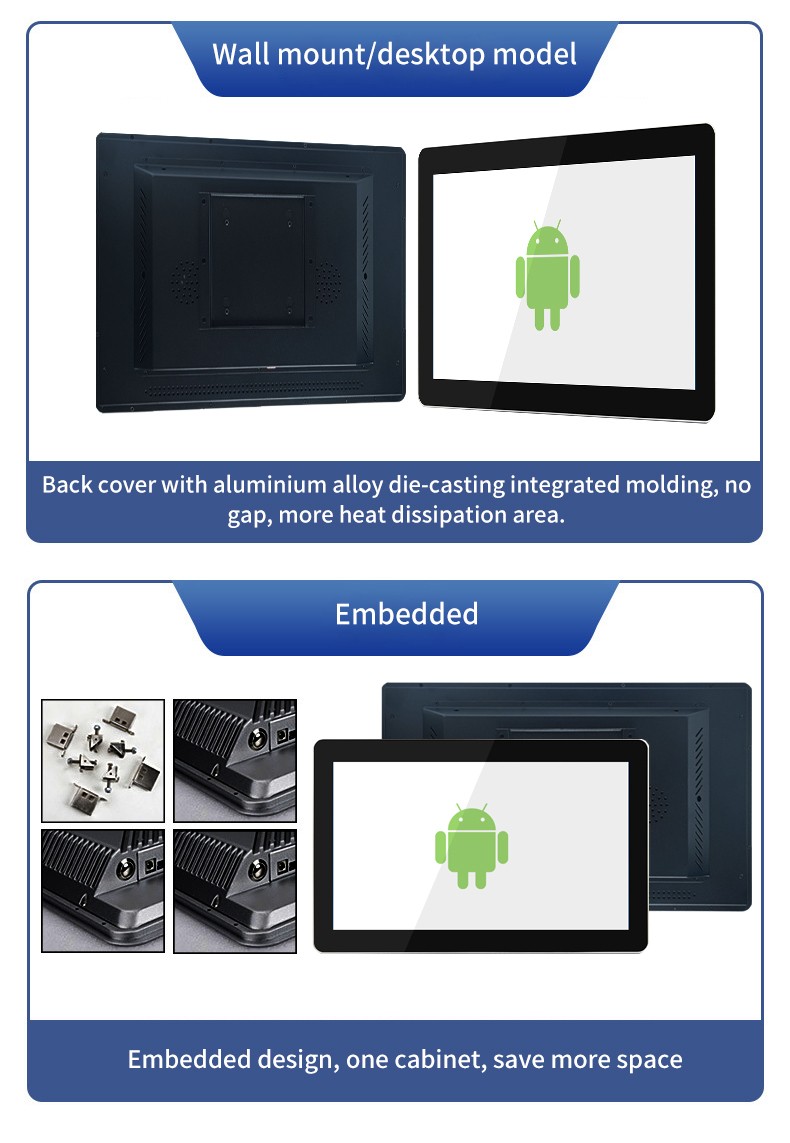

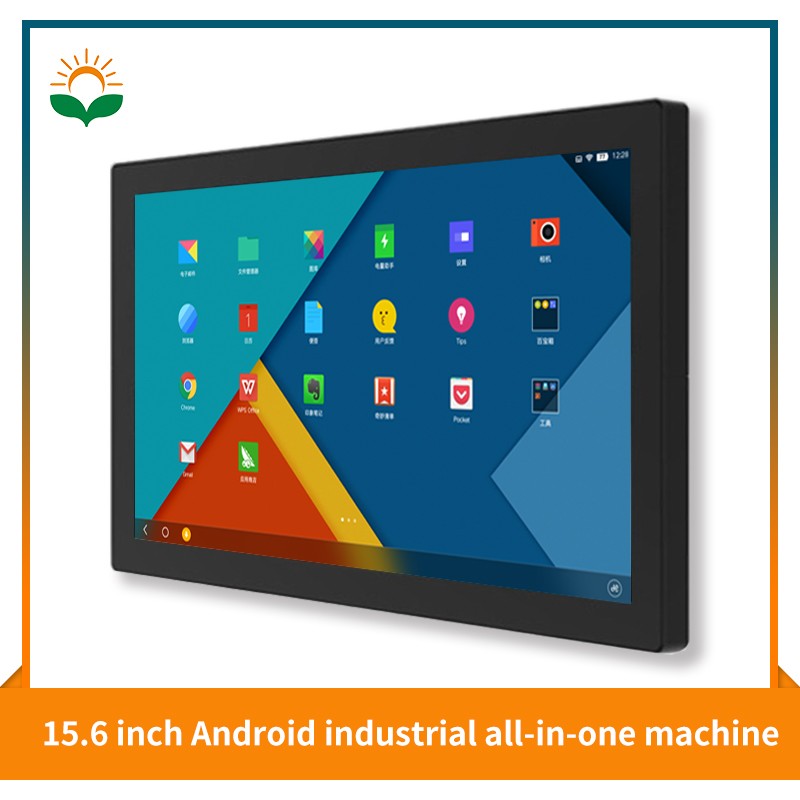

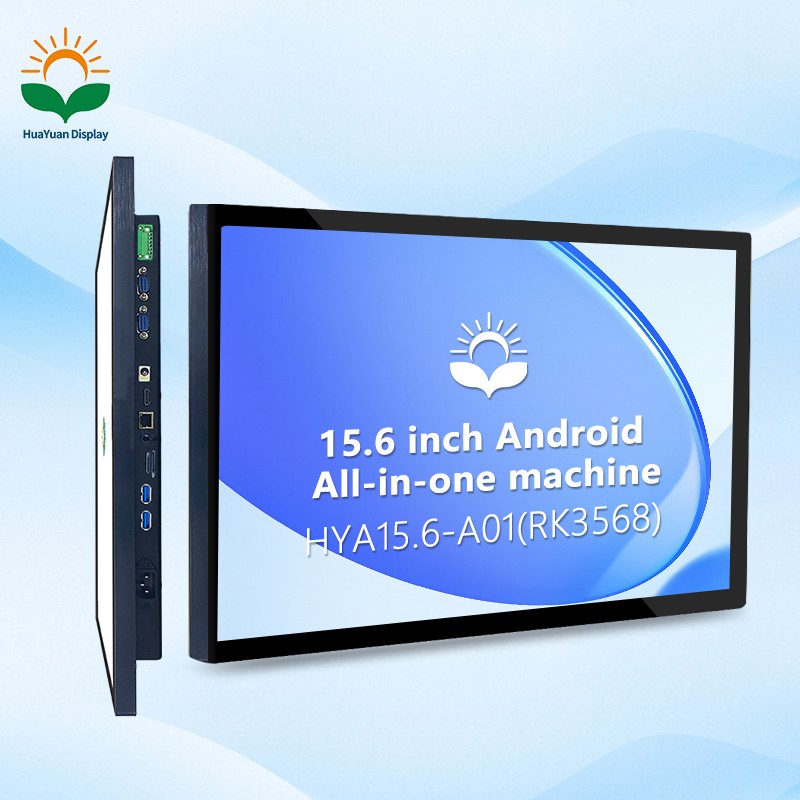

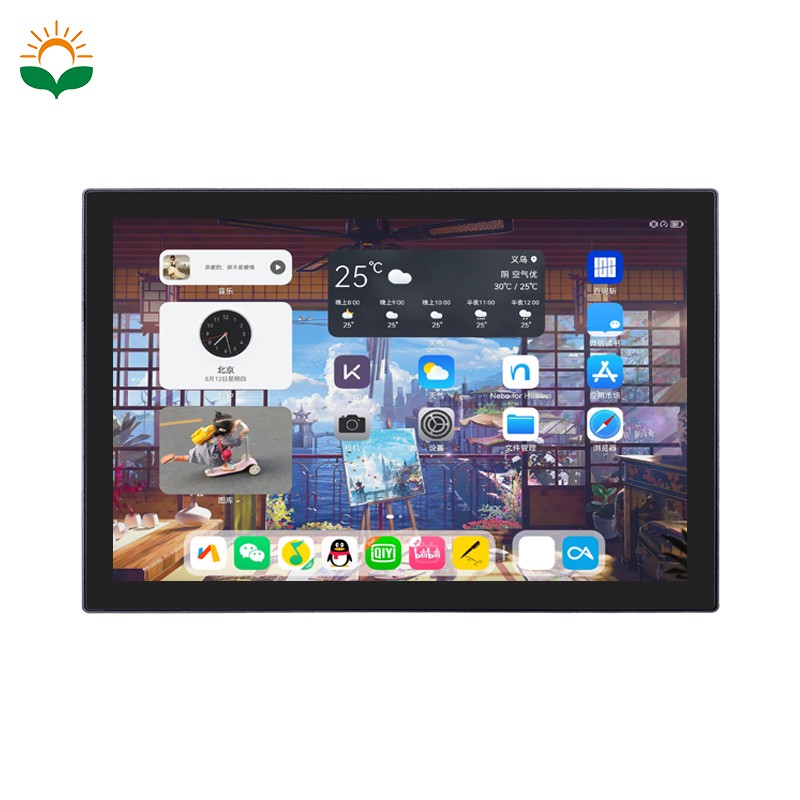

1, Overall product photos

Wall mounted 15.6 inch display TFT Android operation system RK3568 and RS232 touch panel support serial port communication

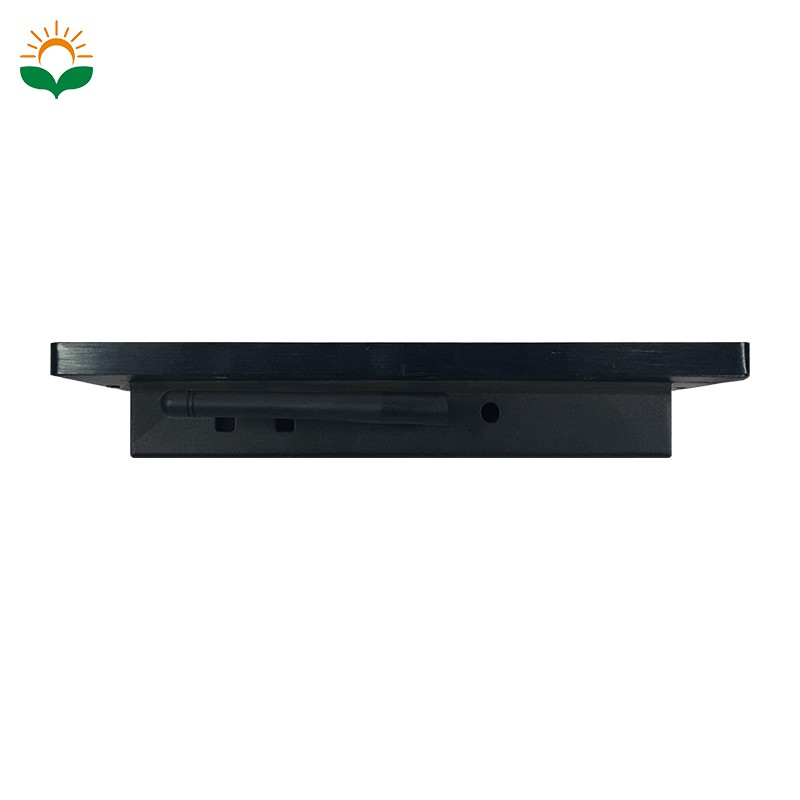

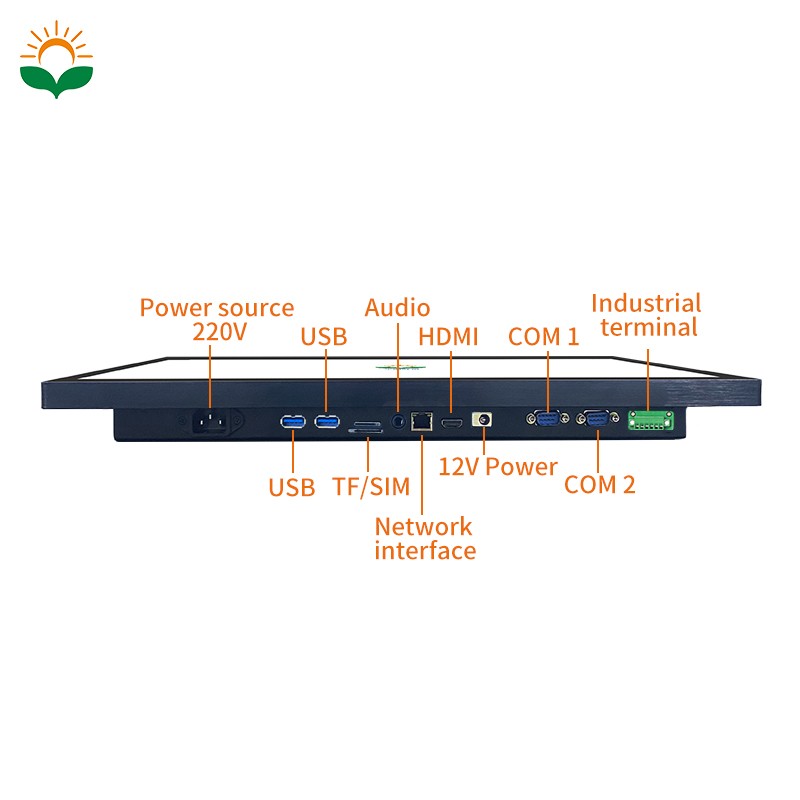

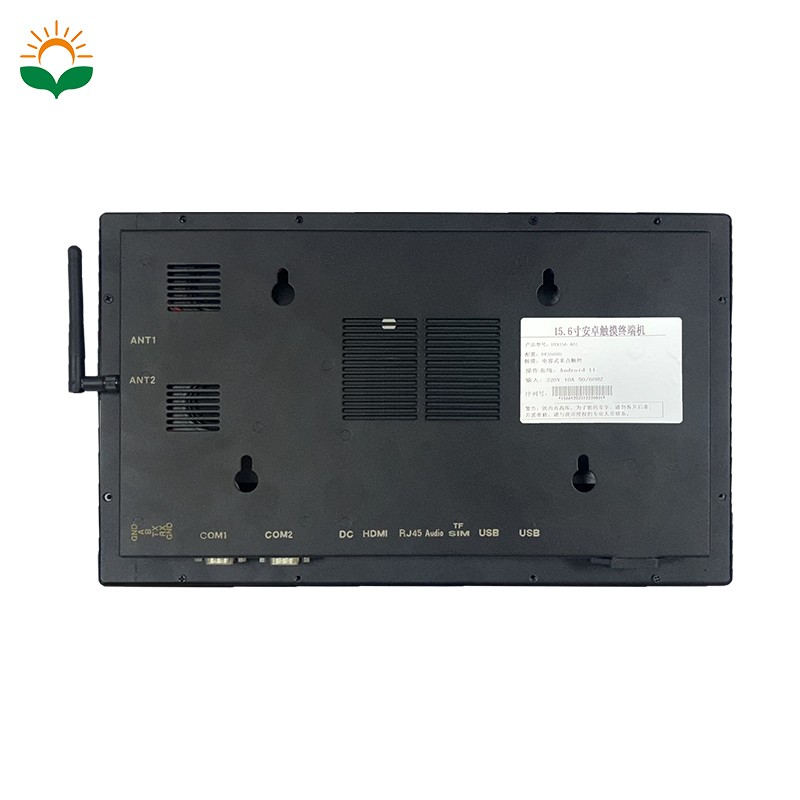

2, Product interface photos


Wall mounted 15.6 inch display TFT Android operation system RK3568 and RS232 touch panel support serial port communication


3, Product structure drawing


Wall mounted 15.6 inch display TFT Android operation system RK3568 and RS232 touch panel support serial port communication


Product Parameters

Display parameters

Parameters Data Instructions
Display size 15.6 inch 16:9
Resolution 1920*1080
Colors 16.7M -
Active Area dimenstion(A.A)
334.16(H)*193.59(W) mm
-
Backlight brightness 300 nit The brightness can be adjust by software
Backlight lifetime(Hrs) 50000Hrs LED backlight
Viewing direction(CR>10) wide view angle
Touch type Capacitive touch panel Support single or 10 point touch
Working life Single point can affordable
≥50 million times
Response time 8ms
Case size
276.35*193*25.5 mm

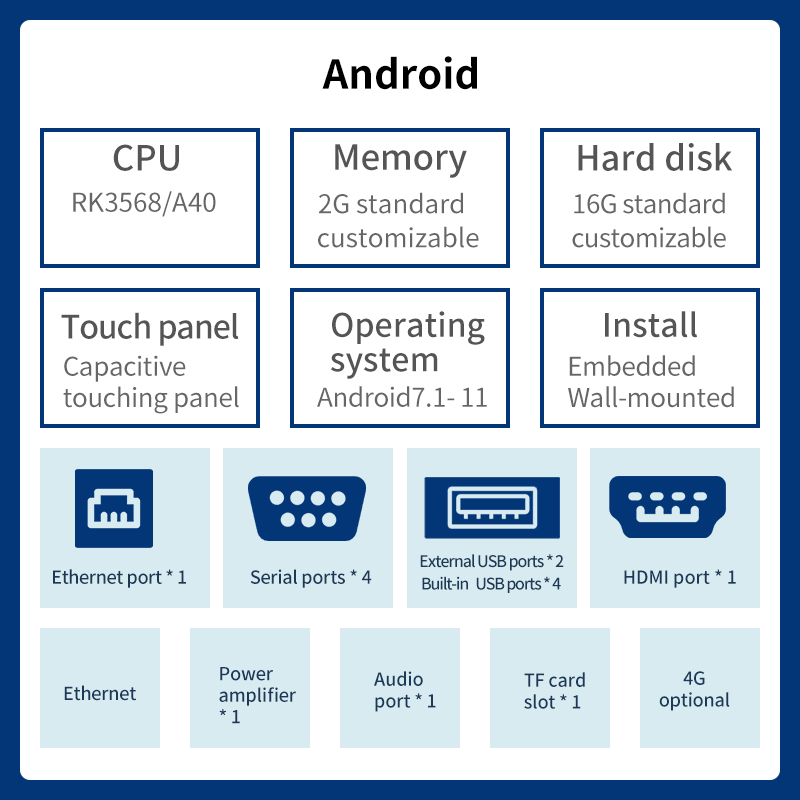

Hareware parameters

CPU
RK3568 4 cores 64-bit Cortex-A55, maximum main frequency 2.0Ghz
Memory
2G
Storage
