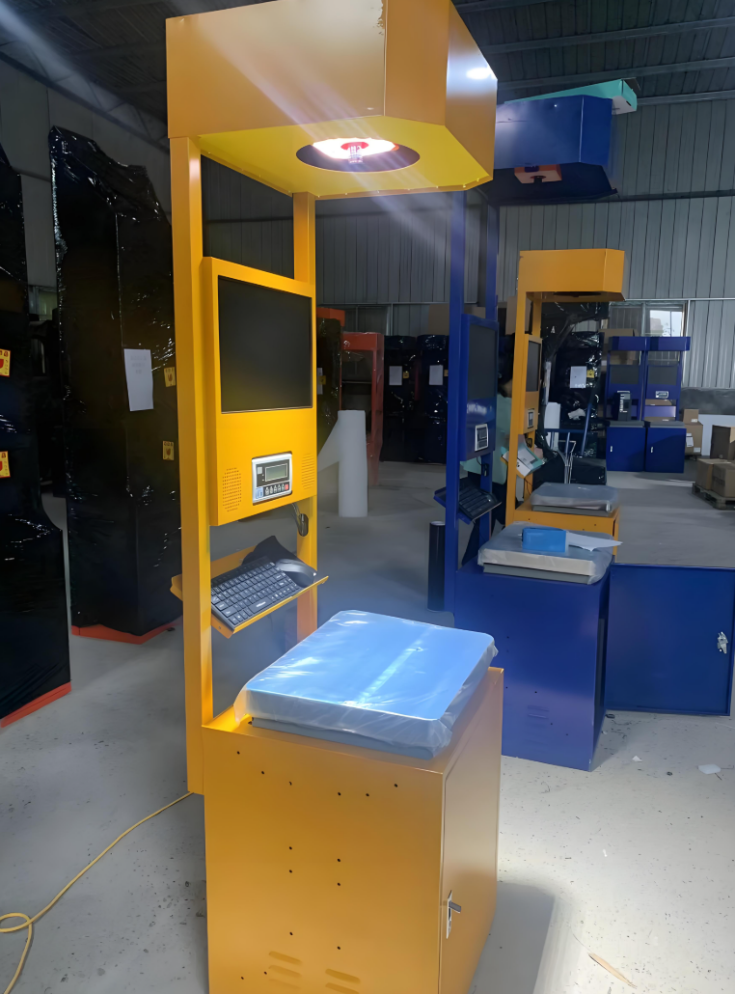

In modern industrial production and logistics transportation systems, weighing machines serve as core metering devices, undertaking the crucial task of precise material weight measurement. As the core interface for human-machine interaction and data presentation in weighing machines, the performance of industrial displays directly impacts equipment operational efficiency and metrological accuracy. This article deeply analyzes the significant role of industrial displays in weighing machines based on international standards and technical details.
Industrial displays differ from consumer-grade display devices and must comply with the requirements for reliability and safety of industrial equipment in ISO 13849-1:2015 Mechanical Safety — Safety-Related Parts of Control Systems. They adopt reinforced liquid crystal panels (TFT-LCD) or resistive/capacitive touch technologies, featuring wide-temperature operation (-20°C to 60°C), dust and water resistance (IP65 and above protection level), and electromagnetic interference resistance (in compliance with EN 55011 standards). For example, industrial-grade resistive touchscreens operate on the principle of pressure sensing, maintaining stable touch responsiveness in harsh environments with dust and oil pollution, which is well-suited for the application needs of weighing machines in complex scenarios such as warehouses and ports.
Industrial displays ensure clear visibility of weighing data in direct 强光 (strong light) or dim environments through high-contrast (1000:1 and above) and wide-viewing-angle (178°) display technologies. According to GB/T 3884.1-2012 Methods for Chemical Analysis of Copper Concentrates, which specifies requirements for metering equipment displays, the display must real-time and accurately present weight data to 3-4 decimal places. In scenarios such as ore weighing, high-resolution industrial displays can precisely show fluctuations in material weight, avoiding trade disputes caused by reading errors.
Industrial displays are equipped with built-in ARM or X86 architecture processors, which can interface with analog/digital signals from weighing sensors (such as common 4-20mA current signals or RS485 digital signals) to perform preprocessing such as data filtering and outlier removal. Take the Mettler-Toledo industrial display as an example; its weighing-specific algorithm can stabilize dynamic weighing data within 0.5 seconds, effectively eliminating inertia errors during material dropping, in line with the metrological requirements for non-automatic weighing instruments in the OIML R76 international recommendation (referenced from https://www.oiml.org/).
Industrial displays support customized UI development based on Linux or Windows IoT systems, enabling functions such as weighing parameter settings, data storage and query, and calibration operations through graphical interfaces. In the food processing industry, for instance, operators can quickly switch weighing standards for different products via touchscreens and retrieve historical data for production traceability. According to ANSI/ISA-101.01-2015 Process Industry Human-Machine Interface Standards, interface design must follow the principle of minimizing operational processes, with critical function buttons sized ≥15mm×15mm to ensure accurate operation while wearing gloves.
In cross-border logistics and international trade scenarios, the multi-language support function of industrial displays is indispensable. By embedding Unicode font libraries and language switching modules, they can achieve real-time switching among more than 10 languages, including Chinese, English, and Arabic, meeting the usage needs of operators in different regions and enhancing equipment versatility and international adaptability.
Industrial displays integrate multiple communication interfaces such as RS232, CAN, and Ethernet, supporting industrial protocols like Modbus RTU/TCP and Profibus, enabling seamless docking with PLC and ERP systems. In intelligent warehousing systems, displays upload weighing data to the central management system in real time, generate electronic weigh bills, and synchronize inventory information, reducing manual entry errors and improving data flow efficiency.
Some high-end industrial displays are equipped with edge computing modules to enable localized analysis and storage of weighing data. In accordance with GB/T 33745-2017 Functional Requirements for IoT Data Storage and Processing Systems, the built-in SD cards or solid-state drives of displays can store no fewer than 100,000 weighing records, which are indexed by timestamps and device numbers for easy later auditing and traceability.
Industrial displays have become core components for the intelligent upgrading of weighing machines in scenarios such as port bulk cargo weighing, vehicle scale detection, and food packaging metrology. According to a MarketsandMarkets market report, the industrial display market is projected to grow at a compound annual growth rate of 6.8% from 2023 to 2028, with the integration of Internet of Things (IoT) and artificial intelligence (AI) technologies driving product iteration. In the future, industrial displays will integrate AI image recognition functions to automatically detect the appearance defects of weighed materials; simultaneously, they will achieve remote monitoring and fault diagnosis through 5G communication, further enhancing the intelligence level of weighing systems.
In conclusion, industrial displays have become key elements for weighing machines to achieve precise metrology and efficient management, thanks to their data visualization, human-machine interaction, and system integration capabilities. With the advancement of Industry 4.0, industrial displays will continue to empower weighing equipment and play a more significant role in the field of intelligent manufacturing.
