Display parameters
| Parameters | Data | Instructions |
| Display size | 10.1 inch | 16:9 |
| Resolution | 1280*800 | |
| Colors | 16.7M | - |
| Active Area dimenstion(A.A) | 222.72(H)*125.28(W)mm | - |
| Backlight brightness | 600 nit | The brightness can be adjust by software |
| Backlight lifetime(Hrs) | 50000Hrs | LED backlight |
| Viewing direction(CR>10) | wide view angle | |
| Touch type | Capacitive touch panel | Support single or 10 point touch |
| Working life |
Single point can affordable
≥50 million times
|
|
| Response time | 8ms | |
| Case size |
249.6*167.8*35.5 mm
|
Hareware parameters
| CPU |
ALLWINNRETECH A40I,Cortex-A7,main frequency 1.2G
|
|
Memory
|
DDR3 1G |
|
Storage
|
EMMC FLASH 16G (the maximum can be extended to 32G) |
|
GPU
|
/ |
| WIFI |
Built-in WIFI or WIFI/BT mode(can choice one of the two),802.11b/g/n, default single
WIFI mode.
|
| Bluetooth | / |
| Operation system |
Android 7.1.1
|
| Others | Support RTC real-time clock, ,timing switch |
| Language |
Chinese, English, French, German, Italian, Japanese, Korean, Russian, Spanish,
Polish, Czech and many other languages.
|

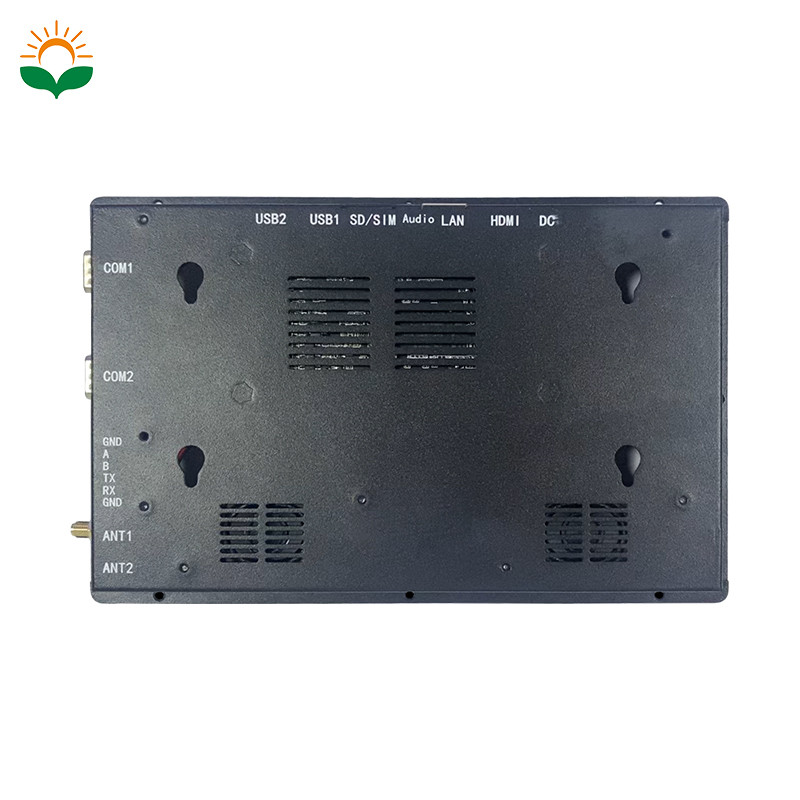

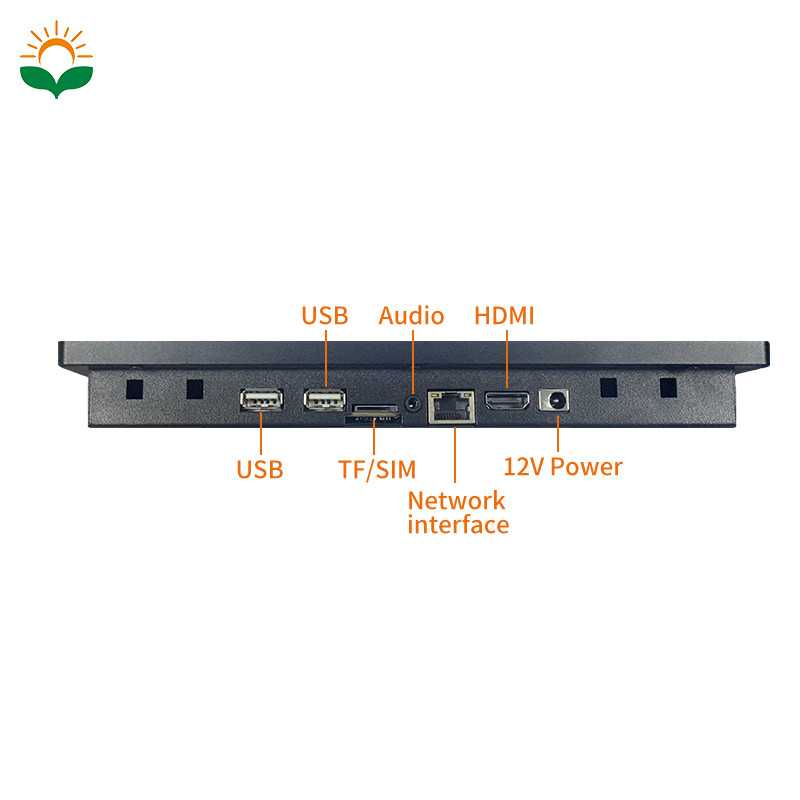

Interface parameters
|
Power interface
|
1 external DC12V input socket and one built-in 6P input socket(including external
power STANDBY function)
|
|
USB
|
6*USB HOST (two external,four built-in)
|
|
TF card
|
1*TF card with standard interface
|
|
SIM Card
|
/
|
|
HD-MI
|
1*HDMI A type standard interface output
|
|
Net interface
|
One standard external RJ45 interface
|
|
Audio/video
output
|
Support left and right channel output, built-in dual 8R/5 power amplifier
|
|
Reset key
|
Support(1*UBOOT)
|
|

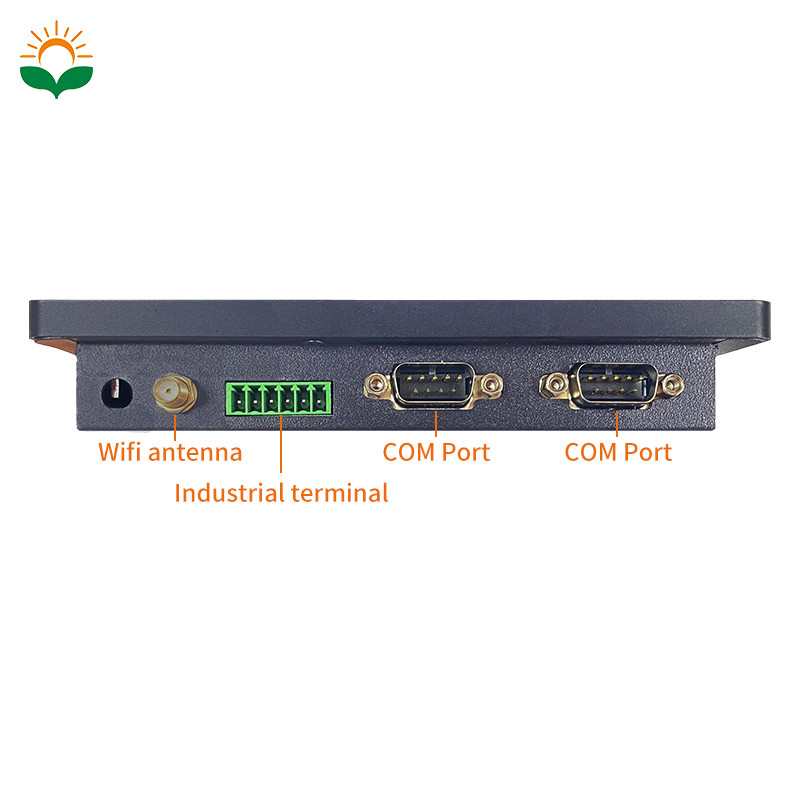

COM
|
2*RS232(Optional RS485,TTL)
|
|
WIFI Antenna
|
1*WiFi antenna
|
Reliability parameters
|
Working temperature
|
-20°C~70°C
|
| Storage temperature |
- 30°C~80°C
|
|
Relative humidity
|
Humidity: 90%, Temperature:50℃
|
| Vibration protection | 10Hz-50Hz-10Hz Amplitude 1.5mm X,Y,Z each 3H |
| Product certification | CCC/CE/FCC/EMC/CB/ROHS |
| Front waterproof rating |
The front panel can reach IP65 protected rating |
