Display parameters
| Parameters | Data | Instructions |
| Display size | 15.6 inch | 16:9 |
| Resolution | 1920*1080 | |
| Colors | 16.7M | - |
| Display size |
345.16*194.73mm
|
- |
| Backlight brightness | 250 nit | The brightness can be adjust by software |
| Backlight lifetime(Hrs) | 50000Hrs | LED backlight |
| Viewing direction(CR>10) | wide view angle | |
| Touch type | Capacitive touch panel | Support single or 10 point touch |
| Working life |
Single point can affordable
≥50 million times
|
|
| Response time | 8ms | |
| Case size |
337.36*226.79*35.5mm
|
Hareware parameters
| CPU |
RK3568 4 cores 64-bit Cortex-A55, maximum main frequency 2.0Ghz
|
|
Memory
|
2G |
|
Storage
|
EMMC FLASH 16G (the maximum can be extended to 32G) |
|
GPU
|
ARM G52 2EE support OpenGL ES 1.1/2.0/3.2,OpenCL 2.0,Vulkan 1.1
|
| WIFI |
2.4GHz
|
| Bluetooth |
BT 4.0
|
| Operation system |
Android 11
|
| Others | Support RTC real-time clock, ,timing switch |
| Language |
Chinese, English, French, German, Italian, Japanese, Korean, Russian, Spanish,
Polish, Czech and many other languages.
|

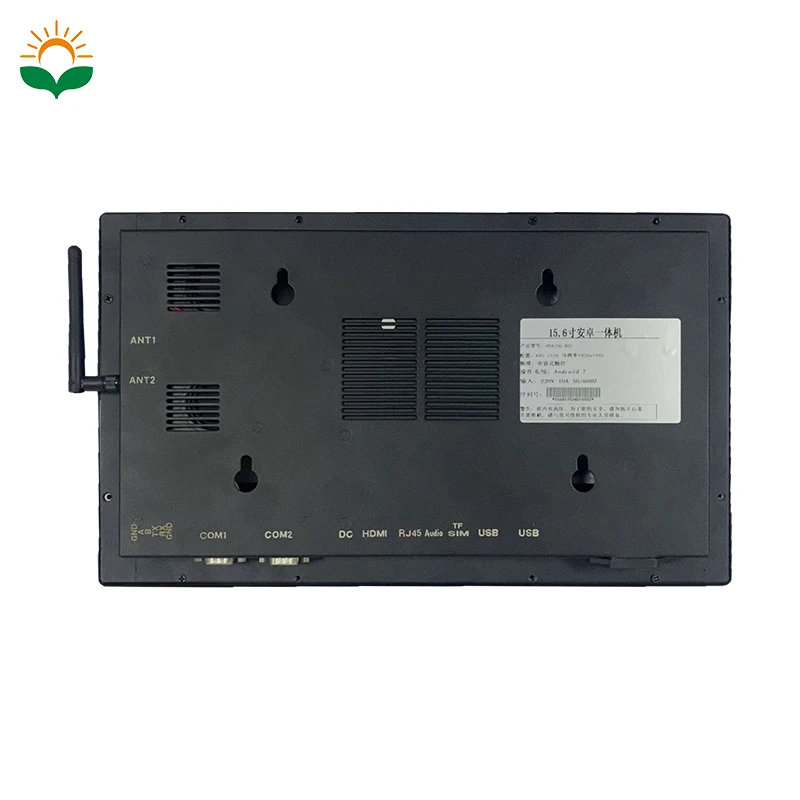

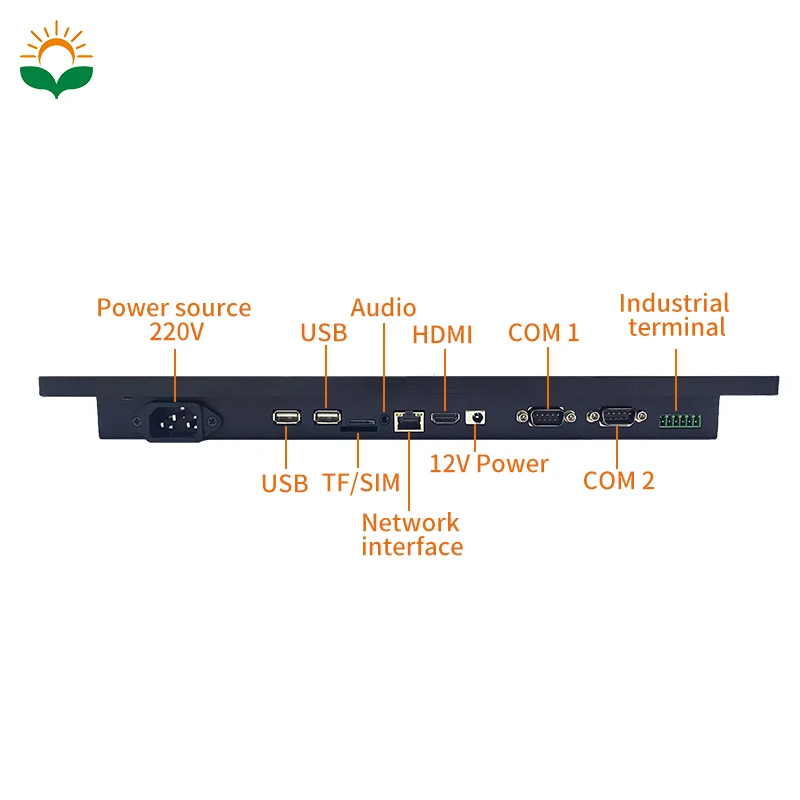

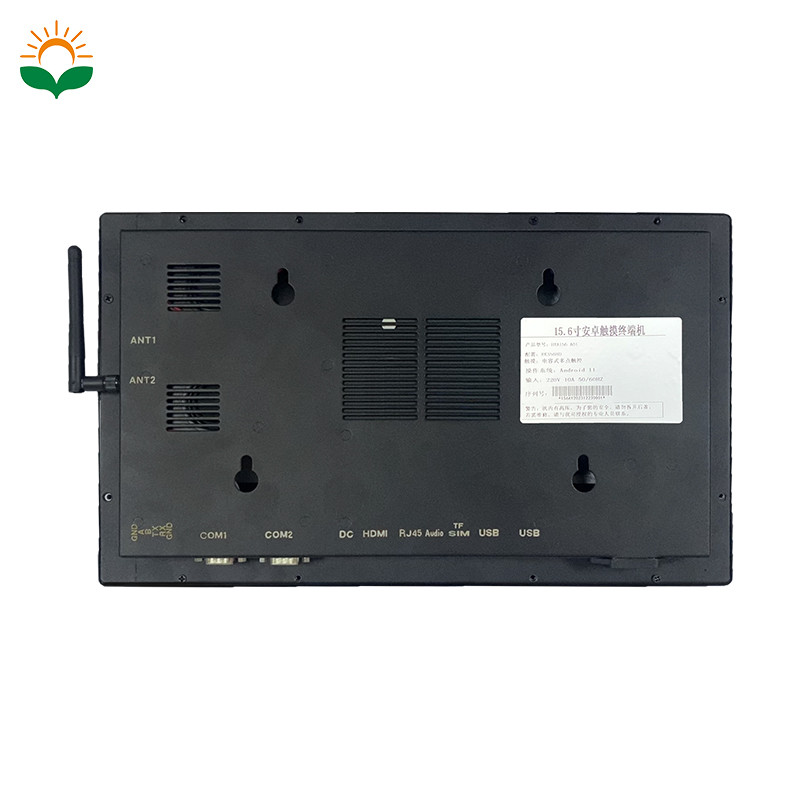

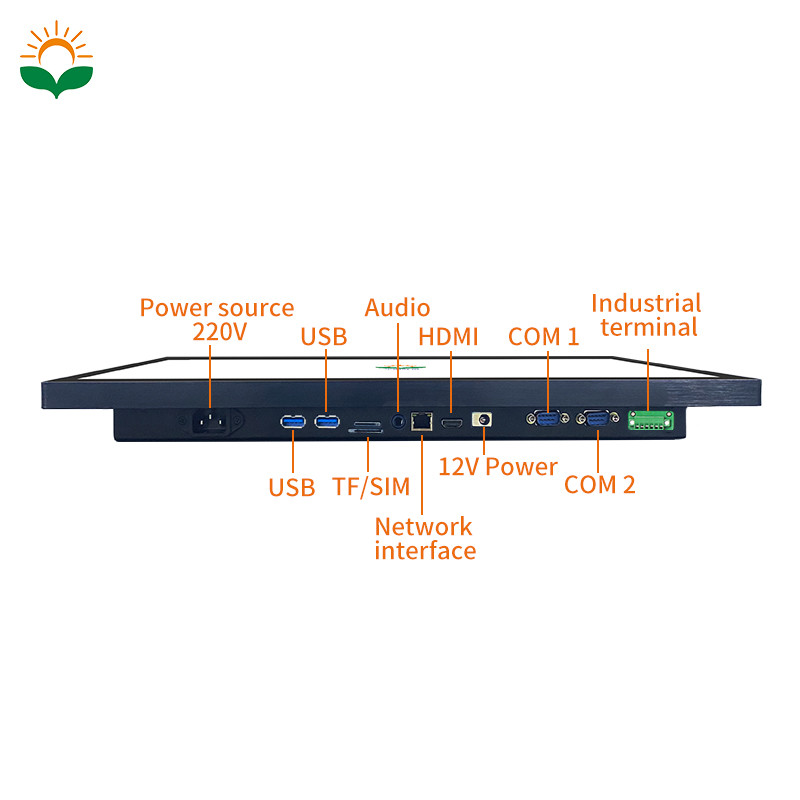

Interface parameters
|
Power interface
|
1*DC2.1,support width voltage 12V-36V power supply
|
|
Power interface
|
220V power interface
|
|
USB
|
1*USB 3.0/ 1*USB2.0;
4* built-in USB socket.
|
|
TF card
|
1*TF card with standard interface
|
|
SIM Card
|
1*SIM card standard interface,support a variety of standards(Depend on 3G/4G
module)
|
|
HD-MI
|
1*HD-MI, support HDMI data transfer,the maximum support 4K
|
|
Net interface
|
1*LAN,10M/100M adaptive ether
|
|
Audio/video
output
|
Support left and right channel output, built-in dual 8R/5 power amplifier
|
|
Reset key
|
Support(1*UBOOT)
|
|
COM
|
2*RS232(Optional RS485,TTL)
|
|
WIFI Antenna
|
1*WiFi antenna
|
Reliability parameters
|
Working temperature
|
-20°C~70°C
|
| Storage temperature |
- 30°C~80°C
|
|
Relative humidity
|
Humidity: 90%, Temperature:50℃
|
| Vibration protection | 10Hz-50Hz-10Hz Amplitude 1.5mm X,Y,Z each 3H |
| Front waterproof rating | The front panel can reach IP65 protected rating |
|
item
|
value
|
|
Type
|
TFT
|
|
Supplier Type
|
China factory directly supply
|
|
Place of Origin
|
China
|
|
Brand Name
|
Huayuan
|
