Industrial Monitor 7 Inch 1024*600 Touch LCD Display 10 Point Android 11 Monitor OS for Industrial Use

Industrial Monitor 7 Inch 1024*600 Touch LCD Display 10 Point Android 11 Monitor OS for Industrial Use

7Inch Linux All-In-One Touch Machine HYL070-A01 adapts RK3568

mainboard,resolution is 1024X600,supports LCD display driver

interface,supports TF card,Ethernet,USB3.0,RS485,RS232 COM

port,BT\WIFI and others.Meanwhile,various interfaces are

customizable, meeting the needs of customers in various

environments.

Mainly used in industrial automation, medical equipment, smart

home, commercial equipment, buildings, transportation fields,

etc.

Product feature

1.Aluminum alloy frame, high-end design

2.Linux operating system, stable and reliable, with a highly

customizable development platform

3.Can realize capacitive touch and display functions to achieve

human-computer interaction

4.Support voice playback and video playback

5.Support WIFI/Ethernet and other networking methods, which

can realize remote data transmission and interconnection to the

cloud

6.Support a variety of interfaces, such as RS485, RS232, USB

and other different ways of communication, and communicate with

external devices

7.Embedded wall mounting has a variety of installation methods,

easy to install, suitable for a variety of industries

Product Show

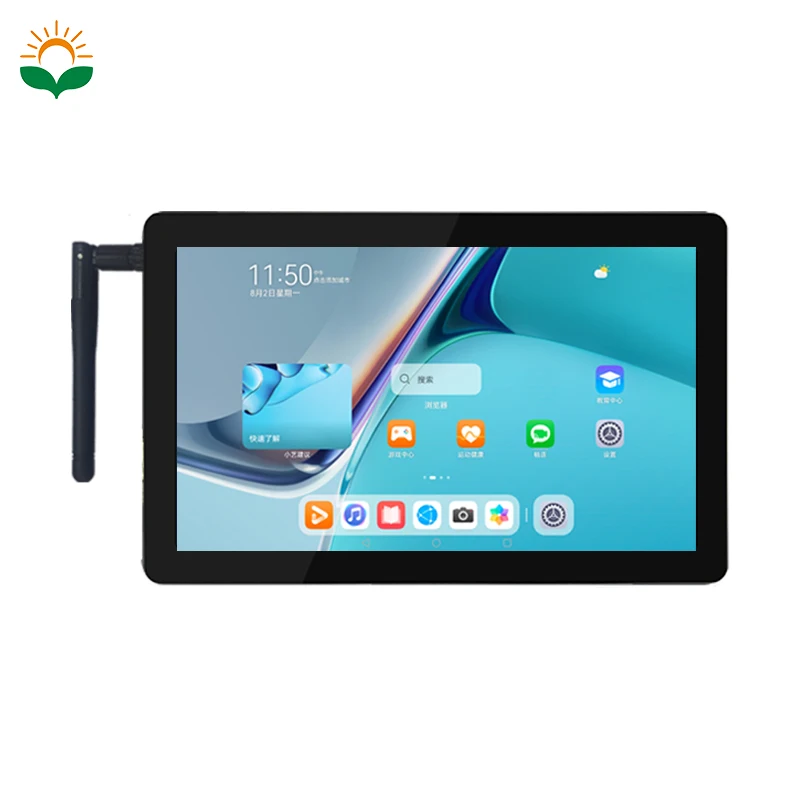

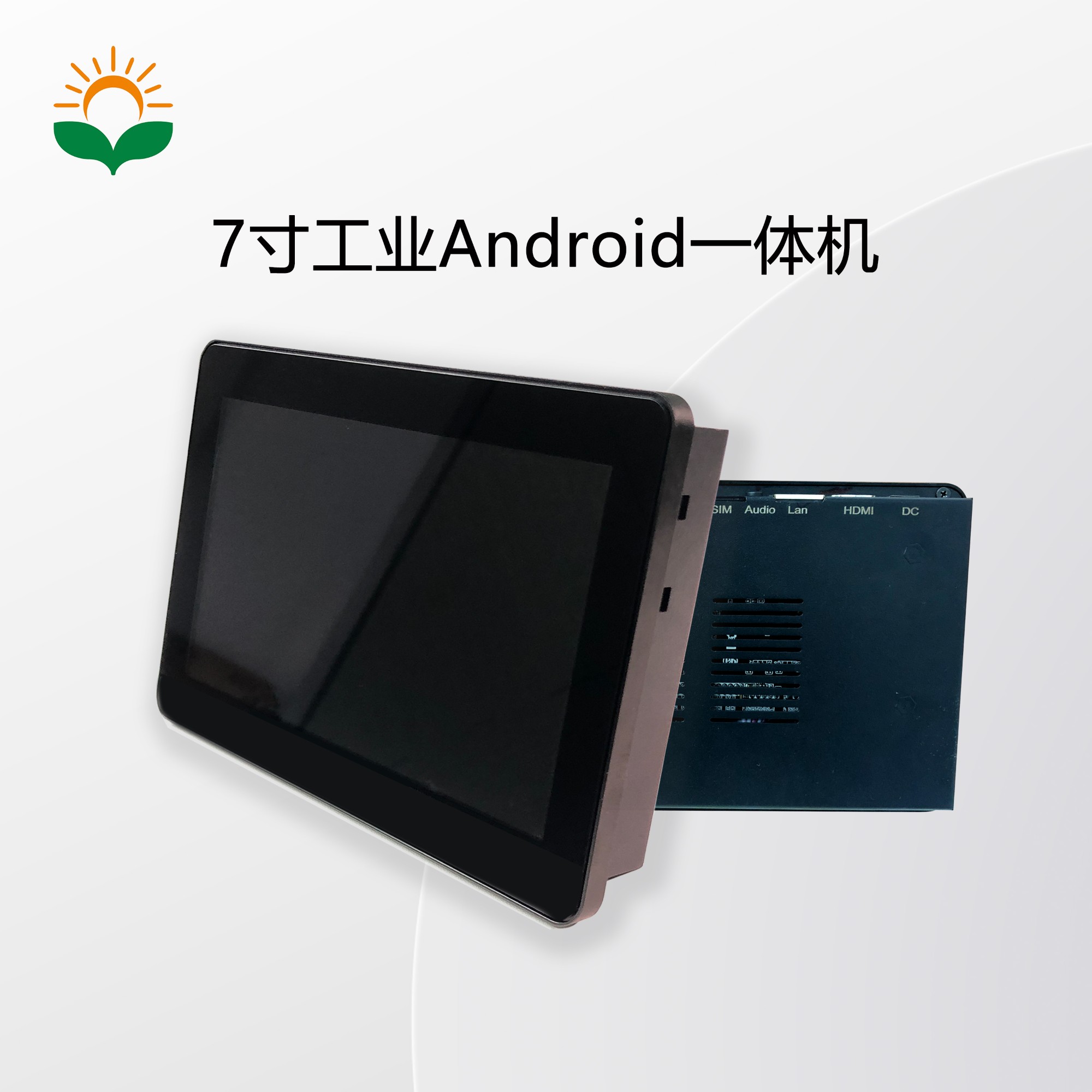

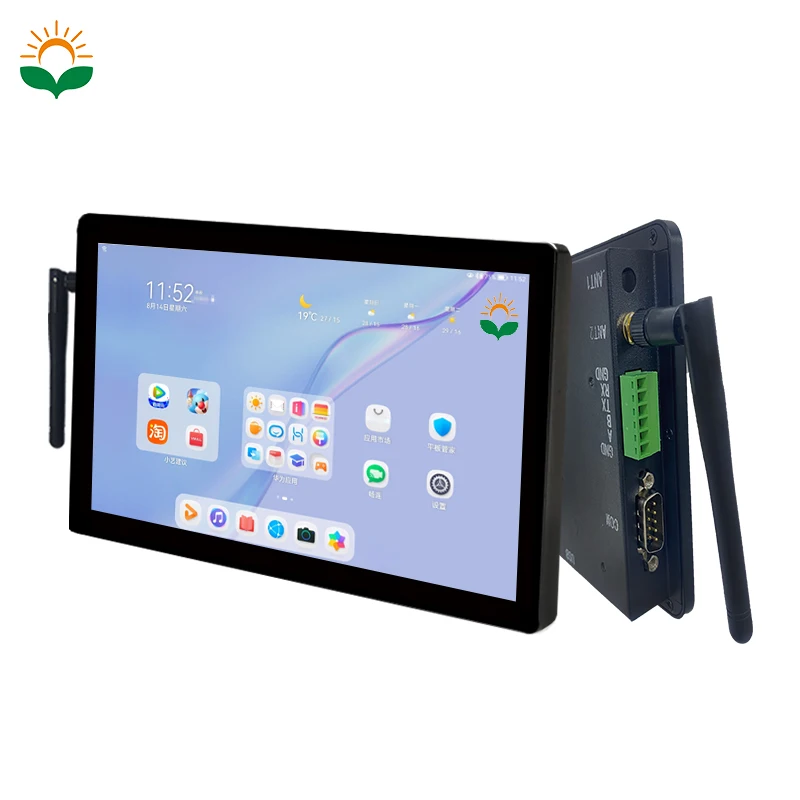

1, Overall product photos

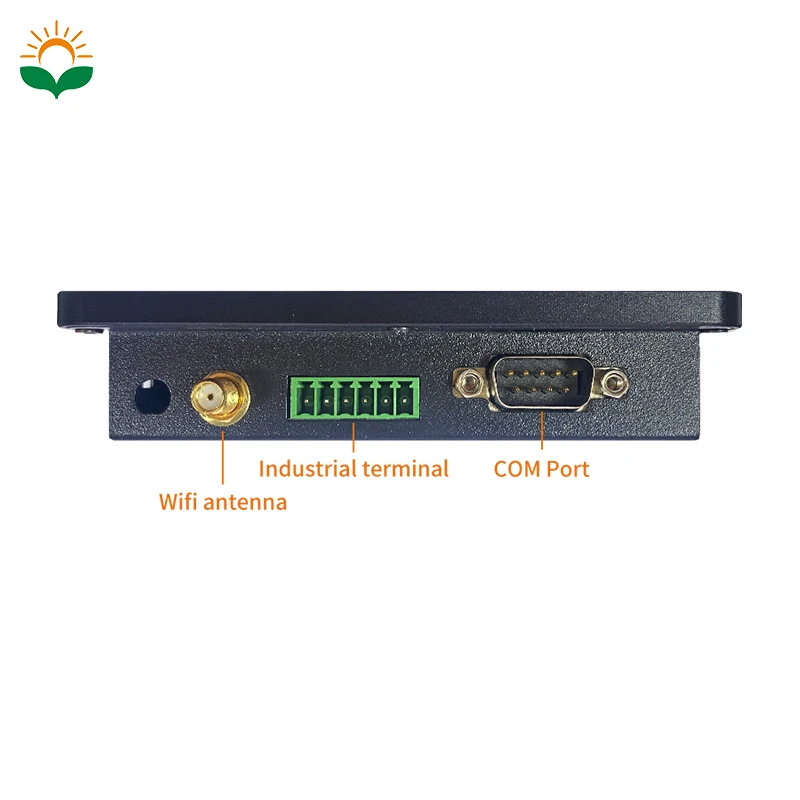

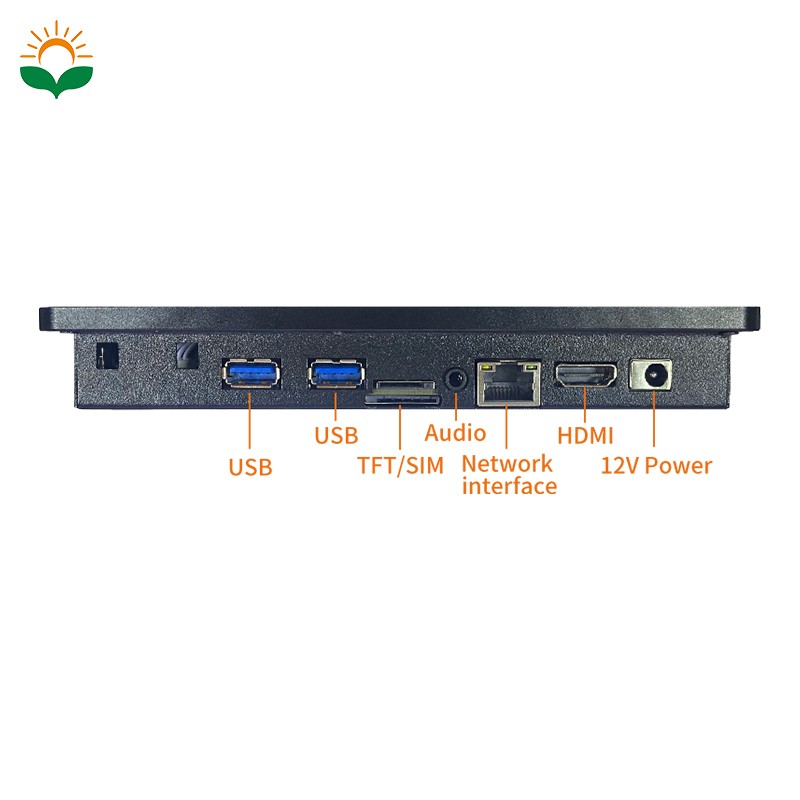

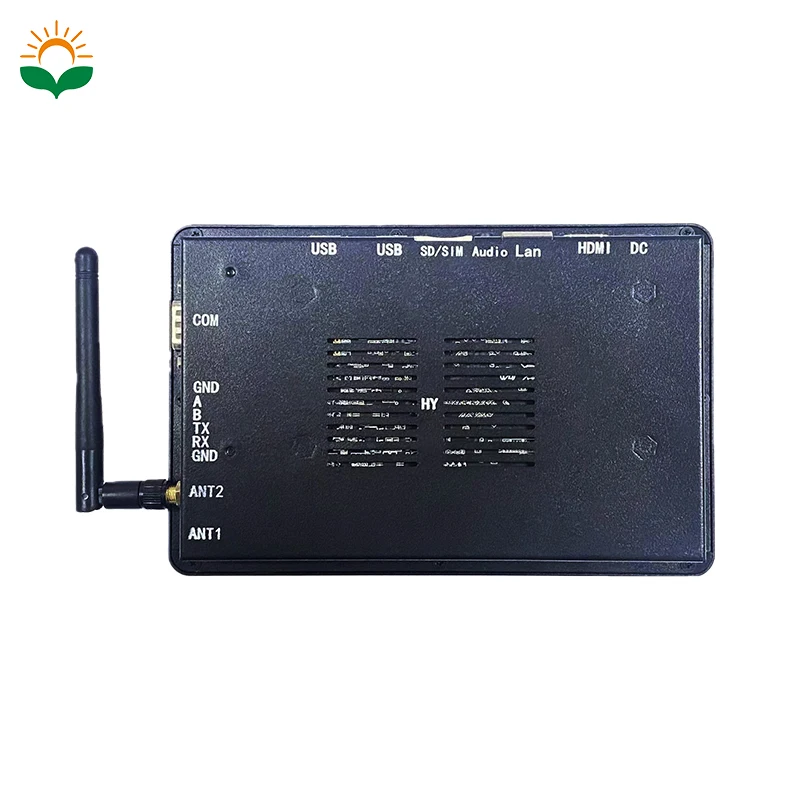

2, Product interface photos

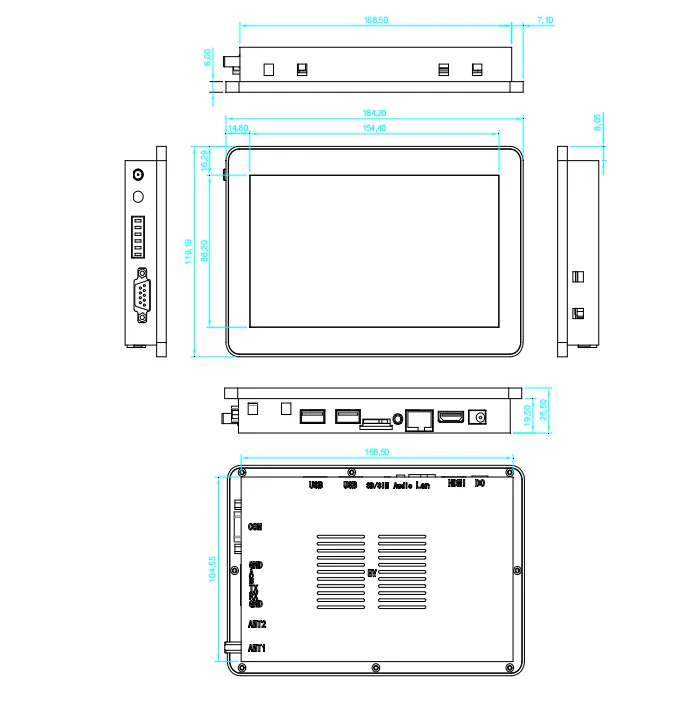

3, Product structure drawing

Product Parameters

Display parameters

Parameters	Data	Instructions
Display size	7 inch	16:9
Resolution	1024*600
Colors	16.7M	-
Display size	154.4(H)*86.2(W)mm	-
Backlight brightness	300-1000 nit	The brightness can be adjust by software
Backlight lifetime(Hrs)	50000Hrs	LED backlight
Viewing direction(CR>10)	All view direction

Touch type	Capacitive touch panel	Support single or 5 point touch
Working life	Single point can affordable ≥50 million times
Response time	8ms
Case size	184.2119.1925.5mm

Hareware parameters

CPU	RK3568 4 cores 64-bit Cortex-A55, maximum main frequency 2.0Ghz.
Memory	LPDDR4X 1GB/2GB/4GB/8GB (optional), standard version 2G
Storage	EMMC 8G/16/32G/64G/128GB (optional), standard version 16G
GPU	ARM G52 2EE support OpenGLES 1.1/2.0/3.2,OpenCL 2.0,Vulkan 1.1
WIFI	2.4 GHz
Sim Bluetooth	BT 4.0
Operation system	Android 11
Others	Support RTC real-time clock, ,timing switch
Language	Chinese, English, French, German, Italian, Japanese, Korean, Russian, Spanish, Polish, Czech and many other languages.

Interface parameters

Item name	Content
Power interface	1*DC 2.1, support width voltage 12v-36v power supply
USB	1USB 3.0/ 1USB 2.0; 4* built-in USB socket
TF card	1*TF card with standard interface
SIM Card	1* SIM card standard interface, support a variety of standards (depends on 3G/4G module)
HDMI	1* HDMI, support HDMI data transfer, the maximum support 4K
Net interface	1* LAN, 10M/100M adaptive ether
Audio/video output	Support left and right channel output, built-in dual 8R/5 power amplifier
Reset key	Support (1* UBOOT)
COM	2* RS232 (optional RS485, TTL)
WIFI Antenna	1* Wifi antenna

Reliability parameters

Working temperature	-20°C~70°C
Storage temperature	- 30°C~80°C
Relative humidity	Humidity: 95%, Temperature:50℃
Vibration protection	10Hz-50Hz-10Hz Amplitude 1.5mm X,Y,Z each 3H
Front waterproof rating	The front panel can reach IP65 protected rating

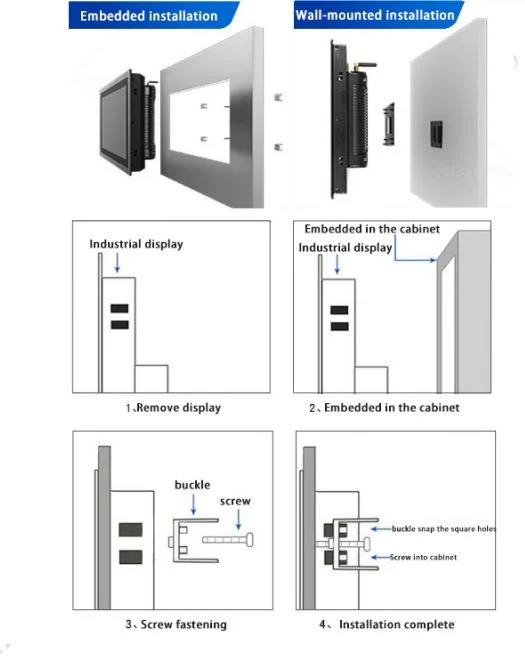

Use instruction

.png
