Simplify Your Smart Terminal Design with HYA215‑M07 21.5‑inch Android Display Solution

Shenzhen Huayuan Display Launches HYA215‑M07, 21.5‑inch Android All‑in‑One Display Solution for Multi‑sector Smart HMI

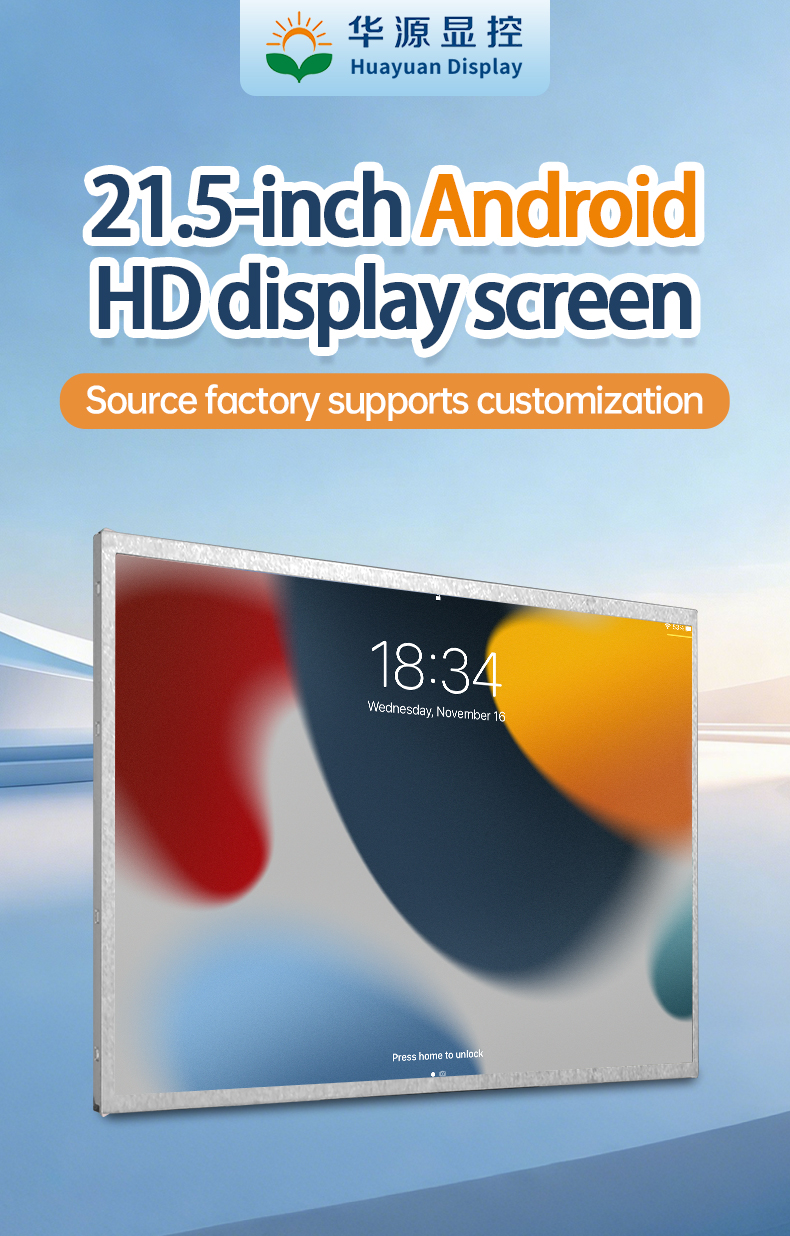

SHENZHEN, China — Shenzhen Huayuan Display Control Technique Co., Ltd. announces the release of HYA215‑M07, a complete 21.5‑inch Android‑powered display solution, combining CSOT 21.5‑inch FHD open‑cell panel and ZC‑H133M Android mainboard. Delivering high‑definition visual performance, abundant peripheral interfaces and stable Android operating environment, the product targets embedded human‑machine interaction projects for smart city, smart manufacturing, medical, education and AI robot industries.

The HYA215‑M07 adopts CSOT a‑Si TFT LCD open‑cell with 1920×1080 Full‑HD resolution, rendering up to 16.7M colors (6‑bit + FRC). Typical contrast ratio reaches 1300:1 with ultra‑wide viewing angle of 89° both horizontally and vertically. The anti‑glare polarizer features 3H surface hardness. The transmissive normally‑black panel connects via 2‑channel LVDS. It works with matched LED backlight unit at 250 cd/㎡, with LED lifetime up to 30 000 hours for commercial and industrial continuous operation scenarios.

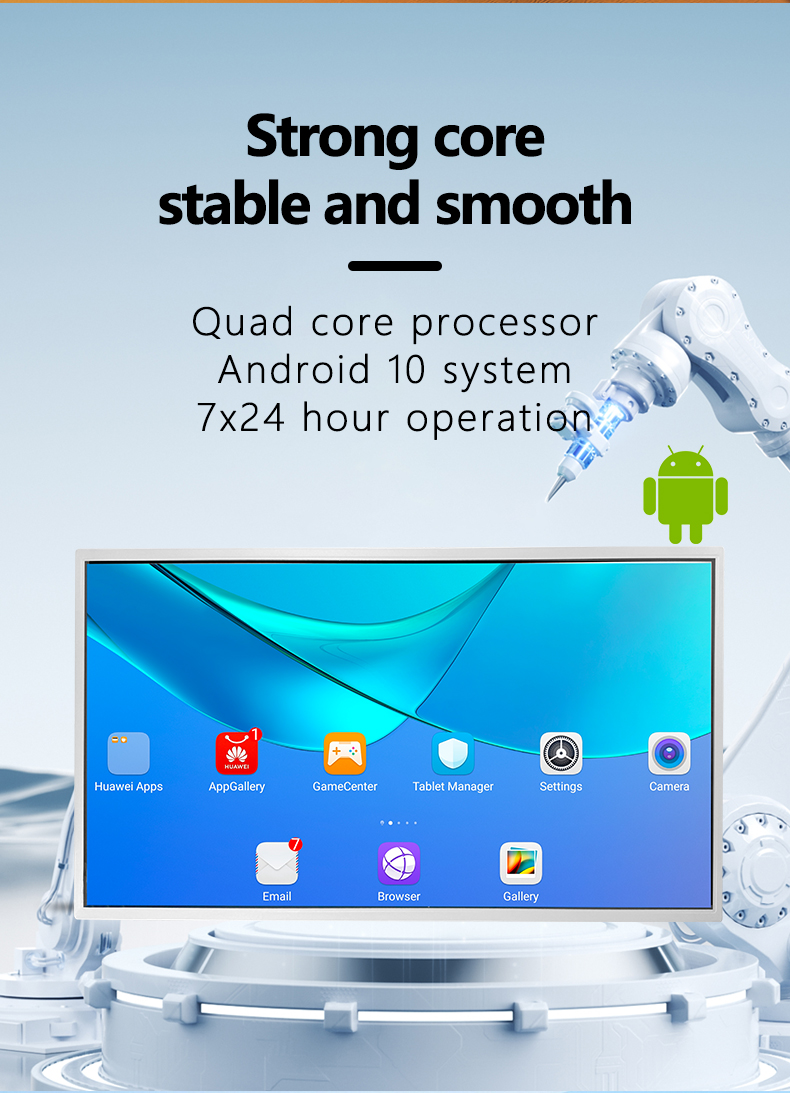

Powered by Allwinner A133 quad‑core Cortex‑A53 CPU (up to 1.5 GHz) and Imagination GE8300 GPU, the ZC‑H133M mainboard runs Android 10. RAM options:1G/2G/4G; eMMC storage:8G/32G/64G optional. It supports hardware 4K@30fps H.265 / H.264 decoding, compatible with mainstream video and image formats. Optimized for 7×24‑hour unattended operation for kiosk and industrial deployments.

Rich multi‑media and industrial I/O are integrated: LVDS / EDP / MIPI display outputs, dual UART configurable to TTL or RS232, GPIO expansion, I2C projected capacitive touch interface, 10/100Mbps Ethernet, Wi‑Fi, optional BT5.1 and USB‑4G module. It is equipped with five USB2.0 ports, RTC for scheduled power on/off, dual‑channel 8Ω/5W audio amplifier, IR remote and status LED indicator. Firmware update supports local USB, OTA wireless and PC‑side upgrade. PCBA dimension is 89.0 mm ×73.0 mm, DC 9‑14V power input. Operating temperature ranges from 0℃‑70℃, humidity 10%‑90% non‑condensing. Extended wide‑temperature components are available upon request.

The whole set passes full reliability validation including high/low temperature, humidity, thermal shock, vibration and long‑term lighting test and complies with RoHS. Complete mechanical drawings, pin definition documents and packaging specifications are provided to accelerate customers’ end‑product integration.

Target Application Markets

‑ Smart City: EV charging station terminals, self‑service kiosks ‑ Smart Factory: CNC machine HMI, factory automation panels ‑ Smart Home: Household central control terminals ‑ Smart Medical: Medical procedure operation terminals ‑ Smart Education: Conference & education interactive machines ‑ AIoT: Hotel service robots, facial payment terminals, smart retail & security display terminals

Sample evaluation and volume order inquiries for HYA215‑M07 are now available.

About Shenzhen Huayuan Display Control Technique Co., Ltd.

Huayuan Display focuses on R&D and manufacturing of industrial TFT‑LCD modules and Android integrated display solutions, supplying reliable display hardware for industrial, energy, medical, digital signage and IoT worldwide.
