All‑in‑One 7" TFT‑LCD Module Brings Wi‑Fi 6 & BLE 5.4 to Industrial HMI Scenarios

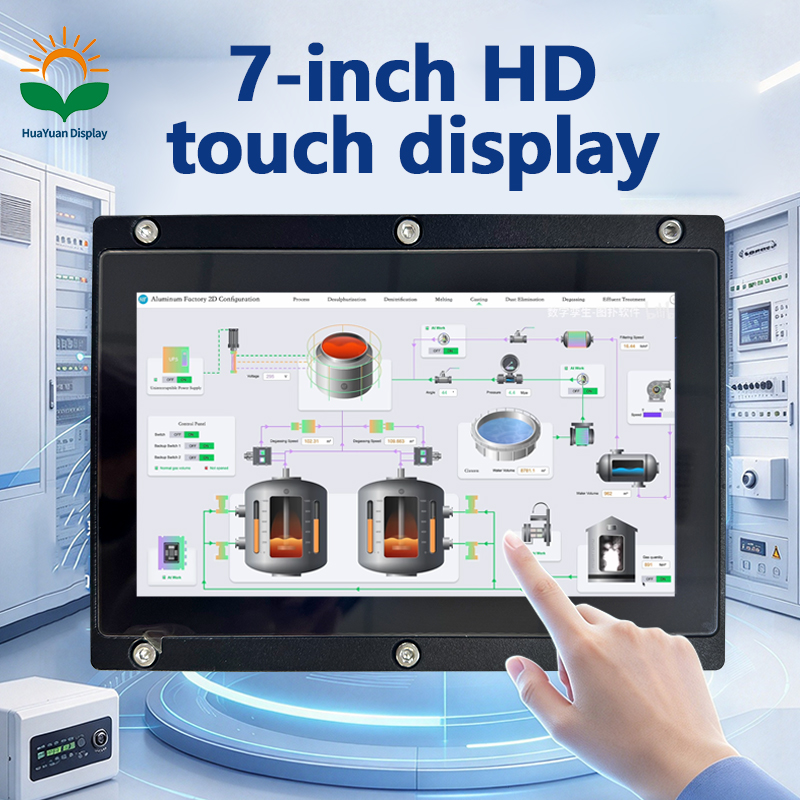

Shenzhen Huayuan Display Control Technique Co., Ltd. Unveils HYS80480‑BK07R01, 7‑inch Intelligent TFT‑LCD Module for Industrial HMI and IoT Applications

SHENZHEN, China — Shenzhen Huayuan Display Control Technique Co., Ltd., a professional manufacturer of industrial display solutions, announces the release of its new intelligent TFT‑LCD module, model HYS80480‑BK07R01, an all‑in‑one human‑machine‑interface unit built for industrial automation, charging pile, smart home and diverse IoT embedded projects.

The HYS80480‑BK07R01 adopts the Beken BK7258 multi‑core multimedia SoC as its main controller, running Huayuan’s self‑developed intelligent screen firmware based on BK7258‑AVDK‑SMP platform. The SoC runs at up to 480 MHz clock frequency, integrated with 640 KB SRAM, 16 MB PSRAM and 8 MB Flash memory. It natively supports Wi‑Fi 6 and Bluetooth 5.4 BLE, bringing flexible wireless connectivity for modern smart terminals博通集成B....

This 7.0‑inch TFT display delivers 800 × 480 resolution, supporting 65K‑color rendering with 300 cd/m² LED backlight brightness. The module comes with integrated touch capability, enabling intuitive touch operations including text input, key‑value feedback, value adjustment and pop‑up menu triggering. No heavy‑duty programming work is required for basic HMI deployment, greatly shortening customers’ product development cycles.

For industrial‑grade reliability, the module supports wide operating temperature from ‑20 °C to +70 °C, storage temperature ranging ‑30 °C ~ +80 °C, and reaches IP53 protection rating. It accepts DC input voltage 8‑24 V with reverse‑polarity power protection, with typical power consumption of 5.5 W (12 V, 450 mA). Physical dimension of the full assembly is 197.1 × 132.2 × 30 mm.

Rich communication and peripheral interfaces are onboard: RS232 / RS485 serial ports with baud‑rate up to 921600 bps, SD‑card slot for FAT32 file system (for firmware, font and image resource upgrade), RTC real‑time clock, buzzer alarm and audio speaker interface. Multiple character encoding standards are covered, including ASCII, GBK, GB2312 and BIG5 to satisfy multi‑language display requirements for global deployment.

“The HYS80480‑BK07R01 combines display, touch, wired serial communication and Wi‑Fi/BLE wireless connectivity into one compact enclosed unit. It removes the complexity of matching separate mainboard, display and touch components for system integrators,” commented the product manager of Huayuan Display. “Engineers can focus on application logic rather than low‑level display driver development.”

Target Application Fields

• EV charging piles and charging station control terminals
• Industrial automation control panels and equipment HMI
• Smart home central control panels
• IoT embedded monitoring terminals
• Transportation auxiliary control systems
• General‑purpose embedded human‑machine interaction devices

The HYS80480‑BK07R01 intelligent TFT‑LCD module is available for sample evaluation and volume order inquiries.

About Shenzhen Huayuan Display Control Technique Co., Ltd.

Huayuan Display focuses on R&D, manufacturing and supply of industrial‑grade TFT‑LCD display and touch modules, delivering reliable display hardware solutions for industrial, energy, smart building and IoT industries worldwide.
