NEW PRODUCT Rockchip RK3568 Cortex-A5 12.1inch tablet

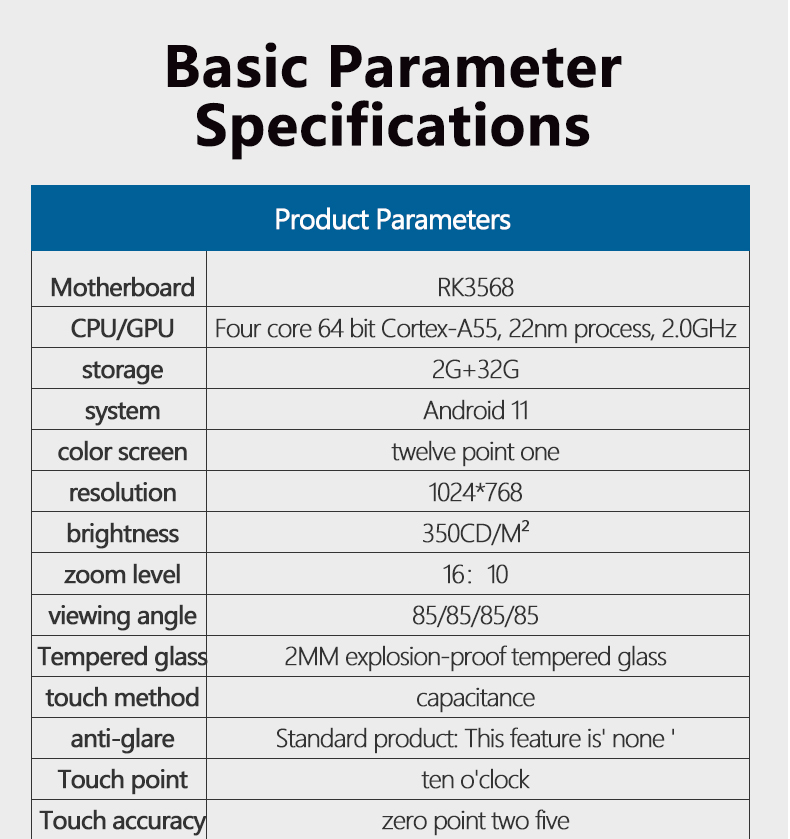

The HYA121-B02 is equipped with the Rockchip RK3568 Cortex-A55 quad-core processor, running on the Android system. With a main frequency of up to 2.0 GHz, it boasts outstanding performance. It also features an ARM Mali-G52 2EE GPU, supporting 4K and H.265 hardware decoding. Users can utilize Android apps to meet various personalized needs, such as serial port communication with external devices (e.g. RS232, RS485), as well as remote data transmission via WIFI/4G, Ethernet, and playing advertisements. Communicating with external devices makes it the ideal choice for human-computer interaction and industrial control projects.

High definition. Supports decoding of up to 4K, and supports cropping screens of various resolutions.
Comprehensive functions: Supports landscape and portrait screen playback, video split-screen, scrolling subtitles, timed switching, and USB data import, etc.

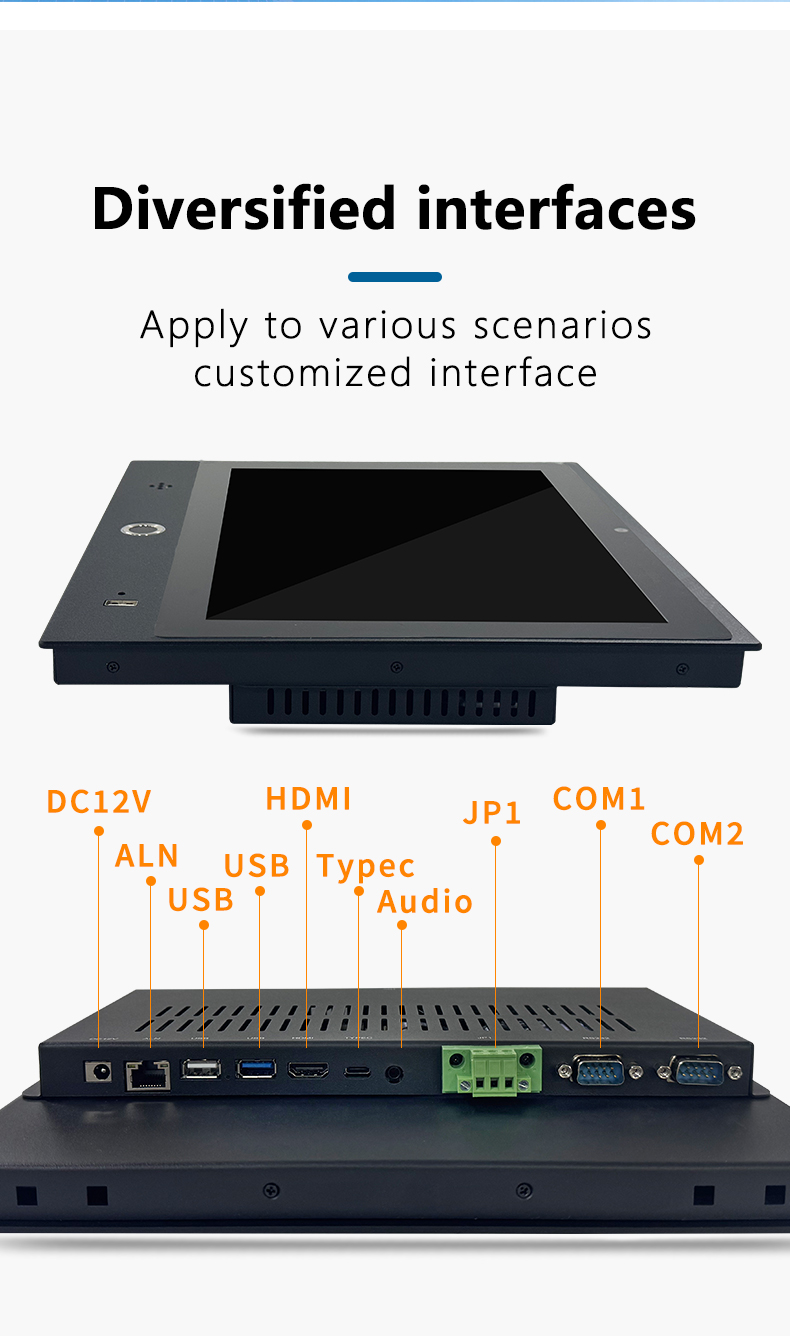

Rich interfaces, supporting 1 Micro USB OTG port, 4 USB HOST standard A ports, 1 RS232 serial port, 1 TTL serial port, HDMI interface, 1 10/100M Ethernet port, built-in 2.4G WiFi, Bluetooth 4.2, and 4G internet access.
Stereo high-fidelity audio output
Supports 1024*768 full HD video files and pictures, music, etc.

Supports free split-screen mode. With PC widget software, you can freely divide the screen area and add files.

Remote software upgrade function
 The screen can be rotated 180 degrees, changing the relationship between the top and bottom perspectives. Videos and images will also rotate accordingly. Embedded installation
